Description

Product Description

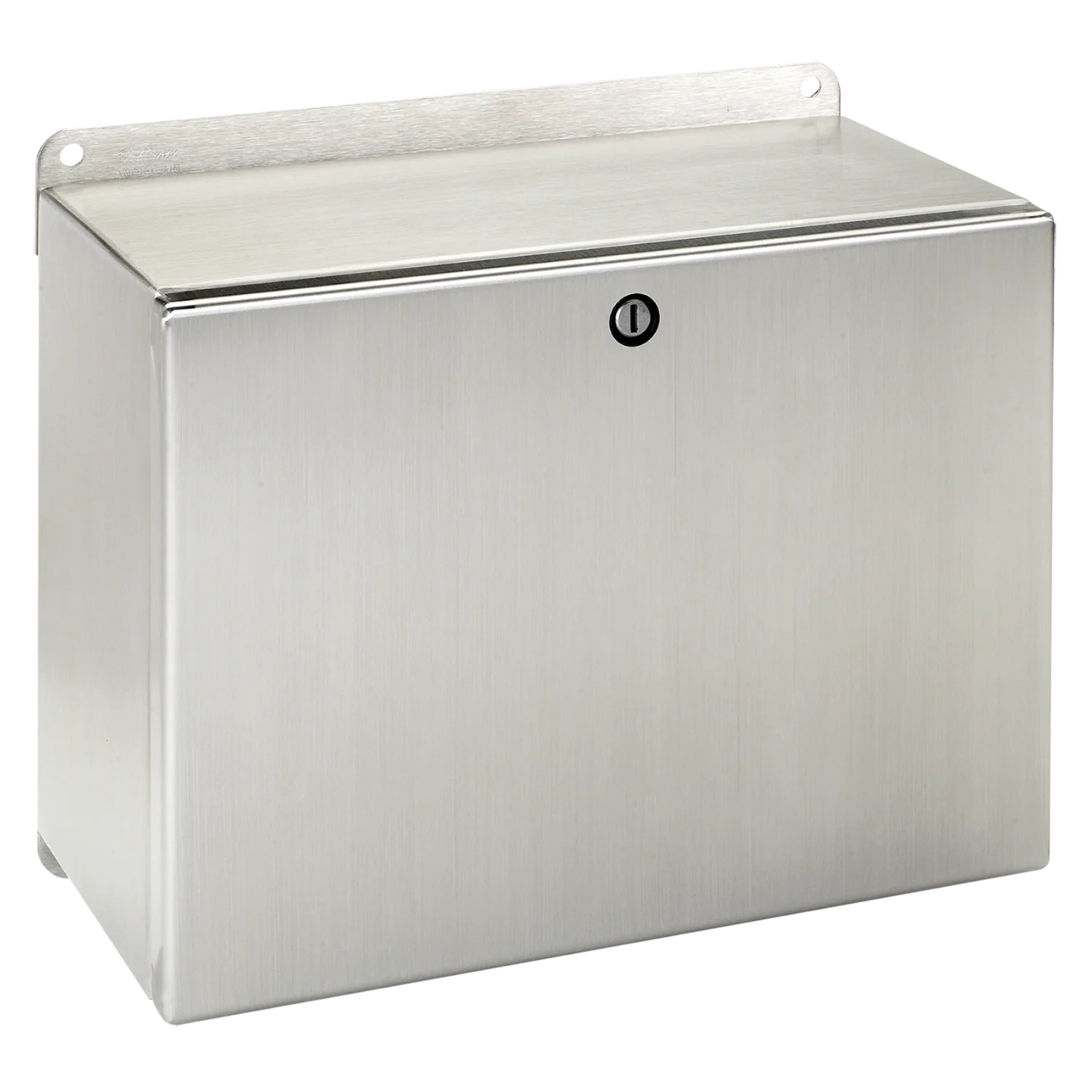

The HOFFMAN LWC234616SS Inline Landscape Enclosure is designed for applications requiring electrical components to be mounted across the full width of the enclosure. Its landscape orientation and full-width mounting brackets offer maximum mounting flexibility. It features continuously welded seams, an external formed body flange trough, and a large perimeter body opening.

  • Full width bracket for mounting flexibility
  • Seams continuously welded and ground smooth
  • External formed body flange trough

Product Highlights

The enclosure features a hinged door with removable hinge pins, a self-grounding quarter-turn latch system with a double seal, and a clear polycarbonate window mounted flush with the door surface.

Product Information

Standard Information

  • Brand: HOFFMAN
  • Manufacturer Part Number: LWC234616SS
  • Country of Origin: MX - Mexico
Technical Specifications
Article Number
11044
Height
9.06in
Width
18.11in
Depth
6.1in
Material
Stainless Steel 304
Finish
Brushed #4
Body Thickness
14ga
Door Thickness
16ga
Clear Space Above Panel
5.51in
Window Size
16.11in
Mounting Hole Size
16.99in
Mounting Studs
16.36in
Cover Style
Window
UPC
783510110444
Bulletin Number
A54S
Applications
For Controls and Drives, Corrosive Environments, Hygienic Environments
Cover Type
Hinged, Screw
Gauge
1.98 mm
IP Rating
66
Mounting Type
Wall
Standard
CSA File Number 42186: Type 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 4X, 12,UL 508A Listed; Type 4, 4X, 12; File Number E61997
Type
Stainless Steel Wall Mounted Industrial Enclosures
Brand
nVent Hoffman
Sub Brand
Inline
12-Digit UPC
783510110444
Color
Unpainted
Product UPC
78351011044
Length
9.06 Inch
ECCN
EAR99
UNSPSC
39121324
Cable Entry
Top or Bottom
Door Style
Window Door
Enclosure Cover Type
Hinged Cover
Latch
Quarter-turn
NEMA Rating
NEMA 4X/IP66
Series
A54S
Lock
Quarter Turn Latch
Country of Origin
Mexico
BABA Compliant
No
Primary brand
Hoffman
Manufacturer product status
Commercialized
UPC code
78351011044
Manufacturer description
Inst.Box - Typ4X - Hinged Win/Cvr
