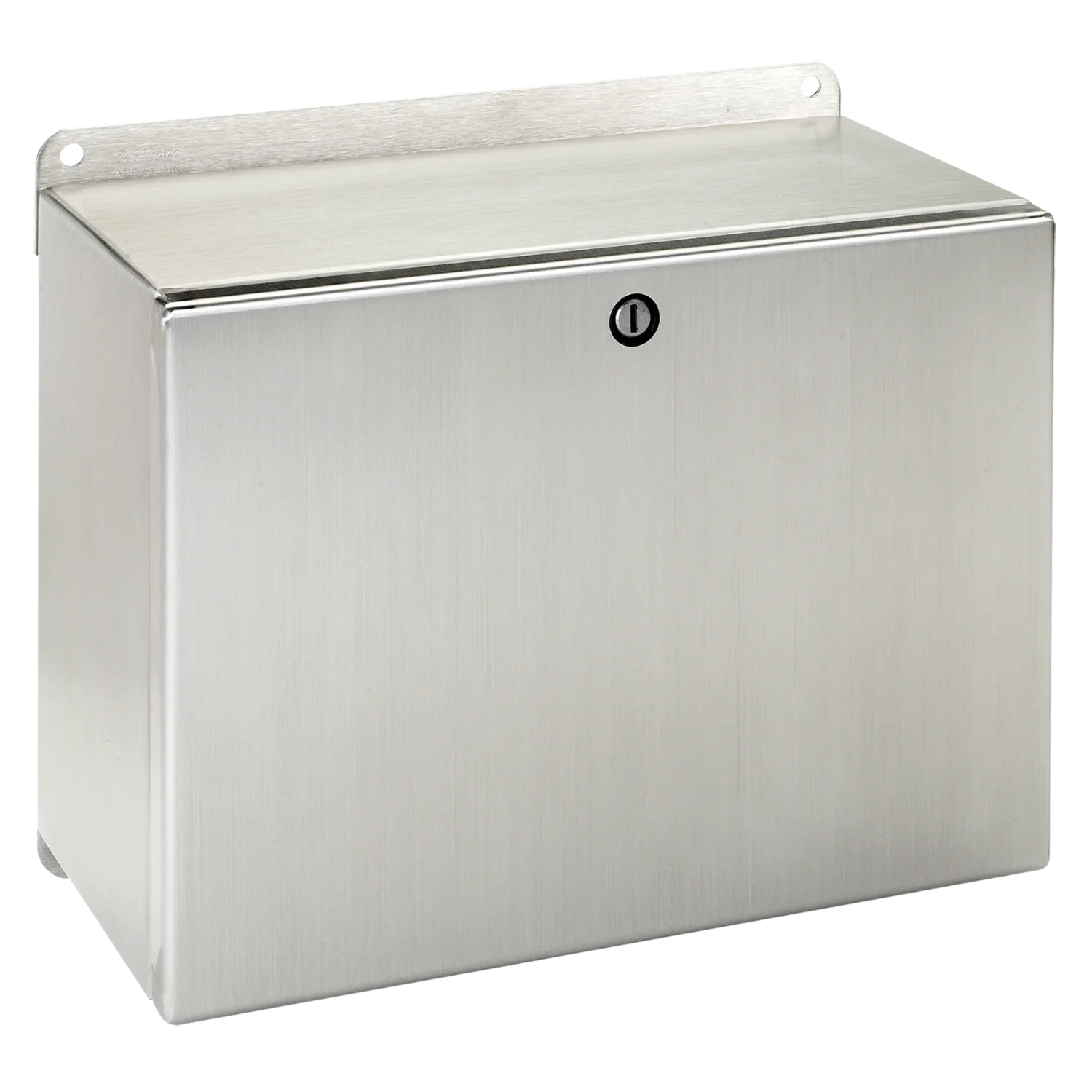

Hoffman LHC236016SS InLine Landscape Enclosure 230x600x155mm

Product Description

The HOFFMAN LHC236016SS InLine Landscape Enclosure is designed for applications requiring electrical components to be mounted across the full width of the enclosure. Its landscape orientation allows for maximum mounting flexibility with full-width mounting brackets that can be drilled anywhere along their length.

• Full width bracket for mounting flexibility
• Seams continuously welded and ground smooth
• External formed body flange trough
• Large perimeter body opening
• Mounting brackets are spot-welded to top and bottom of enclosure

Product Highlights

The Hoffman InLine Landscape enclosure features continuously welded seams, external formed body flange trough, and a hinged door with removable hinge pins.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: LHC236016SS
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 11038
• Height: 9.06 in.
• Width: 23.62 in.
• Depth: 6.1 in.
• Material: Stainless Steel 304
• Finish: Brushed #4
• Body Thickness: 14ga
• Door Thickness: 16ga
• Clear Space Above Panel: 5.51in
• Cover Style: Solid
• UPC: 783510110383
• Bulletin Number: A54S
• Series: LHC Series
• Standard: UL 508A, CSA C22.2
• Mounting Type: Wall
• Type: Junction Box
• Use With: Corrosive Environments
• Cable Entry: Top or Bottom
• Enclosure Cover Type: Hinged Cover
• Latch: Quarter-turn
• ECCN: EAR99
• IP Rating: 66
• Gauge: 14 ga Body, 16 ga Cover
• Brand: HOFFMAN ENCLOSURES
• Sub Brand: Inline
