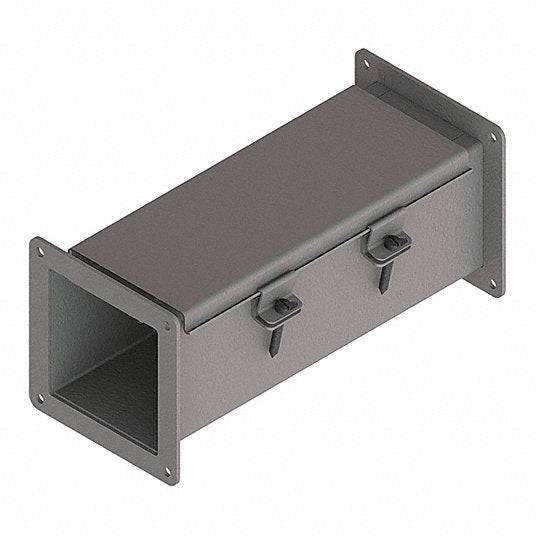

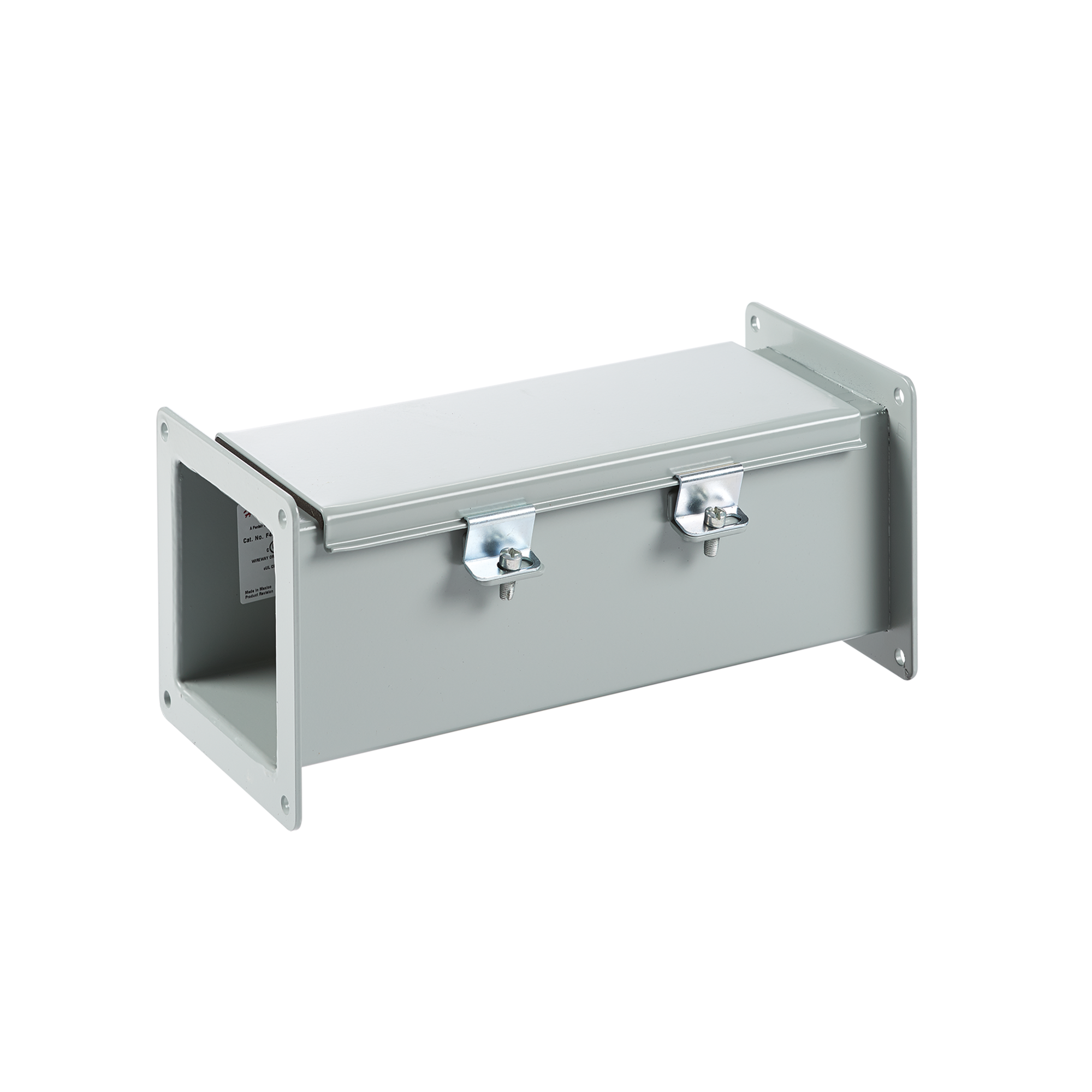

Hoffman F44W12 Straight Section Feed-Through 4x4x12

Product Description

The HOFFMAN F44W12 straight section feed-through is designed for enclosing wire and cable in wireway runs. Its dust protection features makes it suitable for a broad range of industrial applications. The traditional closed-loop design has an opening on one side for easy access to wires and cables. It is gray, steel and powder coated.

• Ideal for simple installations
• Feed-thru design
• Dust-tight

Product Highlights

The Hoffman straight section feed-through is commonly used in areas exposed to dust and connects with multiple wireway sections for long, simple runs.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F44W12
• Country of Origin: Mexico

Technical Specifications

• IGCC: 5571
• Type: Straight Section
• Color: Gray
• Width: 4 in
• Finish: Powder Coated
• Height: 4 in
• Wireway: Feed-Through NEMA Type 12 Wireway
• Material: Mild Steel
• IP Rating: IP54
• Color Code: ANSI 61
• Application: Power Distribution
• NEMA Rating: 12 Indoor; dust-resistant
• Type Number: Type 12
• Family group: WIREWAY/ENCLOSURES
• Manufacturer: HOFFMAN
• Depth (Metric): 305 mm
• Depth (Imperial): 12 in
• WES Product code: 2650503130
• Protection Rating: NEMA Type 12
• Thickness (Metric): 1.9 mm
• Thickness (Imperial): 14 ga
• Article Number: 14200
• Thickness: 14ga
• Bulletin Number: F20
• Wireway Width: 4 in
• Wireway Height: 4 in
• Gauge: 14 ga
• Length: 12 in
• With Knockouts: No
• Cover Type: Hinged Cover with Quick-Release Latches
• Cover Locking Style: Screw Clamp
• Standards: CSA Certified; File No. 42184 Type 1; File No. E27524; IEC 60529; IP54; JIC Standards: EGP-1-1967 and EMP-1-1967; UL 870
• UNSPSC: 39121204
• Sub Brand: Hoffman
• IP/NEMA Rating: IP54, NEMA 12
• Model: Straight Section Feed-Through 4x4x12" w/ F44WN3 Nipple Wireway
• MPN: F44W12
• Country of Origin: United States
