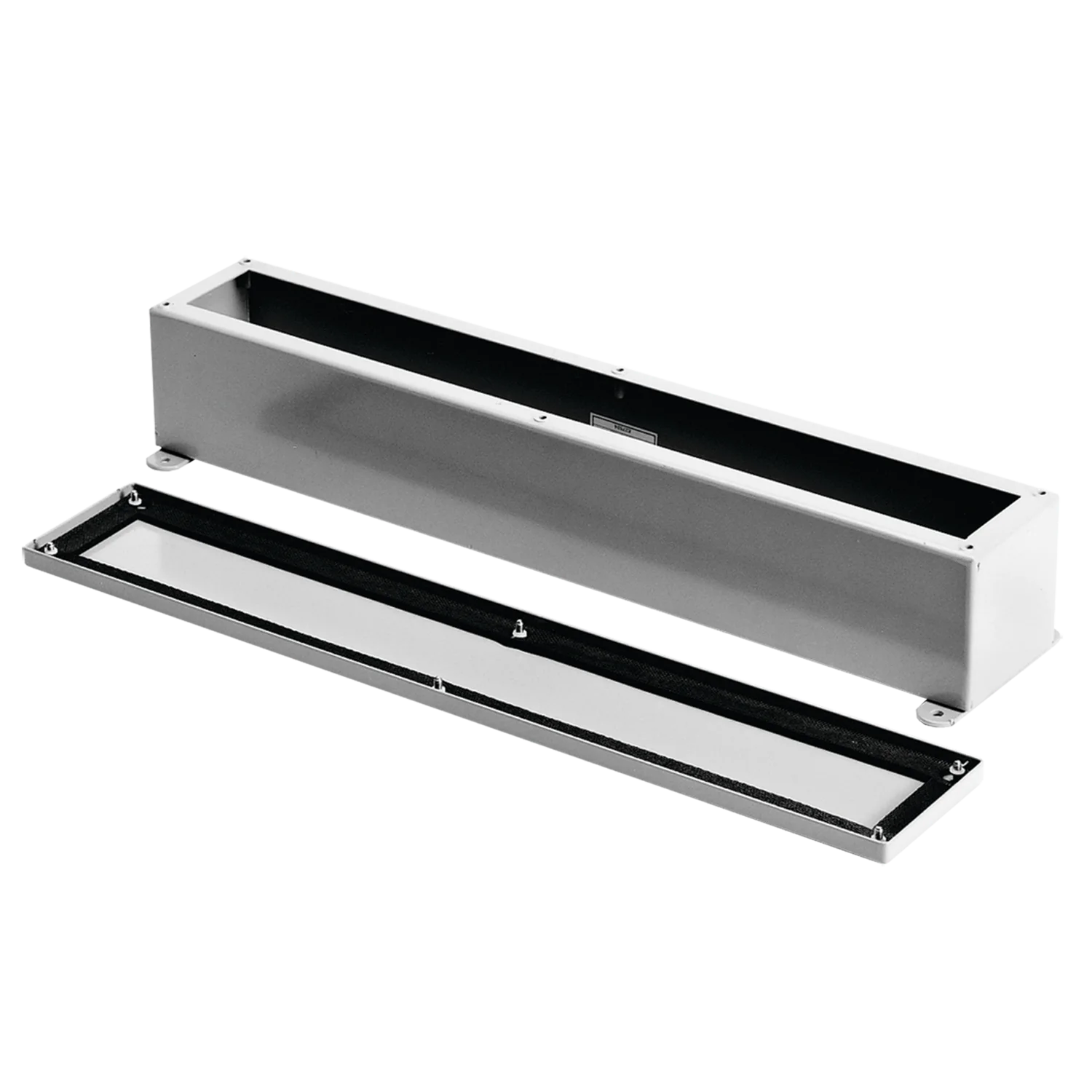

Hoffman F4430SC Screw Cover Wiring Trough Type 12, 4.00x4.00x30.00

Product Description

The HOFFMAN F4430SC screw-cover wiring trough, Type 12, protects wire and cable distribution, junctions, and terminations in moist or dirty applications. The ends and seams are continuously welded and ground smooth, without holes or knockouts. Captivated cover screws thread into sealed wells. Wiring troughs are finished with paint over plated surfaces.

• Ends and seams continuously welded and ground smooth; no holes or knockouts
• Captivated cover screws thread into sealed wells
• Oil-resistant gasket and adhesive

Product Highlights

Wiring trough protects cable distribution in moist or dirty environments. Features continuously welded and grounded seams, captivated cover screws, and oil-resistant gasket.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F4430SC
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 15390
• Type: Trough
• Height: 4in
• Width: 4in
• Depth: 30in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Fastener Quantity: 8
• UPC: 783510153908
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: F20SC
• UNSPSC: 39131714
• Approval: UL 870, CSA, JIC
• Knockouts: No
• Enclosure: NEMA 12, IP55
• Item: Wiring Trough
• Cover Type: Screw
• MPN: F4430SC
• Brand: HOFFMAN
• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Manufacturer: Hoffman Enclosures, Inc.
• Mounting Type: Screw
• Part Status: Active
• Wire Duct Type: Solid (Raceway), 2 Piece
• ECCN: EAR99
