Hoffman F22WE90 90 Elbow 2.50x2.50

Product Description

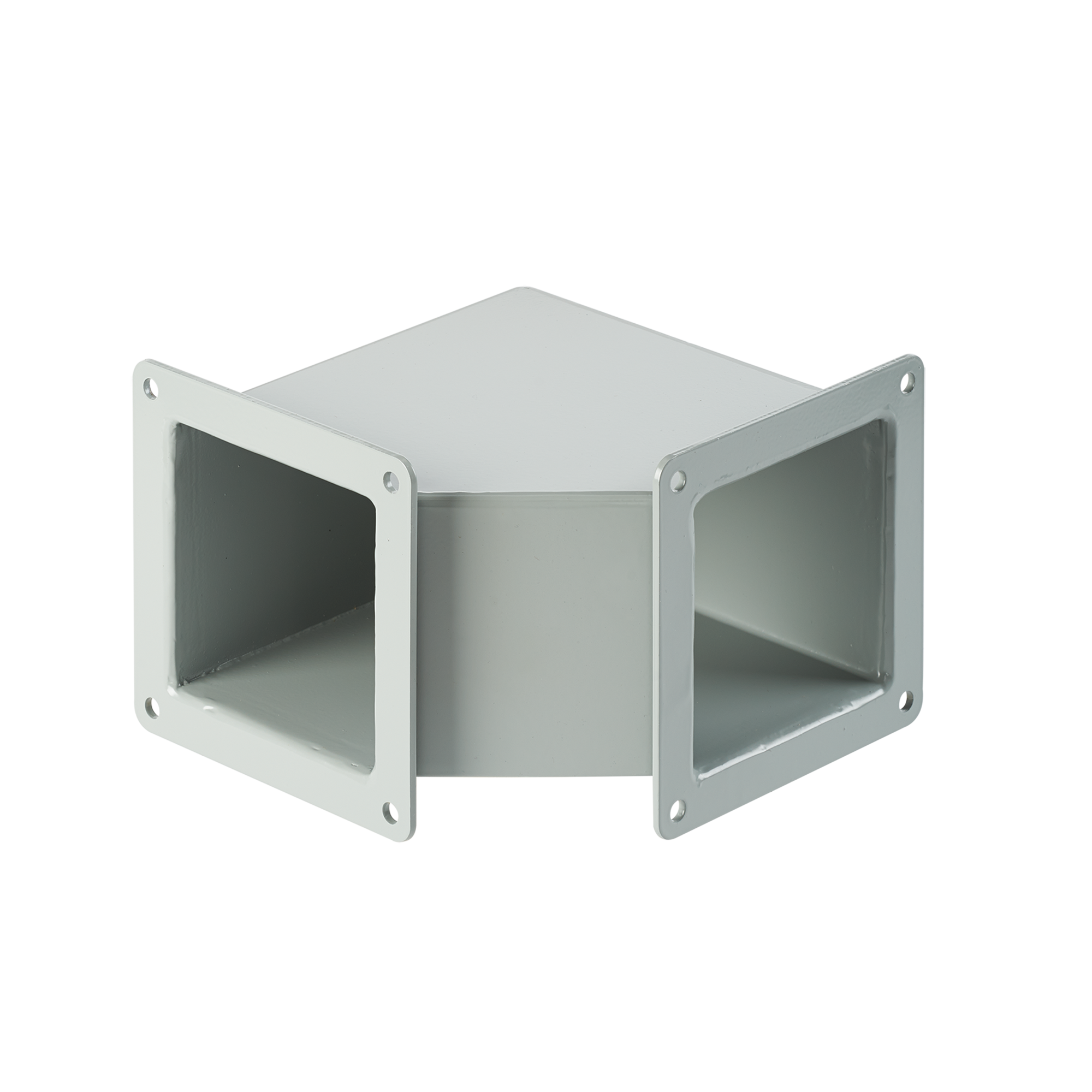

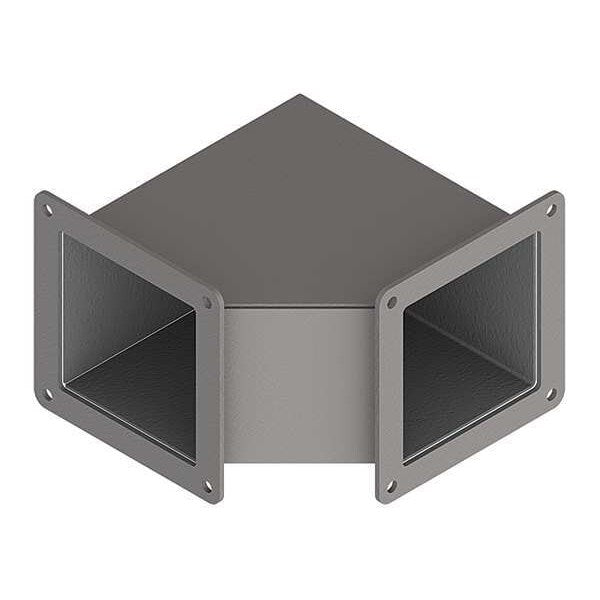

The HOFFMAN F22WE90 elbow is a 90-degree feed-through wireway, measuring 2.50x2.50 inches, constructed from gray, mild steel. It connects to other wireway sections and fittings, protecting wires and cables against dust in industrial environments. It is powder coated with an ANSI 61 color code and is suitable for power distribution applications.

• Used for continuous runs with 90-degree turns
• Connects to other wireway sections and fittings
• Protects wires and cables against dust

Product Highlights

The HOFFMAN F22WE90 is a durable steel elbow that facilitates 90-degree wireway turns while providing dust protection.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F22WE90
• Country of Origin: Mexico

Technical Specifications

• Type: Elbow
• Color: Gray
• Width: 2.5 in
• Finish: Powder Coated
• Height: 2.5 in
• Material: Mild Steel
• IP Rating: IP54
• Color Code: ANSI 61
• Application: Power Distribution
• NEMA Rating: 12 Indoor; dust-resistant
• Type Number: Type 12
• Manufacturer: HOFFMAN
• Protection Rating: NEMA Type 12
• Thickness: 14 ga
• Article Number: 14070
• Bulletin Number: F20
• Length: 6.6 Inch
• Applications: Power Distribution
• Color Coding: ANSI 61
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Gauge: 14 ga
• For Wireway Width x Height: 2 1/2 in x 2 1/2 in
• For Wireway Height: 2 1/2 in
• For Wireway Width: 2 1/2 in
• With/Without Knockouts: No
• NEMA Enclosure Type: 12
• Painted Steel: Painted
• For Use With: F22 Series Wireways
• Cover Type: Non-Removable Cover, Feed-Thru
• Function: Used to Change The Direction of A Wireway Run
• Standards: CSA EMP-1-1967, File No. 42184 Type 1, File No. E27524, IEC 60529, IP54, JIC EGP-1-1967, NEMA/EEMAC 12, UL 870
• Includes: Gaskets, Screws
• With Knockouts: No
• ECCN: EAR99
• UNSPSC: 39131710
