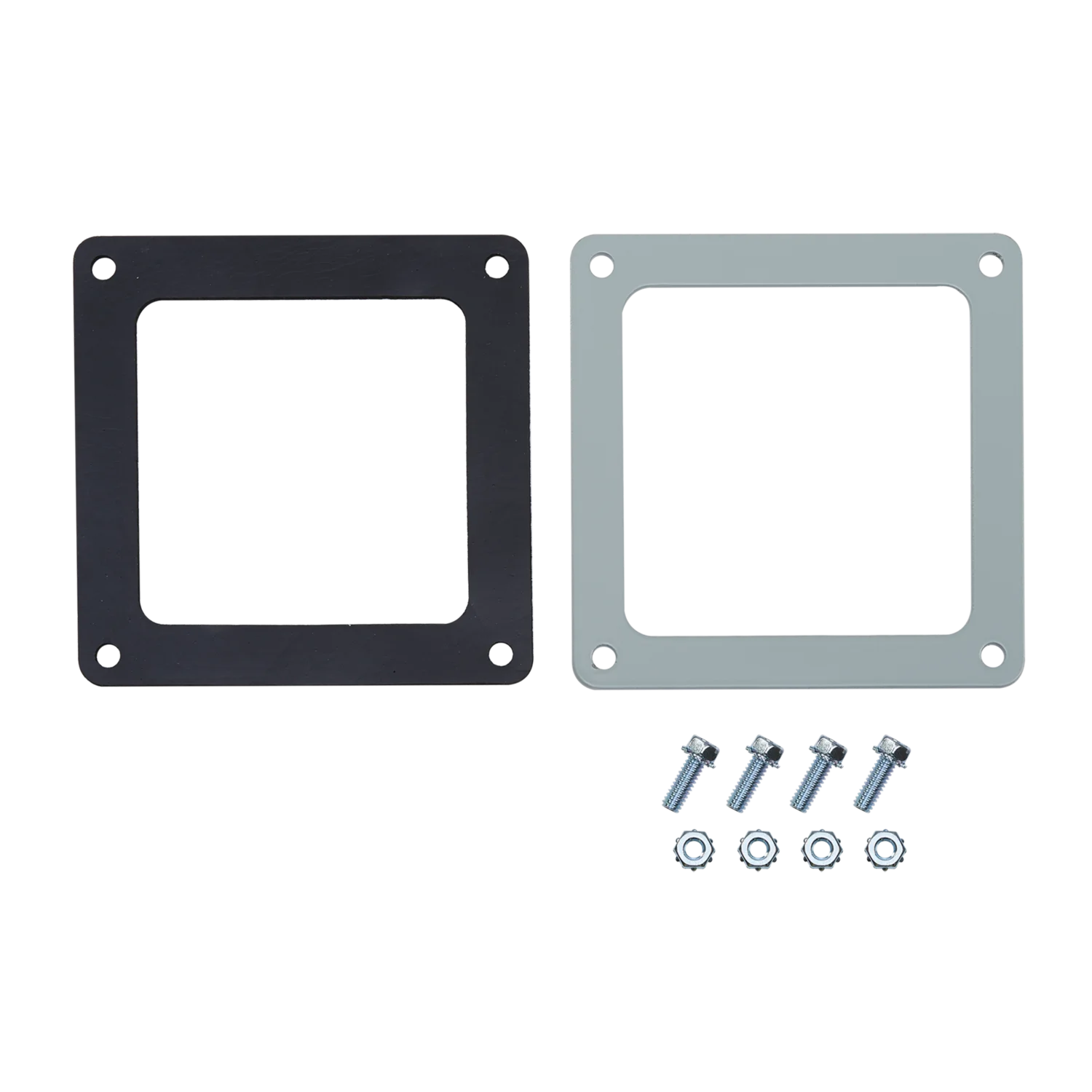

The HOFFMAN F22WB feed-through box connectors are used inside enclosures when wireways are connected to ensure a tight seal. It connects to other wireway sections and fittings and protects wires and cables against dust in a broad range of industrial applications.
Feed-Through Box Connectors are used inside enclosure when wireway is connected to ensure a tight seal
Connects to other wireway sections and fittings
Protects wires and cables against dust in a broad range of industrial applications
Product Highlights
The Hoffman F22WB box connector is made of steel with a gray, powder-coated finish and is NEMA 12 rated.
Product Information
Standard Information
Brand: HOFFMAN
Manufacturer Part Number: F22WB
Country of Origin: Mexico
Technical Specifications
Article Number
14160
Type
Box Connector
Height
2.5in
Width
2.5in
Material
Steel
Finish
Powder Coated
Color
Gray
Color Code
ANSI 61
Thickness
14ga
UPC
783510141608
Standard Packaging Quantity
1
Packing Quantity
1
MFR #
F22WB
Length
3 7/8 in
For Wireway Height
2 1/2 in
For Wireway Width x Height
2 1/2 in x 2 1/2 in
Length (Straight Wireway)
3 7/8 in
For Wireway Width
2 1/2 in
NEMA Enclosure Type
12
For Use With
Hoffman F22 Series Wireways
NEMA Rating
12
Standards
CSA EMP-1-1967, EEMAC 12, File No. 42184 Type 1, File No. E27524, IEC 60529, IP54, JIC EGP-1-1967, NEMA, UL 870
Function
When Wireway Enters An Enclosure, A Box Connector Should Be Used On The Inside of The Enclosure to Ensure A Tight And Stable Seal
