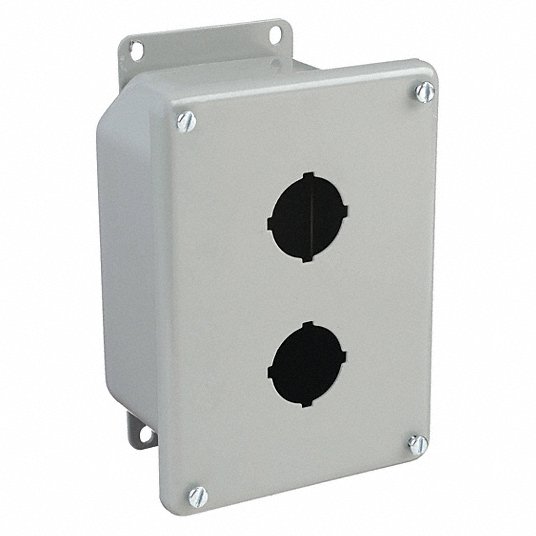

Hoffman ED2PB Drawn Pushbutton Enclosures 2PBx30.5mm

Product Description

The HOFFMAN ED2PB drawn pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm 4-way pushbuttons and switches. These enclosures have no welded seams or sharp corners. They feature cover screws outside the gasket sealing surface and external welded-on mounting brackets for easy installation.

• Drawn enclosure
• No welded seams or sharp corners
• Cover screws outside gasket sealing surface

Product Highlights

The HOFFMAN ED2PB is ideal for industrial control applications, offering robust protection and easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: ED2PB
• Country of Origin: Mexico

Technical Specifications

• Article Number: 57710
• Height: 5.75in
• Width: 4in
• Depth: 2.75in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 16ga
• Hole Size: 1.2in
• Hole Quantity: 2
• Mounting: 6.25 x 2.38in
• Cover Style: Flat
• UPC: 783510577100
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: PB1
• Manufacturer Part Number: ED2PB
• Environments & Applications: Washdown-Corrosion-Resistant
• Includes: Cover Screws; Grounding Stud; Oil Resistant Gasket
• Mounting Style: External Feet
• NEMA Rating: NEMA 12, NEMA 13, NEMA 4
• Number of Columns: 1
• Overall Depth: 2-3/4 in
• Overall Height: 5-3/4 in
• Overall Width: 4 in
• Panel Mounting Hole Diameter: 30mm
• Standards: CSA C22.2 No. 94 File No. E61997; cUL; UL 508A File No. E61997
• For Push Buttons and Switches: For Push Buttons and Switches
• Size: 2PB x 30.5mm
• Type: 2-Hole, Drawn
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Product UPC: 78351057710
• Used With: 30.5 mm Push Button
• Length: 6-3/4 Inch
• Approximate Height: 6 in
• Approximate Width: 4.00 in
• IP Rating: IP66
• Series: Drawn Enclosures Series
• UNSPSC Code: 31260000
• Unit of Measure: EA
• Manufacturer: nVent HOFFMAN
• Special Features: Grounding Nut/Bonding Point, Oil-resistant gasket
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• Cable Entry: No Cable Entry
• Suitable For: Interior, Exterior, Wall
• Control Style: Push Button
• Model: ED2PB
• Item Height: 2 in
• Number of Phases: 1
• Dimensions: 3.00 in H X 6.75 in W X 4.75 in L
