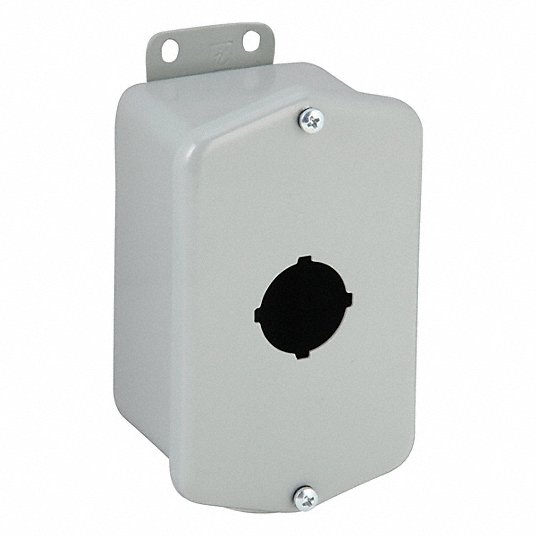

Hoffman ED1PB1 Drawn Pushbutton Enclosures Type 4, 1PB x 30.5mm

Product Description

The HOFFMAN ED1PB1 drawn pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm 4-way pushbuttons and switches. These enclosures feature no welded seams or sharp corners. These control stations without operators have precut openings for installing 30mm operators. Drawn Pushbutton Enclosures are designed to hold 30.5-mm or 22.5-mm 4-way pushbuttons and switches.

• Drawn enclosure
• No welded seams or sharp corners
• Cover screws outside gasket sealing surface

Product Highlights

Drawn pushbutton enclosures designed for pushbuttons and switches with external welded-on mounting brackets for easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: ED1PB1
• Country of Origin: Mexico

Technical Specifications

• Article Number: 57690
• Height: 4.5in
• Width: 2.88in
• Depth: 2.62in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 16ga
• Hole Size: 1.2in
• Hole Quantity: 1
• Mounting: 5.00 x 1.12in
• Cover Style: Flat
• UPC: 783510576905
• Bulletin Number: PB1
• Brand: HOFFMAN
• Manufacturer Part Number: ED1PB1
• Compatible Conduit Size - Maximum: No Conduit Entrance Holes
• Environments & Applications: Washdown-Corrosion-Resistant
• Includes: Cover Screws; Grounding Stud; Oil Resistant Gasket
• Mounting Style: External Feet
• NEMA Rating: 4
• Number of Columns: 1
• Overall Depth: 2-5/8 in
• Overall Height: 4-1/2 in
• Overall Width: 2-7/8 in
• Panel Mounting Hole Diameter: 30mm
• Standards: CSA C22.2 No. 94 File No. E61997; cUL; UL 508A File No. E61997
• UNSPSC: 39121512
• Type: Enclosure Box
• Control Style: Push Button
• Model: ED1PB1
• Country of Origin: Mexico
• Applications: For Push Buttons and Switches
• Size: 1PB x 30.5mm
• Standard: CUL Listed Per CSA C22.2 No. 94; Type 4, 12, 13; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12, 13; File No. E61997
• 12-Digit UPC: 783510576905
• Product UPC: 78351057690
• Used With: 30.5 mm Push Button
• Length: 5-1/2 Inch
• Hole Size (mm): 30.5 mm
• Thickness (mm): 1.52 mm
• IP/NEMA Rating: IP66, NEMA 4
• Diameter: 30.500 mm
• Color: Gray
