Hoffman E9PBX Extra-Deep Pushbutton Enclosure 9PB x 30.5mm

Brand: NVENT
SKU: E9PBX
Availability: In Stock

Ships same day if ordered by 12 pm
$300.52
$300.52
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

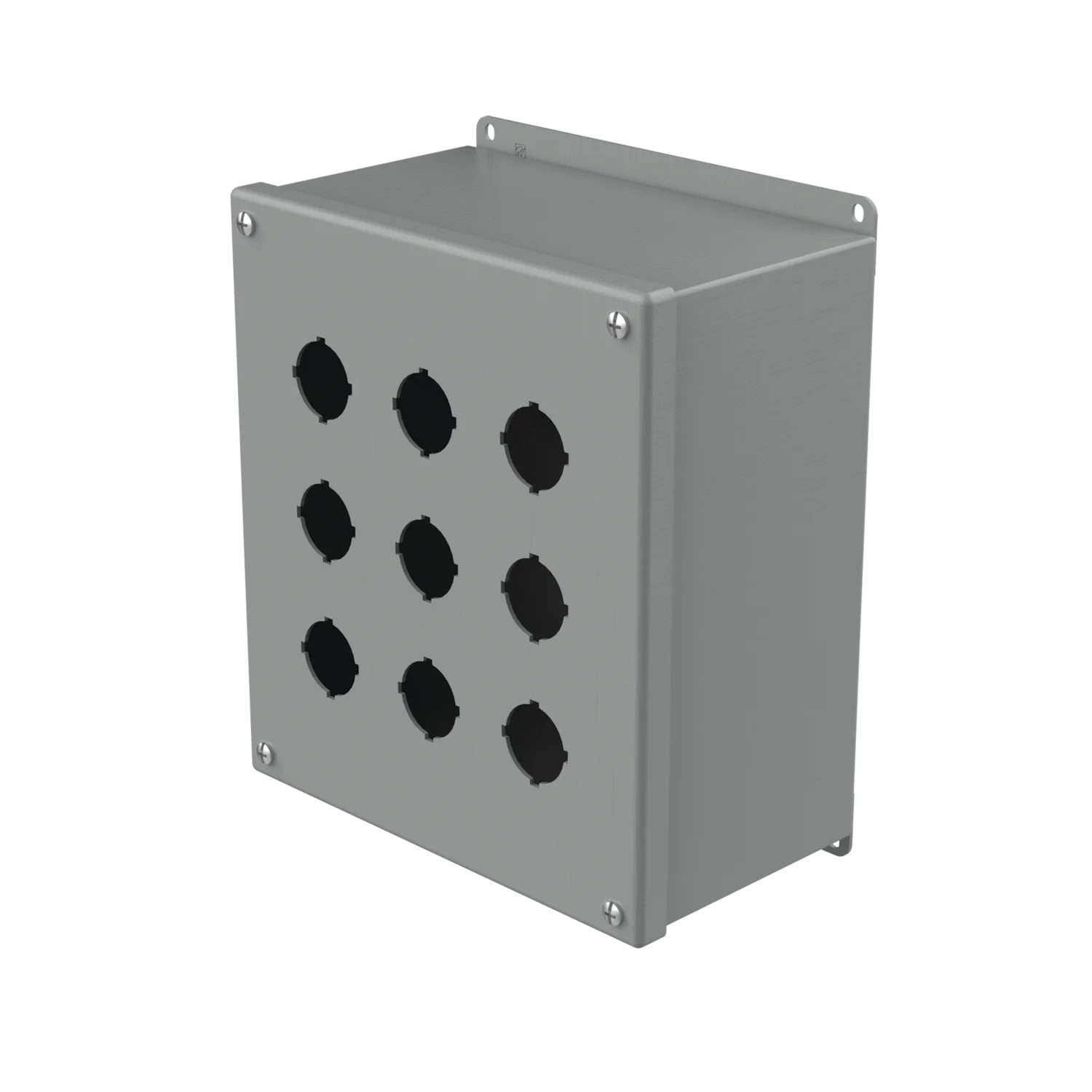

The HOFFMAN E9PBX Extra-Deep Pushbutton Enclosure is designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks. It features continuously welded and ground smooth seams and captivated cover screws thread into sealed wells. Made of 14ga mild steel with gray powder coated finish.

  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover

Product Highlights

This enclosure provides room for deep contact blocks and wiring, making it suitable for industrial applications.

Product Information

Standard Information

  • Brand: HOFFMAN
  • Manufacturer Part Number: E9PBX
  • Country of Origin: MX
Technical Specifications
Article Number
58180
Height
9.5in
Width
8.25in
Depth
4.75in
Material
Mild Steel
Finish
Powder Coated
Color Code
ANSI 61
Thickness
14ga
Hole Size
1.2in
Hole Quantity
9
Mounting
10.00 x 7.62in
Overall Dimensions
10.50 x 8.72in
UPC
783510581800
Bulletin Number
PB1
Approximate Height
10 in
Approximate Width
8.00 in
Brand
nVent HOFFMAN
Cable Entry
No Cable Entry
Configuration
No Cable Entry
Enclosure Mounting
Panel Mount
IP Rating
IP65
Manufacturer Part Number
E9PBX
Series
Pentair Series
Type
Pushbutton Array Enclosure
UPC Code
78351058180
Number of Holes
9
IP/NEMA Rating
IP65, NEMA 12, NEMA 13
Application
Industrial
Cover_Type
Hinged
NEMA_Rating
NEMA 12/IP65
Size
9PB X 30.5mm
Special Features
16 or 14 ga steel Bonding provision on cover Captivated cover screws thread into sealed wells Designed to hold 30.5 mm and 22.5 mm pushbuttons and switches, with added depth to accommodate additional pushbutton contact blocks Enclosures 6 x 4 x 4-3/4 in (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal External wall mounting brackets for easy installation Factory stamped 4-way pushbutton holes Grounding nut in body of enclosure Oil-resistant gasket Seams continuously welded and ground smooth
Standard
UL 508A Listed; Type 12, 13; File No. E61997; cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997; NEMA/EEMAC Type 12, 13; CSA File Number 42186: Type 12; IEC 60529, IP65
Sub_Brand
Hoffman
ECCN
EAR99
UNSPSC
39121326
