Hoffman E9PBSS Pushbutton Screw Cover Type 4X, 9Pbx30.5mm

Product Description

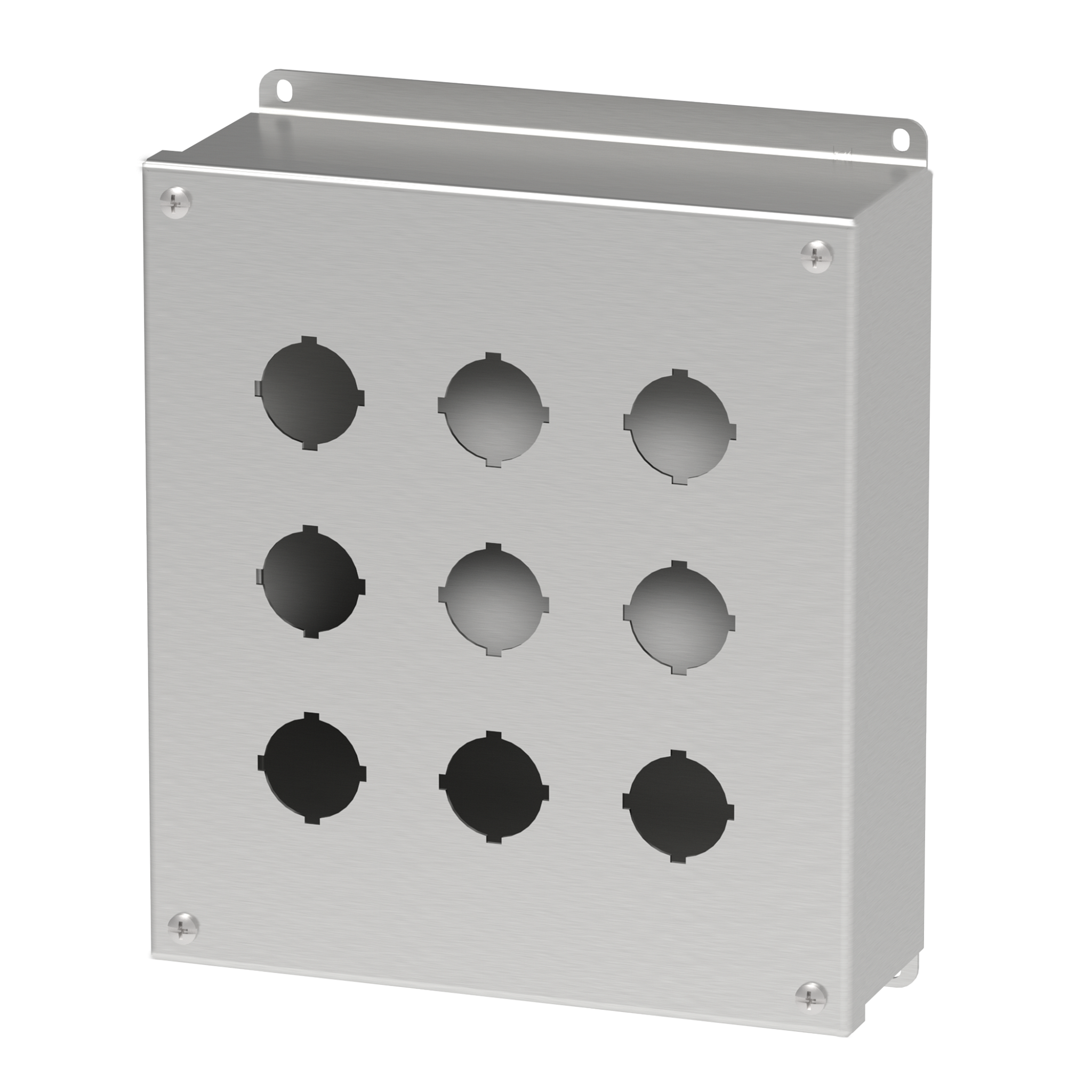

The HOFFMAN E9PBSS is a pushbutton screw cover enclosure punched to house 30.5-mm or 22.5-mm oil-tight pushbuttons, switches, and pilot lights. This enclosure provides protection against dirt, dust, oil, and water. It features continuously welded seams and a screw cover.

• Prepunched 30.5mm or 22.5mm holes
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

The HOFFMAN E9PBSS enclosure is ideal for industrial environments requiring robust protection for electrical components.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E9PBSS
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 59660
• Height: 9.5in
• Width: 8.5in
• Depth: 3in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 14ga
• Hole Size: 1.2in
• Hole Quantity: 9
• NEMA Rating: 4X Watertight, corrosion-resistant
• Standard: UL 508A Listed, Type 4, 4X, 12, File Number E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, File Number E61997, NEMA/EEMAC Type 4X, 12, 13, CSA File Number 42186: Type 4, 4X, 12, IEC 60529, IP66
• Type: Stainless Steel Industrial Terminal and Junction Boxes
• Number Of Holes: 9
• Application: Controls and Drives; Corrosive Environments; Hygienic Environments
• Brand: nVent HOFFMAN
• Catalog Number: E9PBSS
• Color: Unpainted
• Country of Origin: MX
• Height [Metric]: 8.3820 cm
• Item Group: PB1S
• Length: 8.6000 in
• Length [Metric]: 26.6700 cm
• Manufacturer: HOFFMAN ENCLOSURES
• Size: 9PB x 30.5mm
• Standards: UL 508A Listed, Type 4, 4X, 12, File Number E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, File Number E61997, RoHS Complaint
• UNSPSC: 39121326
• Width [Metric]: 21.8440 cm
• NEMA: 12
• Hole Position: 3 Row Vertical
