Hoffman E6PBX Extra-Deep Pushbutton Enclosure Type 12, 6Pb x 30.5mm

Product Description

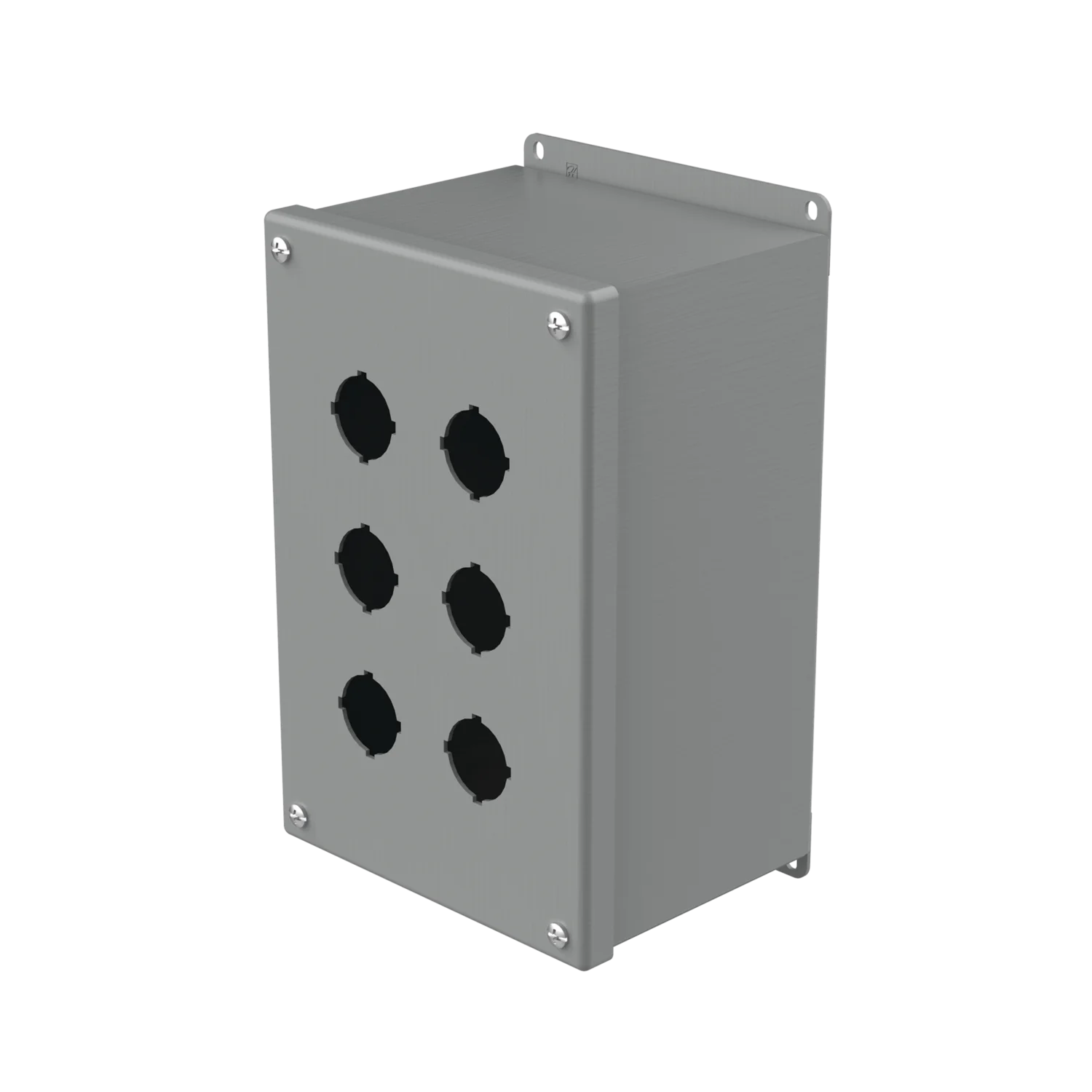

The HOFFMAN E6PBX Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks. It features continuously welded seams, captivated cover screws, and a bonding provision on the cover. Designed for interior use with a rectangular shape and deep box mounting style.

• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells
• Bonding provision on cover

Product Highlights

The HOFFMAN E6PBX is ideal for industrial applications requiring robust pushbutton protection.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E6PBX

Technical Specifications

• Article Number: 58170
• Height: 9.5in
• Width: 6.25in
• Depth: 4.75in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Hole Size: 1.2in
• Hole Quantity: 6
• Overall Dimensions: 10.50 x 6.47in
• UPC: 783510581701
• Bulletin Number: PB1
• Dimension T: 6 in
• Dimension Y: 2.61 in
• A x B x C: 9-1/2 x 6-1/4 x 4-3/4
• Mounting G x H: 10.00 x 5.38 in
• Gauge: 14 ga
• Type: 12
• Number of Holes: 6
• Description: Extra-Deep 30.5-mm & 22.5-mm Pushbutton Enclosures
• Manufacturers Part Number: E6PBX
• Brand: Hoffman
• Conduit Size: No Conduit Entrance Holes Provided
• Suitable For: Interior
• Box Shape: Rectangular
• Mounting Style: Deep Box, Panel, Bolt-On
• Model: E-6PBX
• Number of Poles: 1
