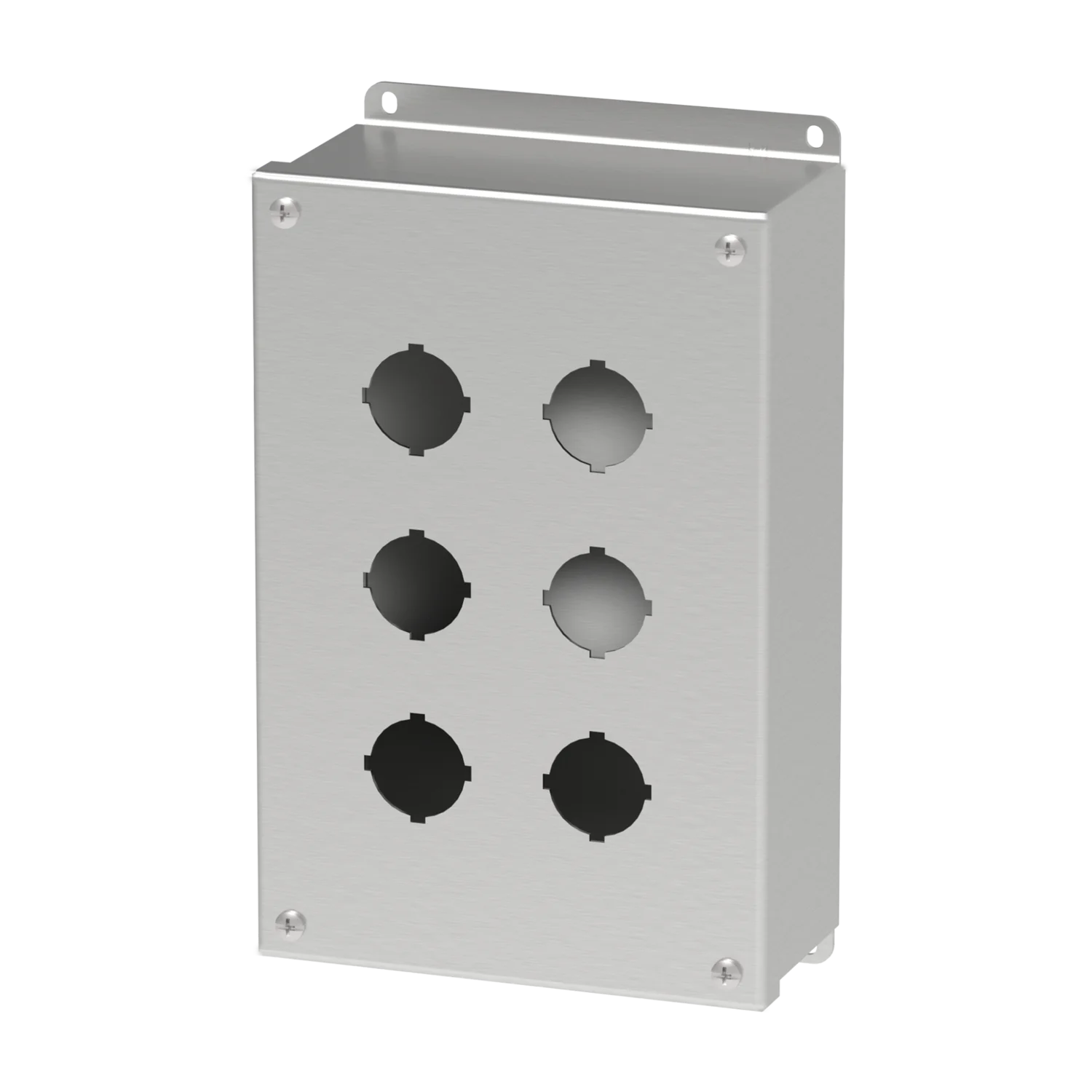

Hoffman E6PBSS Pushbutton Screw Cover Type 4X, 6PBx30.5mm, SS304

Product Description

The HOFFMAN E6PBSS is a pushbutton screw cover enclosure designed to house 30.5-mm or 22.5-mm oil-tight pushbuttons, switches, and pilot lights. This enclosure provides protection against dirt, dust, oil, and water. Made from stainless steel 304 with a brushed #4 finish, it features prepunched holes for easy component installation.

• Prepunched 30.5mm or 22.5mm holes
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

The HOFFMAN E6PBSS enclosure is ideal for industrial applications requiring robust protection for pushbuttons and switches.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E6PBSS
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 59650
• Height: 10.5 in.
• Width: 6.47 in.
• Depth: 3 in.
• Material: Stainless Steel
• Finish: Brushed #4
• Thickness: 1.98 mm
• Hole Size: 1.2in
• Hole Quantity: 6
• Mounting: 10.00 x 5.38in
• UPC: 783510596507
• Brand: HOFFMAN
• MPN: E6PBSS
• Sub Brand: Hoffman
• Used With: 30.5 mm or 22.5 mm Oil-Tight Pushbuttons, Switches and Pilot Lights
• Cover Type: Screw
• Gauge: 14
• Size: 6PB x 30.5mm
• Standard: 12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
• Type: Pushbutton Enclosure
• NEMA Rating: 4X
• Application: 30.5 or 22.5 mm Pushbuttons, Industrial
• NEMA Enclosure Rating: NEMA 4X
• Enclosure Material: 304 Stainless Steel
• Closure Method: Captive Screws
• Metallic / Non-Metallic: Metallic
• IP Rating: IP66
