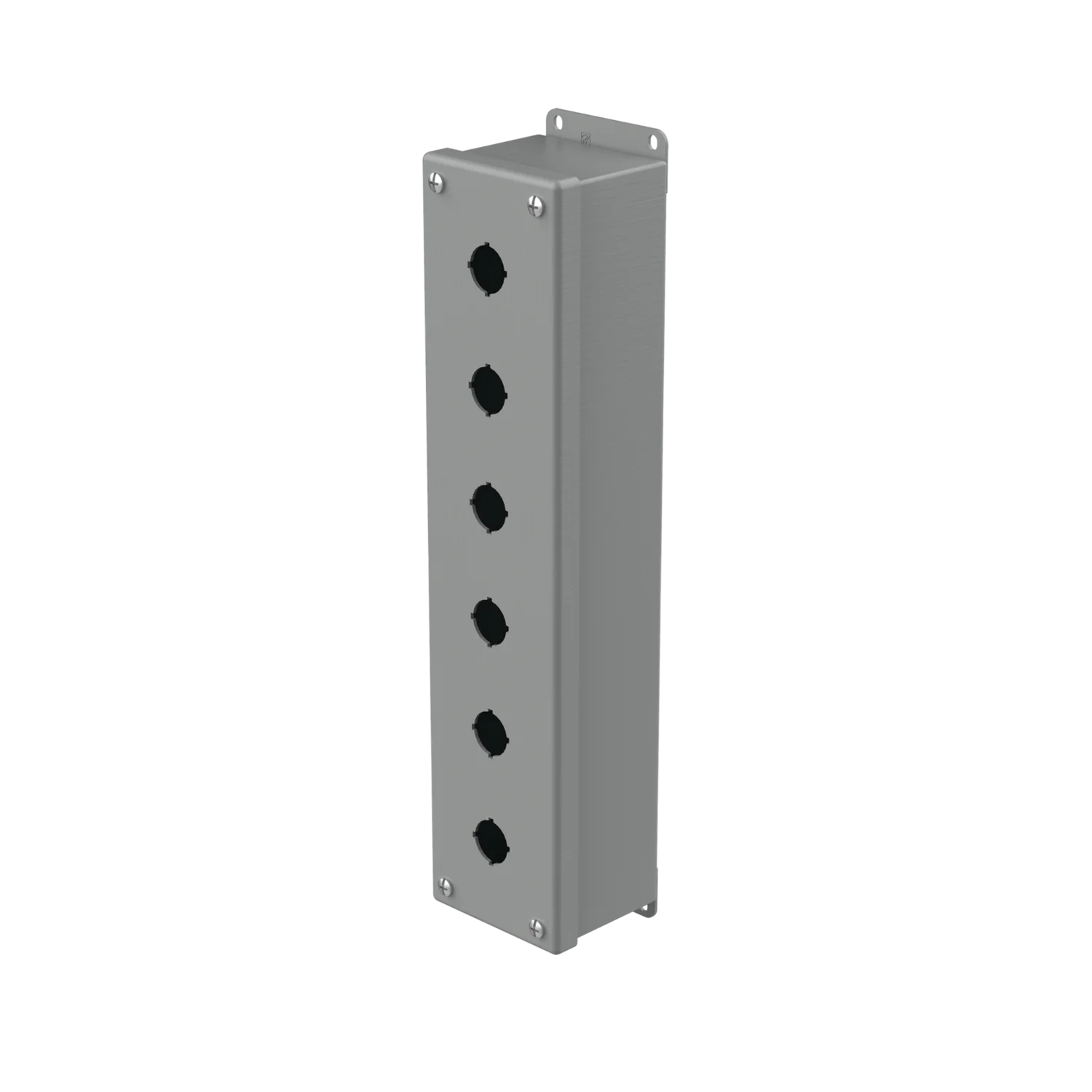

Hoffman E6PBGVL Pushbutton Enclosures Type 12, 6PBx22.5mm, Steel

Product Description

The HOFFMAN E6PBGVL pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches. The extra depth of these enclosures accommodates additional pushbutton contact blocks. Constructed of 14ga steel with continuously welded and ground smooth seams, these enclosures feature a gray polyester powder paint inside and out.

• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells
• Bonding provision on cover

Product Highlights

The HOFFMAN E6PBGVL is a steel pushbutton enclosure with factory stamped 4-way pushbutton holes and external welded-on mounting brackets for easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E6PBGVL
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 10142
• Height: 15.75 in.
• Width: 3.47 in.
• Depth: 2.75 in.
• Material: Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• Hole Size: 0.88in
• Hole Quantity: 6
• IP Rating: IP65
• Manufacturer Part Number: E6PBGVL
• Series: Type 4 Series
• Type: Pushbutton Inline Enclosure
• NEMA Rating: 12
• Application: 30.5 or 22.5 mm Pushbuttons, Industrial
• ECCN: EAR99
