Hoffman E6PBGSS Pushbutton Screw Cover 6PB x 22.5mm

Product Description

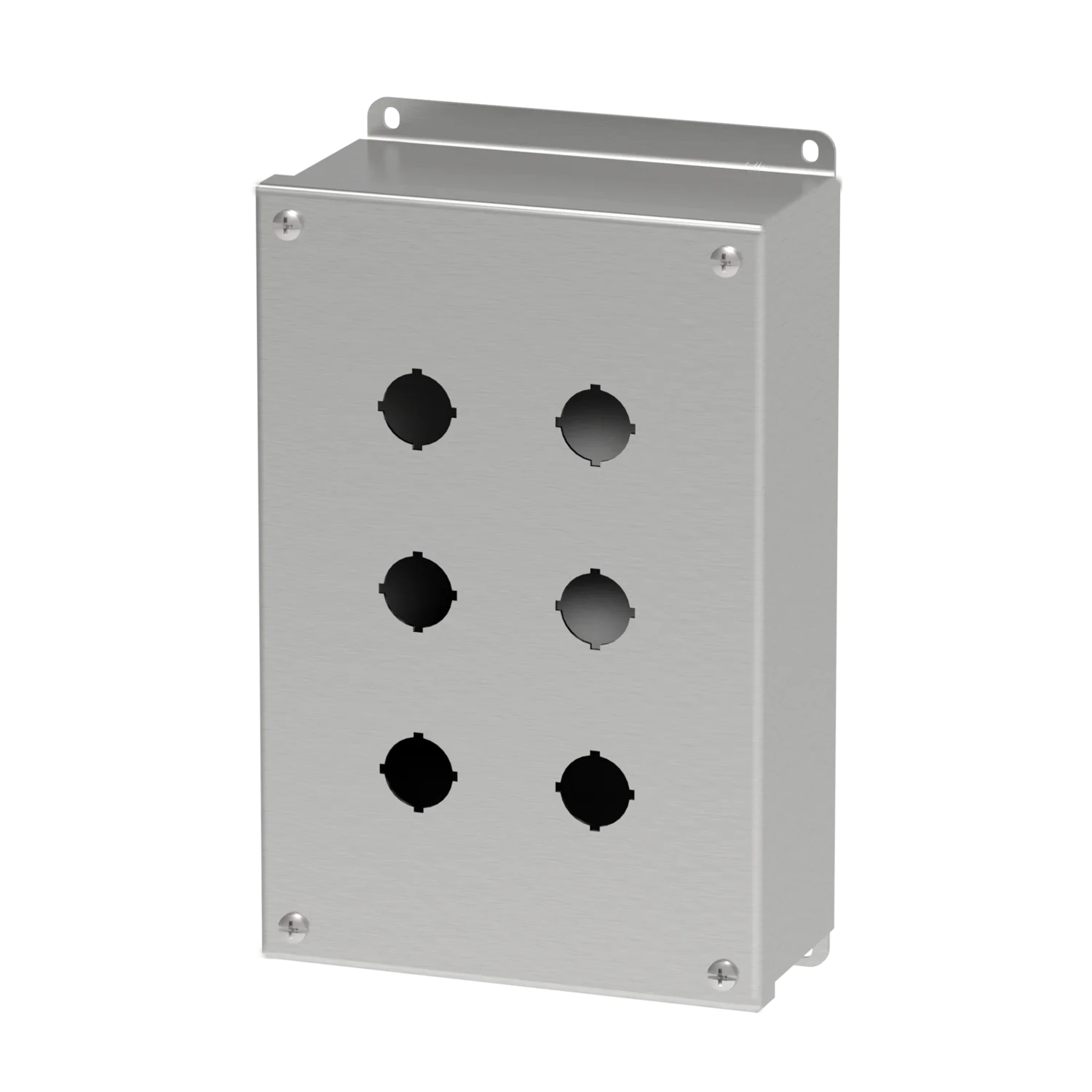

The HOFFMAN E6PBGSS is a pushbutton screw cover enclosure designed to house 30.5-mm or 22.5-mm oil-tight pushbuttons, switches, and pilot lights. This enclosure provides protection against dirt, dust, oil, and water. It features prepunched holes and continuously welded seams.

• Prepunched 30.5mm or 22.5mm holes
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

Provides a secure housing for pushbuttons, switches and pilot lights, protecting against environmental factors.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E6PBGSS
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 10151
• Height: 9.5in
• Width: 6.25in
• Depth: 3in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 14ga
• Hole Size: 0.88in
• Hole Quantity: 6
• Weight: 4.74lb
• UPC: 783510101510
• Bulletin Number: PB1S
• IP/NEMA Rating: IP66, NEMA 4X
• ECCN: EAR99
• Type: Pushbutton Enclosure
• RoHS: Compliant
• UL 508A Listed: Type 4, 4X, 12; File Number E61997
• cUL Listed per CSA C22.2 No 94: Type 4, 4X, 12; File Number E61997
• NEMA/EEMAC Type: 4X, 12, 13
• CSA File Number 42186: Type 4, 4X, 12
• IEC 60529: IP66
• Cover Type: Screw
• Gauge: 14
• Number of Holes: 6 Hole
• Size: 6PB x 22.5mm
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Used With: 30.5 mm or 22.5 mm Oil-Tight Pushbuttons, Switches and Pilot Lights
• Depth (mm): 76 mm
• Height (mm): 241 mm
• Hole Size (mm): 22.5 mm
• Length: 10-1/2 Inch
• Thickness (mm): 1.98 mm
• Width (mm): 159 mm
• Cable Entry: No Cable Entry
• Color: Natural
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• Series: Pentair Stainless Series
• Manufacturer Part Number: E6PBGSS
• Type (detailed): Pushbutton Array Enclosure
• UPC Code: 78351010151
