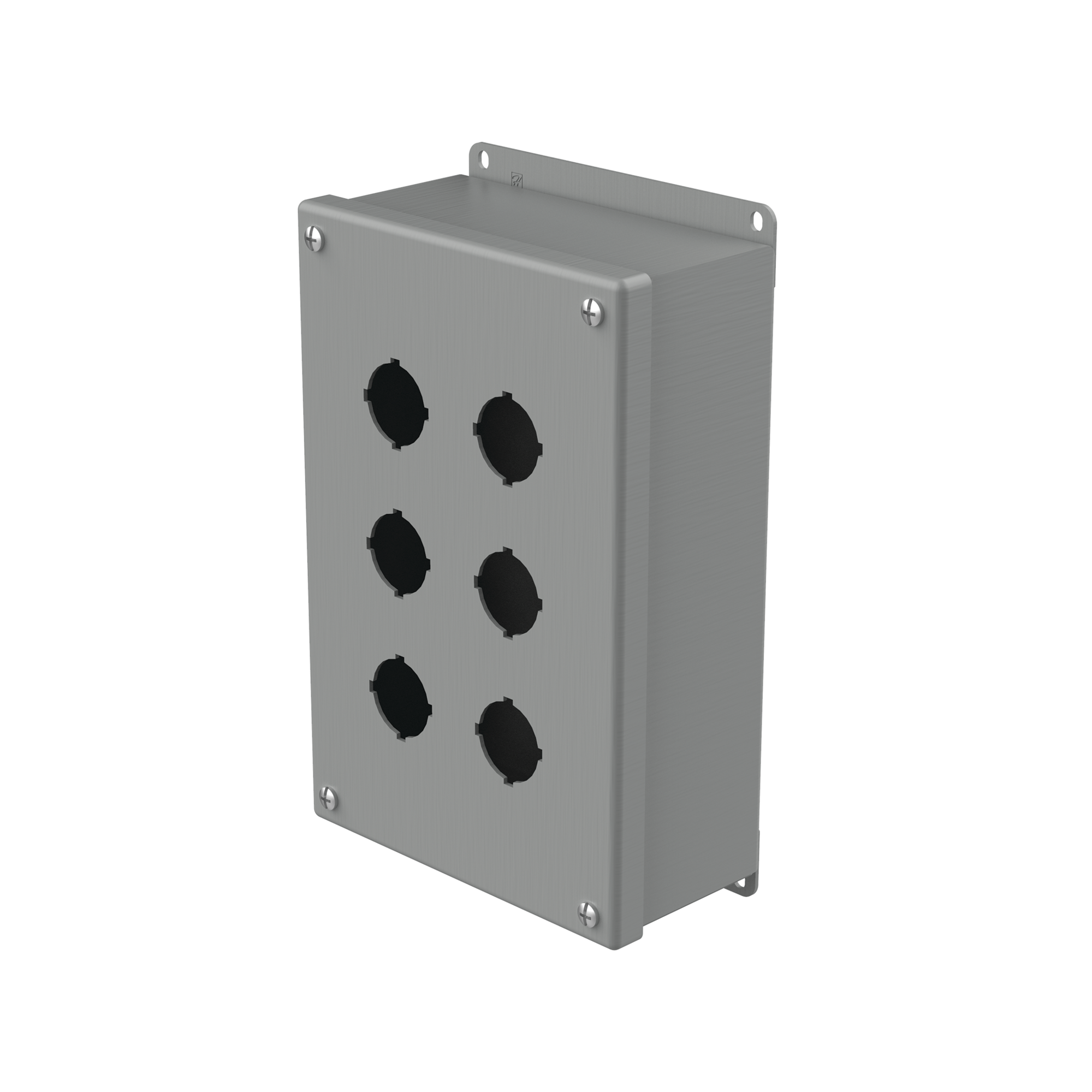

Hoffman E6PB Pushbutton Enclosures Type 12, 6PB x 30.5mm, Steel

Product Description

The HOFFMAN E6PB pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches. These E series enclosures feature continuously welded and ground smooth seams. Made of steel with a gray polyester powder paint inside and out, the enclosures have factory stamped 4-way pushbutton holes.

• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells
• Bonding provision on cover

Product Highlights

The HOFFMAN E6PB is a steel enclosure with continuously welded seams, designed for 30.5-mm or 22.5-mm pushbuttons and switches.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E6PB
• Country of Origin: Mexico

Technical Specifications

• Article Number: 58060
• Height: 9.5in
• Width: 6.25in
• Depth: 3in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• Hole Size: 1.2in
• Hole Quantity: 6
• Brand: nVent HOFFMAN
• IP Rating: IP65
• Manufacturer Part Number: E6PB
• Number of Holes: 6
• Series: Type 4 Series
• Type: Pushbutton Array Enclosure
• Gauge: 14 AWG
• Size: 6PB x 30.5mm
• Standard: CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
• Used With: 30.5 mm Push Button
• NEMA Rating: 12 Indoor, dust-resistant
• Mounting Type: Wall
• Application: Controls and Drives
• Catalog Number: E6PB
• Country of Origin: MX
• Manufacturer: HOFFMAN ENCLOSURES
• Modification Services: Yes
• Package Quantity: 1
• Standards: UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, RoHS Complaint
• UNSPSC: 39121326
• Hole Size [Metric]: 30.5 mm
