Hoffman E4PBSS Pushbutton Screw Cover Type 4X, 4PBx30.5mm, SS304

Product Description

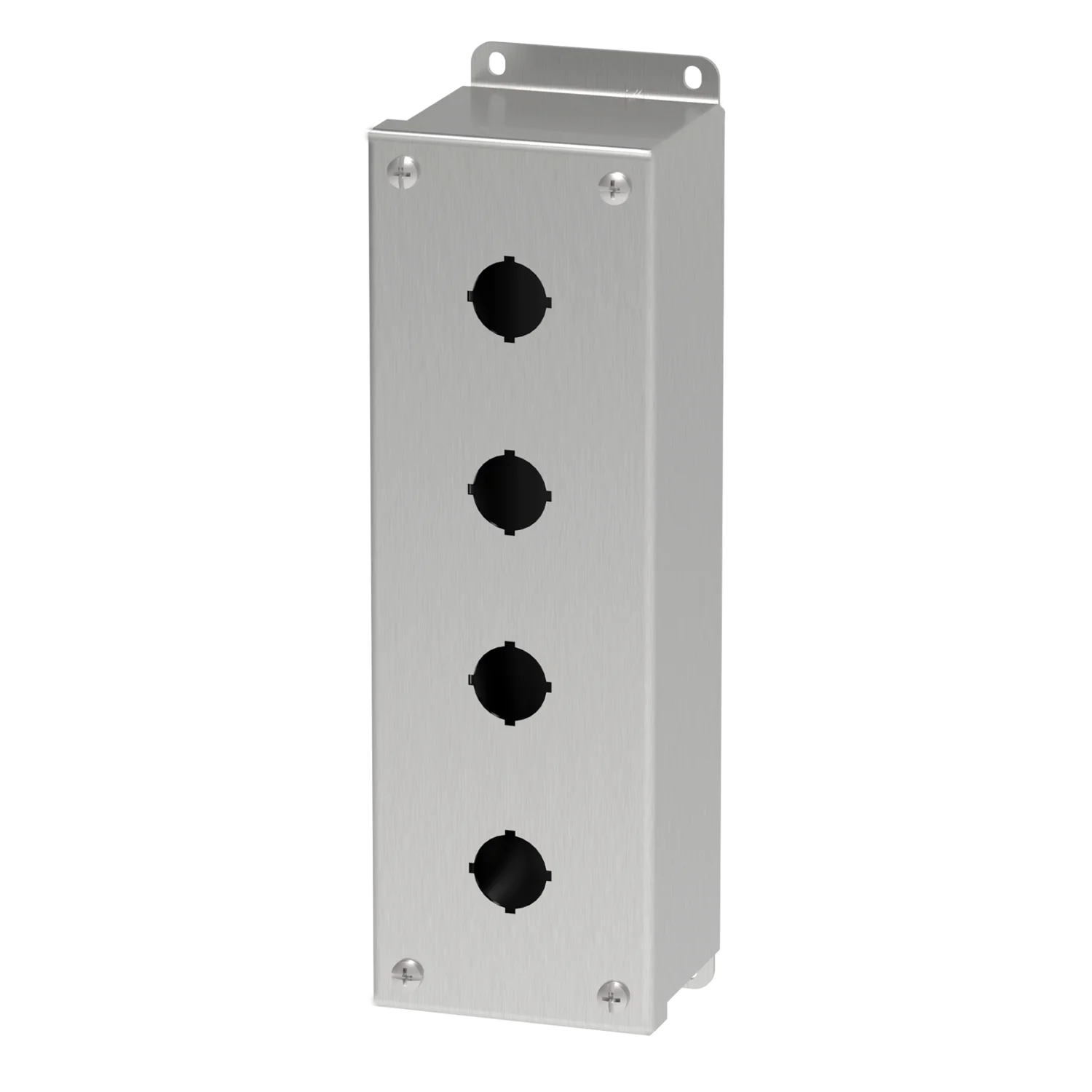

The HOFFMAN E4PBSS is a pushbutton screw cover enclosure designed to house 30.5-mm or 22.5-mm oil-tight pushbuttons, switches, and pilot lights. This enclosure provides NEMA 4X protection against dirt, dust, oil, and water. Constructed from stainless steel 304 with a brushed #4 finish, it features prepunched holes for easy installation.

• Prepunched 30.5mm or 22.5mm holes
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

The HOFFMAN E4PBSS enclosure is ideal for use with pushbuttons, switches, and pilot lights, offering robust protection in harsh environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E4PBSS
• Country of Origin: Mexico

Technical Specifications

• Article Number: 59640
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 14ga
• Hole Size: 1.2in
• Hole Quantity: 4
• Gauge: 14
• Mounting: 10.75 x 2.38in
• UPC: 783510596408
• EAN: 8713574323056
• Bulletin Number: PB1S
• Cover Type: Hinged
• Series: PB1S
• Number of Outlets: 4
• NEMA Rating: NEMA 4X/IP66
• Environments & Applications: Washdown-Corrosion-Resistant
• Includes: Captive Cover Screws; Oil Resistant Gasket
• Mounting Style: External Feet
• Number of Columns: 1
• Panel Mounting Hole Diameter: 30mm
• Standards: CSA C22.2 No. 94 File No. E61997; cUL; UL 508A File No. E61997
• UNSPSC: 39121512
• Used With: 30.5 mm or 22.5 mm Oil-Tight Pushbuttons, Switches and Pilot Lights
• Size: 4PB x 30.5mm
• Standard: 12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
• Type: 4 Holes
• Diameter: 30.500 mm
• Compatible Conduit Size - Maximum: No Conduit Entrance Holes Provided
