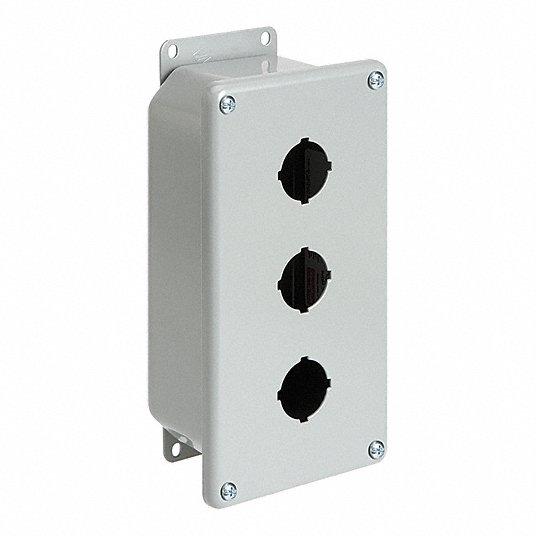

Hoffman E4PBGXM Deep Pushbutton Enclosures Type 12, 4PB x 22.5mm

Product Description

The HOFFMAN E4PBGXM deep pushbutton enclosure is designed for pushbuttons and switches, with extra depth to accommodate additional contact blocks. Constructed from 14 gauge steel with continuously welded and ground smooth seams. Features captivated cover screws that thread into sealed wells, a bonding provision on the cover, and a grounding nut in the body.

• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells
• Bonding provision on cover

Product Highlights

This Hoffman deep pushbutton enclosure is ideal for use with 22.5 mm push buttons and provides a NEMA 12 rating for indoor dust and water droplet protection.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E4PBGXM
• Country of Origin: Mexico

Technical Specifications

• Article Number: 13531
• Height: 9.5in
• Width: 2.75in
• Depth: 3.5in
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 1.9 mm
• Hole Quantity: 4
• Mounting: External Feet
• Weight: 3.2lb
• UPC: 783510135317
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: PB1
• For Push Buttons and Switches: For Push Buttons and Switches
• Size: 4PB x 22.5mm
• Type: 4-Hole, Extra Deep
• Brand: HOFFMAN
• Sub Brand: Hoffman
• 12-Digit UPC: 783510135317
• GTiN: 00783510135317
• Product UPC: 78351013531
• Used With: 22.5 mm Push Button
• Length: 10-1/2 Inch
• Compatible Conduit Size - Maximum: No Conduit Entrance Holes Provided
• Environments & Applications: Indoor Dust & Water Droplets
• Includes: Captive Cover Screws; Grounding Stud; Oil Resistant Gasket
• NEMA Rating: 12
• Number of Columns: 1
• Panel Mounting Hole Diameter: 22mm
• Standards: CSA C22.2 File No. E61997; cUL; UL 508A File No. E61997
• UNSPSC: 39121512
• Approval: UL 508A, CUL, CSA C22.2
• Nema Rating: NEMA 12/13, IP65
• Device Hole Size: 22.5 Millimeter Diameter
• Device Hole Location: 1-Row Vertical
• Material Specification: 14 Gauge
