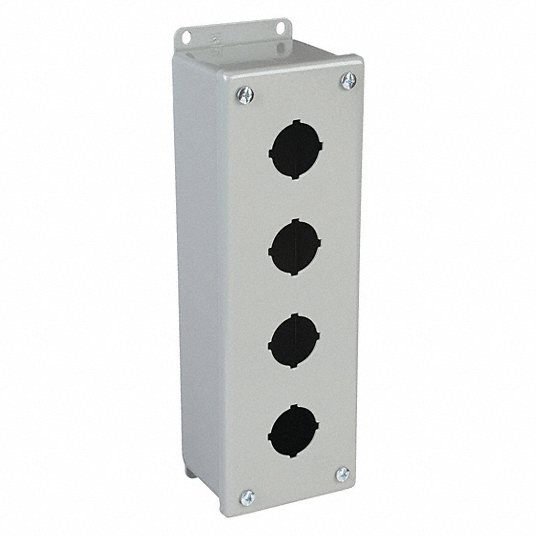

Hoffman E4PB Pushbutton Enclosure 4 Hole 30.5mm

Product Description

The Hoffman E4PB pushbutton enclosure is designed to hold 30.5 mm and 22.5 mm push buttons and switches. These enclosures have ground smooth continuously welded seams. The E series are made of steel with a gray polyester powder paint inside and out. These control stations have precut openings for installing 30mm operators.

• 16 or 14 gauge steel
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

The Hoffman E4PB is ideal for indoor environments with dust and water droplets. Includes captive cover screws, grounding stud and oil resistant gasket.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E4PB
• Country of Origin: Mexico

Technical Specifications

• Brand: HOFFMAN
• Cable Entry: No Cable Entry
• Color: Gray
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• Hole Size: 30.5 mm in
• IP Rating: IP65
• Manufacturer Part Number: E4PB
• Material: Steel
• Number of Holes: 4
• Series: Type 12 Series
• Type: 12
• Description: 30.5-mm & 22.5-mm Pushbutton Enclosures
• Environments & Applications: Indoor Dust & Water Droplets
• Includes: Captive Cover Screws; Grounding Stud; Oil Resistant Gasket
• Mounting Style: External Feet
• NEMA Rating: 12
• Number of Columns: 1
• Standards: CSA C22.2 File No. E61997; cUL; UL 508A File No. E61997
• UNSPSC: 39121512
• MPN: E4PB
• Country of Origin: Mexico
• Gauge: 14 ga
