Hoffman E3PBSS Pushbutton Screw Cover Type 4X, 3PBx30.5mm, SS304

Product Description

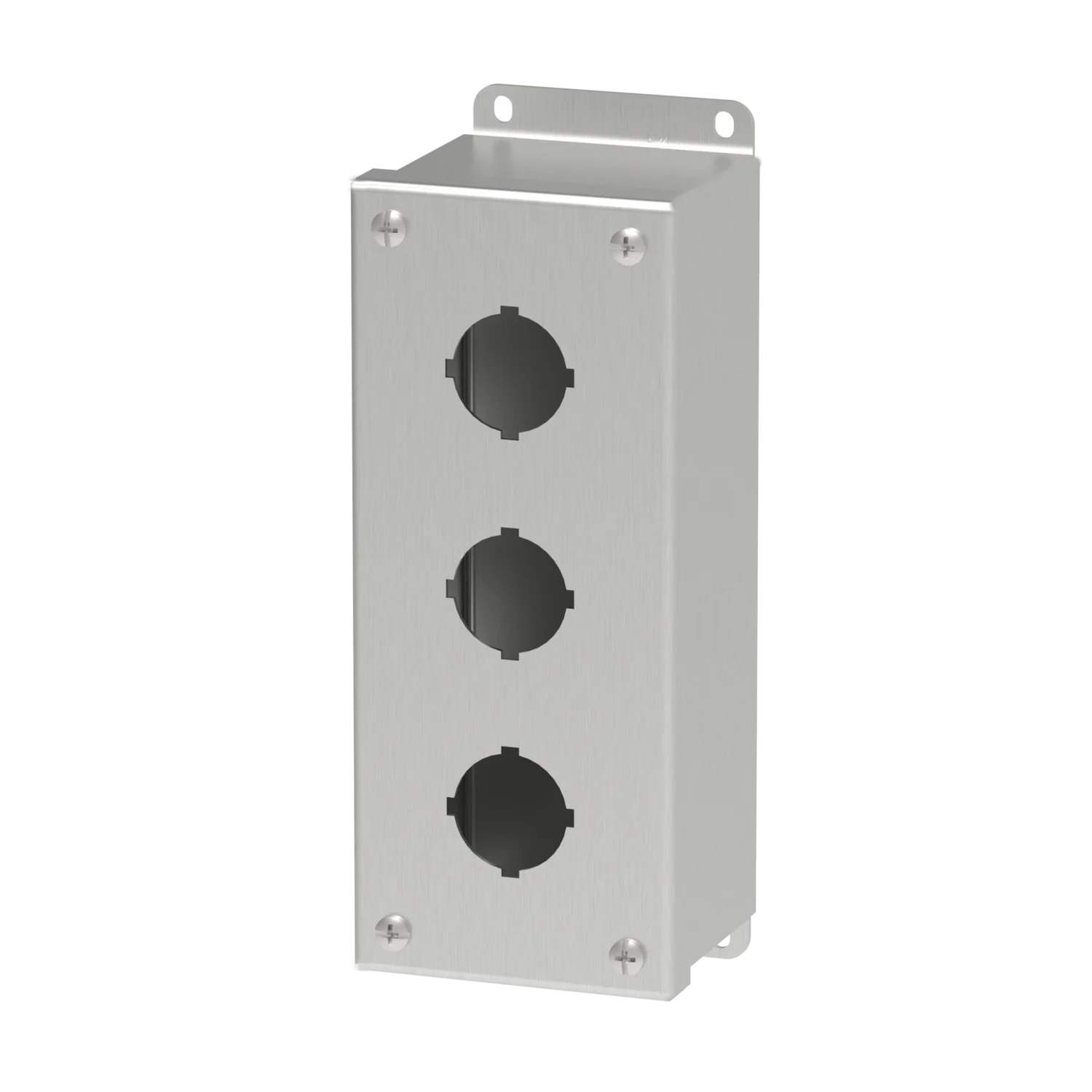

The HOFFMAN E3PBSS pushbutton enclosure is designed to house 30.5-mm or 22.5-mm oil-tight pushbuttons, switches, and pilot lights. This enclosure provides protection against dirt, dust, oil, and water. Constructed of stainless steel 304 with a brushed #4 finish.

• Prepunched 30.5mm or 22.5mm holes
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

This enclosure features a bonding provision on the door, a grounding nut on the body, and an oil-resistant gasket.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E3PBSS
• Country of Origin: Mexico

Technical Specifications

• Article Number: 59630
• Height: 8 in
• Width: 3.25 in
• Depth: 2.75 in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 14ga
• Hole Size: 30 mm
• Hole Quantity: 3
• IP/NEMA Rating: IP66, NEMA 4X
• Cable Entry: No Cable Entry
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• IP Rating: IP66
• Manufacturer Part Number: E3PBSS
• Number of Holes: 3
• Numeric ID: 2510415
• Series: Pentair Stainless Series
• Size: Small in
• Type: Pushbutton Inline Enclosure
• Compatible Conduit Size - Maximum: No Conduit Entrance Holes
• Environments & Applications: Washdown-Corrosion-Resistant
• Includes: Captive Cover Screws; Oil Resistant Gasket
• Mounting Style: External Feet
• NEMA Rating: 4X
• Number of Columns: 1
• Overall Depth: 2-3/4 in
• Overall Height: 8 in
• Overall Width: 3-1/4 in
• Panel Mounting Hole Diameter: 30mm
• Standards: CSA C22.2 No. 94 File No. E61997; cUL; UL 508A File No. E61997
• UNSPSC: 39121512
