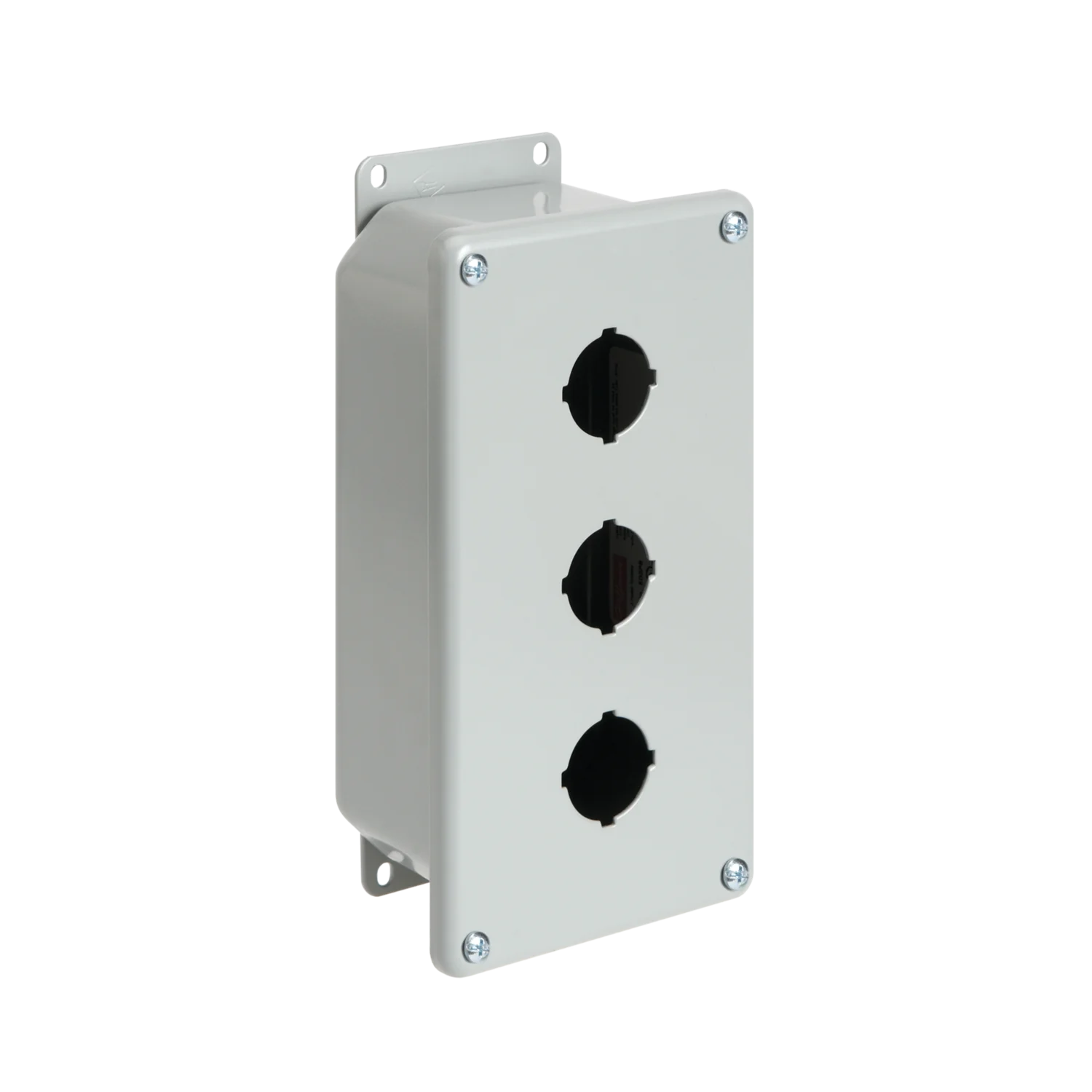

Hoffman E3PBGXM Deep Pushbutton Enclosure 3PB x 22.5mm

Product Description

The Hoffman E3PBGXM deep pushbutton enclosure is designed for pushbuttons and switches. The extra depth accommodates additional pushbutton contact blocks. Features include continuously welded and ground smooth seams, captivated cover screws that thread into sealed wells, and a bonding provision on the cover. It also has a grounding nut in the body of the enclosure.

• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells
• Bonding provision on cover

Product Highlights

This Hoffman enclosure is ideal for industrial applications requiring robust protection for pushbuttons and switches.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E3PBGXM

Technical Specifications

• Article Number: 13528
• Height: 7.25in
• Width: 2.75in
• Depth: 3.5in
• Material: Mild Steel
• Finish: ANSI 61 Polyester Powder Painted
• Color Code: ANSI 61
• Thickness: 14ga
• Hole Quantity: 3
• Manufacturer Part Number: E3PBGXM
• Manufacturer: nVent HOFFMAN
• NEMA Rating: NEMA 12, NEMA 13
• Bulletin Number: PB1
• UNSPSC Code: 31260000
• Series: Pentair Series
• Number of Holes: 3
• Hole Size: 22 mm
• IP Rating: IP65
• Special Features: Captivated Cover Screws, Grounding Nut/Bonding Point, Oil-resistant gasket
• Type: Pushbutton Inline Enclosure
• Standards: cUL Listed per CSA C22.2 No 94, IEC 60529, Type 4, 4X, 12, UL 508A Listed
• Configuration: No Cable Entry
• Color: Gray
• Enclosure Mounting: Panel Mount
• Cable Entry: No Cable Entry
• Cover Type: Hinged
• Mounting Type: Wall
• Suitable For: Interior, Exterior
• Current Type: AC/DC
• Control Style: Switch, Push Button
• Features: Waterproof
• Box Shape: Rectangular
• Model: E3PBGXM
• Item Height: 2 in
