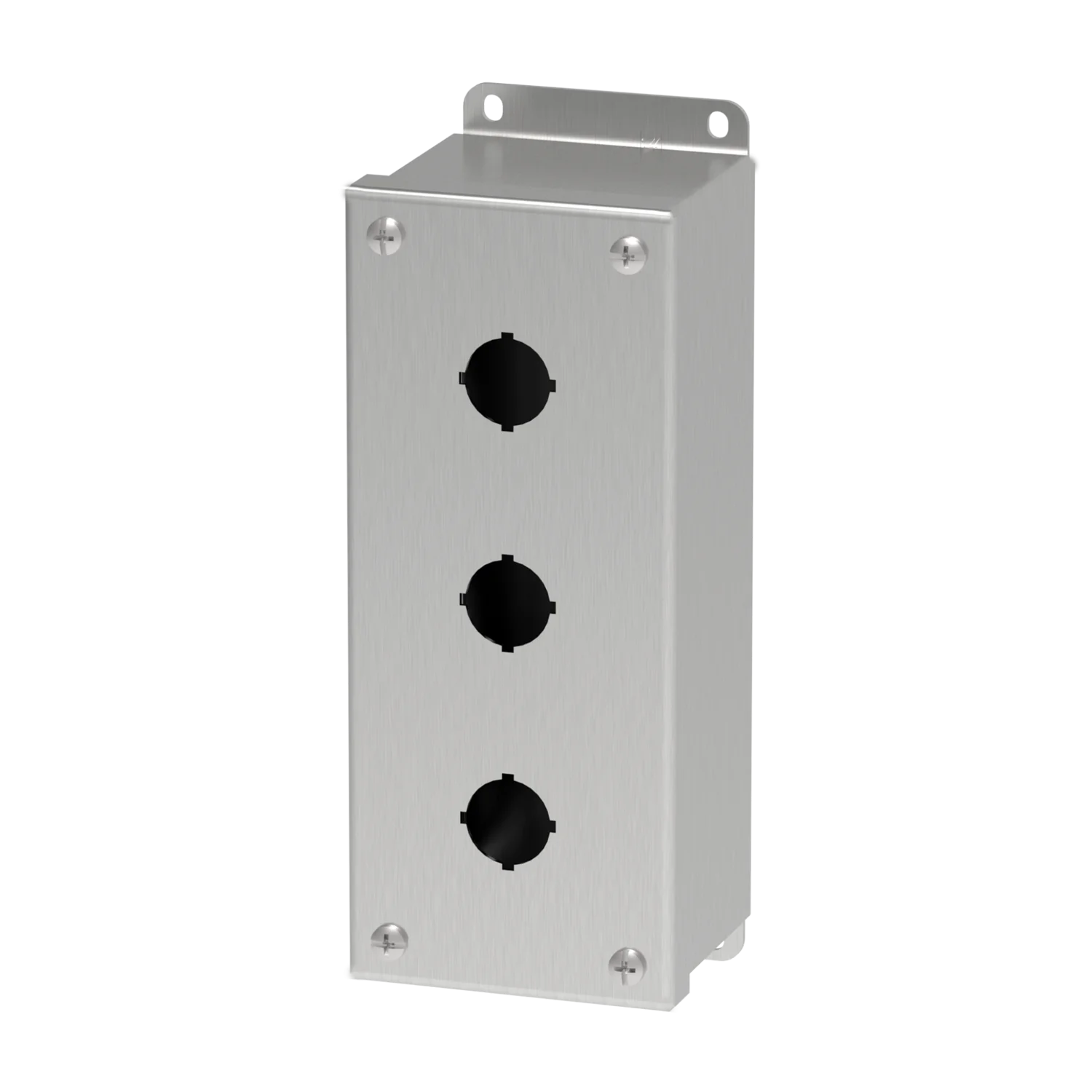

Hoffman E3PBGSS Pushbutton Screw Cover Type 4X, 3PBx22.5mm, SS304

Product Description

The HOFFMAN E3PBGSS is a pushbutton screw cover enclosure designed to house 30.5-mm or 22.5-mm oil-tight pushbuttons, switches, and pilot lights. This enclosure provides protection against dirt, dust, oil, and water. It features continuously welded and ground smooth seams.

• Prepunched 30.5mm or 22.5mm holes
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

This stainless steel enclosure is ideal for industrial applications, offering robust protection and easy installation of pushbuttons and switches.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E3PBGSS
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 59410
• Height: 8 in
• Width: 3.25 in
• Depth: 2.75 in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 14ga
• Hole Size: 0.88 in
• Hole Quantity: 3
• UPC: 783510594107
• EAN: 8713574322745
• Bulletin Number: PB1S
• NEMA Rating: NEMA 12, NEMA 13, NEMA 4x
• UNSPSC Code: 31260000
• Series: Pentair Stainless Series
• Number of Holes: 3
• IP Rating: IP66
• Special Features: Captivated Cover Screws, Grounding Nut/Bonding Point, Oil-resistant gasket
• Approximate Height: 8 in
• Approximate Width: 3.00 in
• Type: Pushbutton Inline Enclosure
• Standards: cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, UL 508A Listed
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• Cable Entry: No Cable Entry
• ECCN: EAR99
• Application: 30.5 or 22.5 mm Pushbuttons, Industrial
