Hoffman E2PBXSS Extra-Deep Pushbutton Screw Cover 2PB x 30.5mm

Product Description

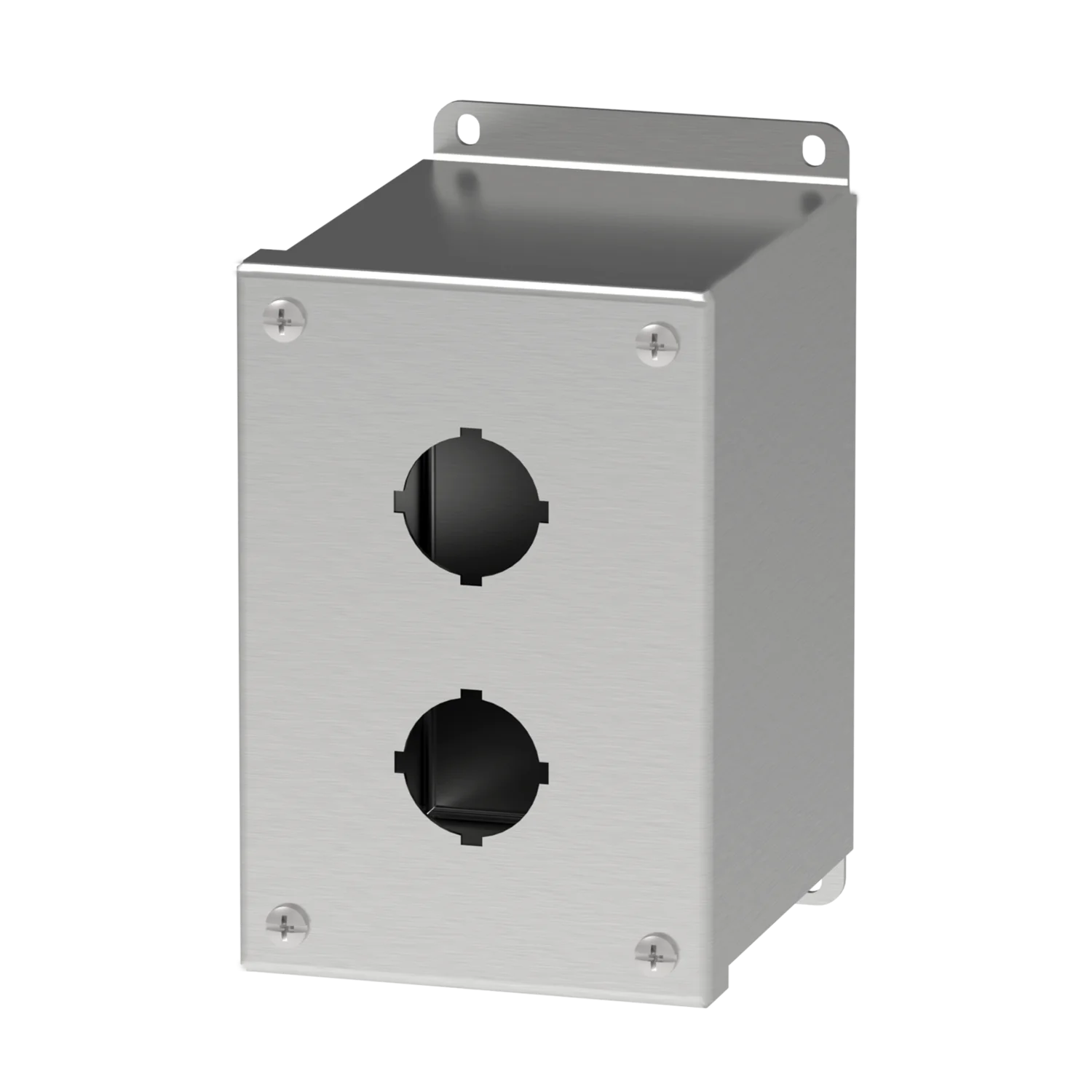

The HOFFMAN E2PBXSS is designed to house 30.5-mm oil-tight pushbuttons, switches, and pilot lights. This enclosure provides protection against dirt, dust, oil, and water. Its extra-deep design accommodates additional contact blocks for pushbuttons. It is constructed from stainless steel 304 with a brushed #4 finish.

• Extra-deep design accommodates additional contact blocks for pushbuttons.
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

The Hoffman E2PBXSS provides a secure housing for pushbuttons, switches, and pilot lights, protecting them from harsh environmental conditions.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E2PBXSS

Technical Specifications

• Article Number: 59360
• Height: 6 in
• Width: 4 in
• Depth: 4.75 in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 1.9 mm
• Hole Quantity: 2
• Mounting: 6.50 x 3.12in
• UPC: 783510593605
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: PB1S
• Cover Type: Screw
• Number of Holes: 2 Hole
• Size: 2PB x 30.5mm
• Standard: 12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
• Type: 2 Holes
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510593605
• Product UPC: 78351059360
• Used With: 30.5 mm Oil-Tight Pushbuttons, Switches and Pilot Lights
• Length: 6-1/2 Inch
• IP/NEMA Rating: IP66, NEMA 4X
• Category: Boxes
• Ratings: IP66, NEMA 4,4X,12,13, UL-508A
• Design: Cover Included
• Features: Mounting Flange, Pushbutton Holes - 2
