Hoffman E2PBGXM Deep Pushbutton Enclosure 2PB x 22.5mm

Product Description

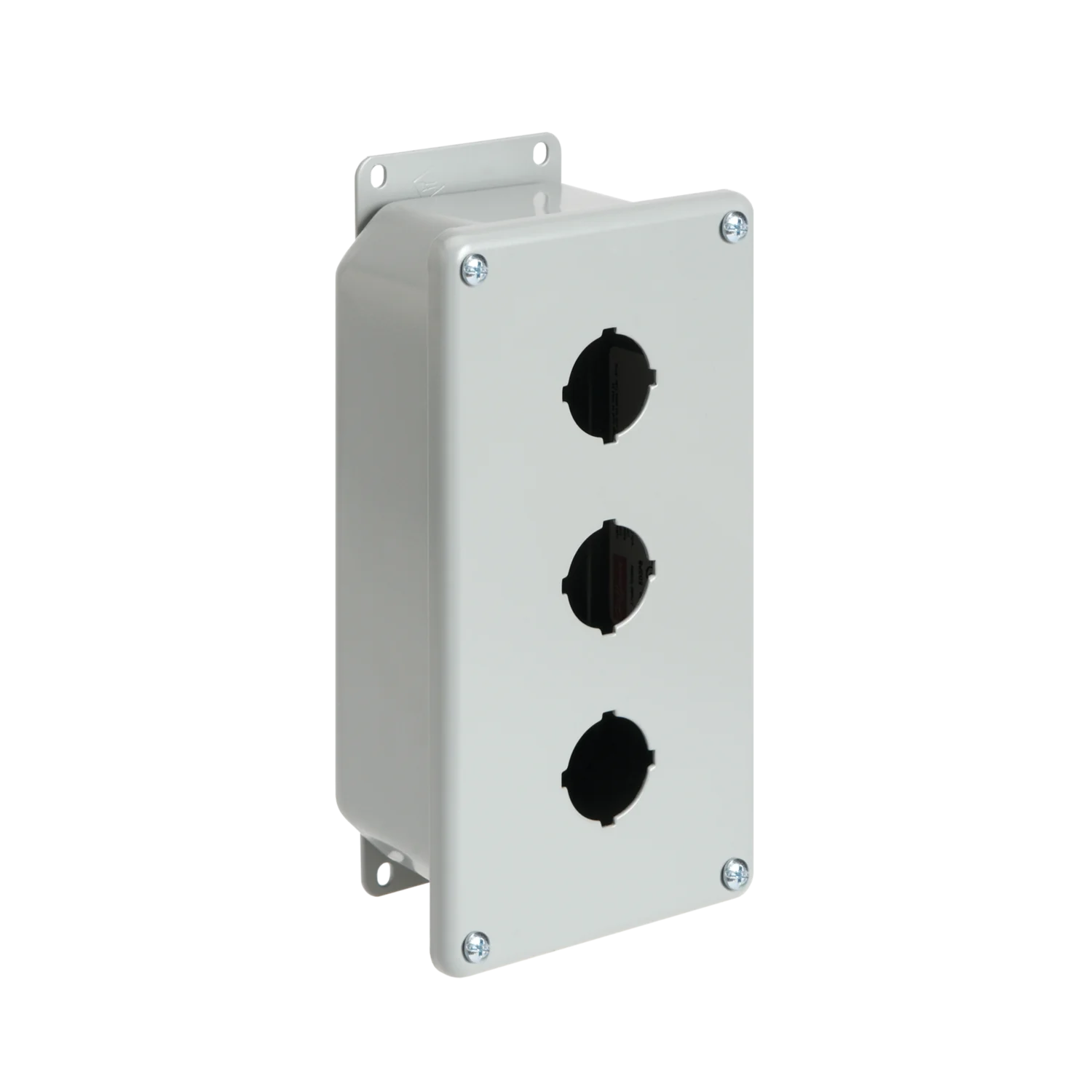

The HOFFMAN E2PBGXM is a deep pushbutton enclosure designed for pushbuttons and switches, with extra depth to accommodate additional contact blocks. Constructed from 14-gauge steel with continuously welded and ground smooth seams, it features a gray polyester powder paint inside and out. This enclosure is ideal for industrial environments requiring robust protection.

• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells
• Bonding provision on cover

Product Highlights

Durable steel construction with oil-resistant gasket and external mounting brackets for easy installation. Suitable for various industrial applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E2PBGXM
• Country of Origin: Mexico

Technical Specifications

• Article Number: 13527
• Height: 5.12in
• Width: 2.75in
• Depth: 3.5in
• Material: Steel
• Finish: ANSI 61 Polyester Powder Painted
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Hole Quantity: 2
• Mounting: 5.62 x 1.88in
• UPC: 783510135270
• Bulletin Number: PB1
• Manufacturer Part Number: E2PBGXM
• Manufacturer: nVent HOFFMAN
• NEMA Rating: NEMA 12, NEMA 13
• UNSPSC Code: 31260000
• Series: Pentair Series
• Hole Size: 22 mm
• IP Rating: IP65
• UPC Code: 78351013527
• Special Features: Captivated Cover Screws, Grounding Nut/Bonding Point, Oil-resistant gasket
• Type: Pushbutton Inline Enclosure
• Standards: cUL Listed per CSA C22.2 No 94, IEC 60529, Type 4, 4X, 12, UL 508A Listed
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• Cable Entry: No Cable Entry

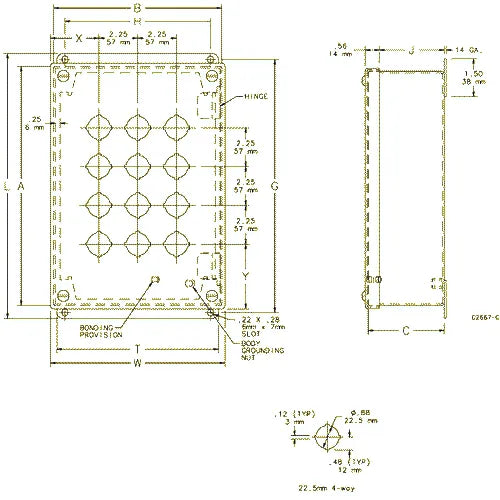

• Dimension T: 2.5 in
• Dimension Y: 1.55 in
• J Dimension: 3.09 in
• Dimension X: 1.48 in
• Country of Origin: Mexico
• Cover Type: Hinged
• Number of Outlets: 2
• ECCN: EAR99
• Standard: UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12, 13, CSA File Number 42186: Type 12, IEC 60529, IP65
• Application: Designed for pushbuttons and switches, the extra depth of these enclosures accommodates additional pushbutton contact blocks.
• No. of Holes: 2
• Color Family: Gray
