Hoffman E2PBGSS Pushbutton Screw Cover 2PB x 22.5mm

Product Description

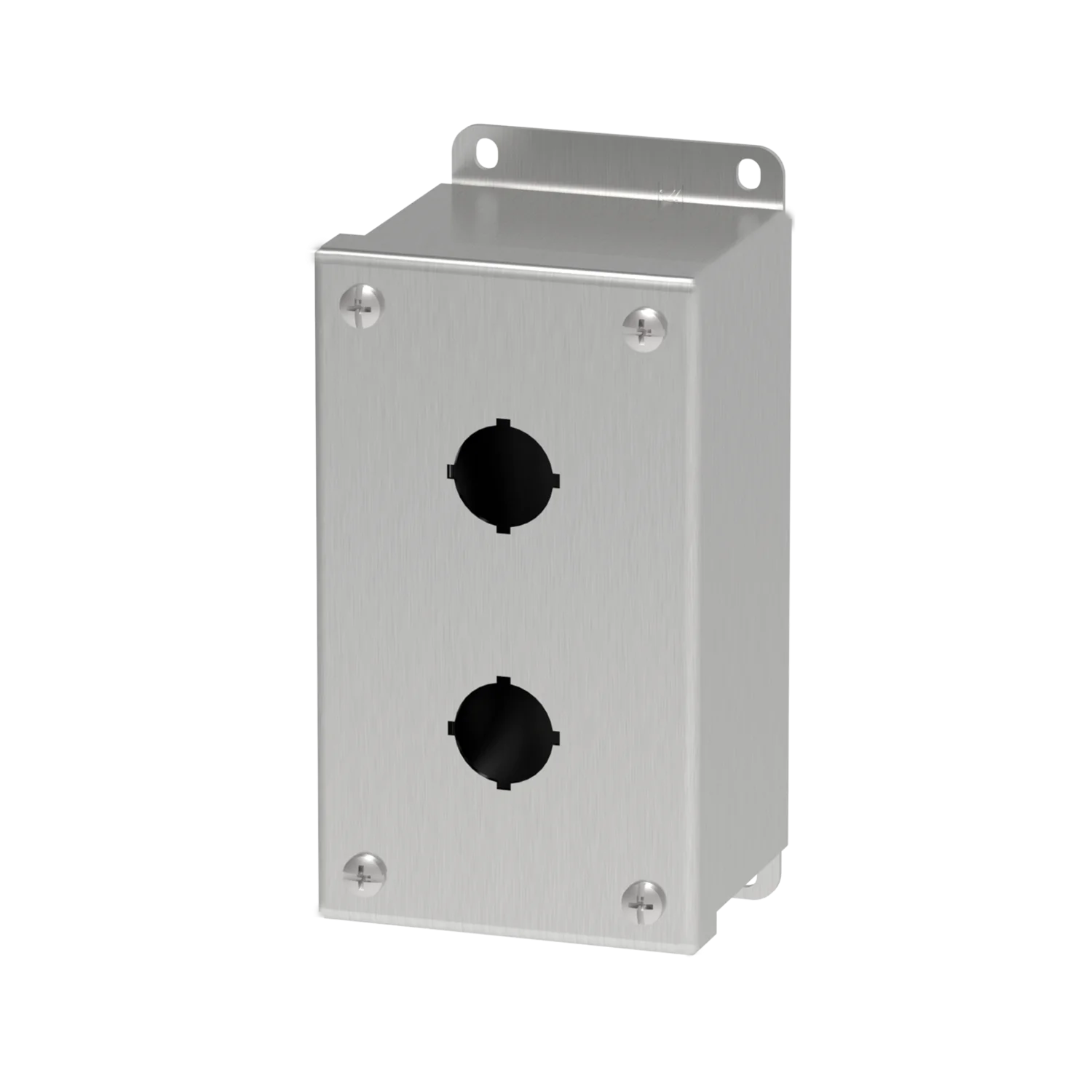

The HOFFMAN E2PBGSS is a pushbutton enclosure designed to house 30.5-mm or 22.5-mm oil-tight pushbuttons, switches, and pilot lights. This enclosure provides protection against dirt, dust, oil, and water. It features continuously welded and ground smooth seams and captivated cover screws that thread into sealed wells.

• Prepunched 30.5mm or 22.5mm holes
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

This enclosure is ideal for use with oil-tight pushbuttons, switches, and pilot lights, offering protection in harsh environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E2PBGSS

Technical Specifications

• Article Number: 59400
• Height: 5.75 Inch
• Width: 3.25 Inch
• Depth: 2.75 Inch
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 14ga
• Hole Size: 22 mm
• Hole Quantity: 2
• Gauge: 14
• Number of Holes: 2 Hole
• Type: Pushbutton Inline Enclosure
• Cover Type: Screw
• Standard: 12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
• Size: 2PB x 22.5mm
• Length: 6-3/4 Inch
• Cable Entry: No Cable Entry
• Color: Natural
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• IP Rating: IP66
• Manufacturer Part Number: E2PBGSS
• Series: Pentair Stainless Series
• IP/NEMA Rating: IP66, NEMA 4X
• UNSPSC: 39121326
• Approval: UL 508A, CUL, CSA C22.2
• Nema Rating: NEMA 4X/12/13, IP66
• Device Hole Size: 22.5 Millimeter Diameter
• Device Hole Location: 1-Row Vertical
• Material Specification: 16 Gauge
