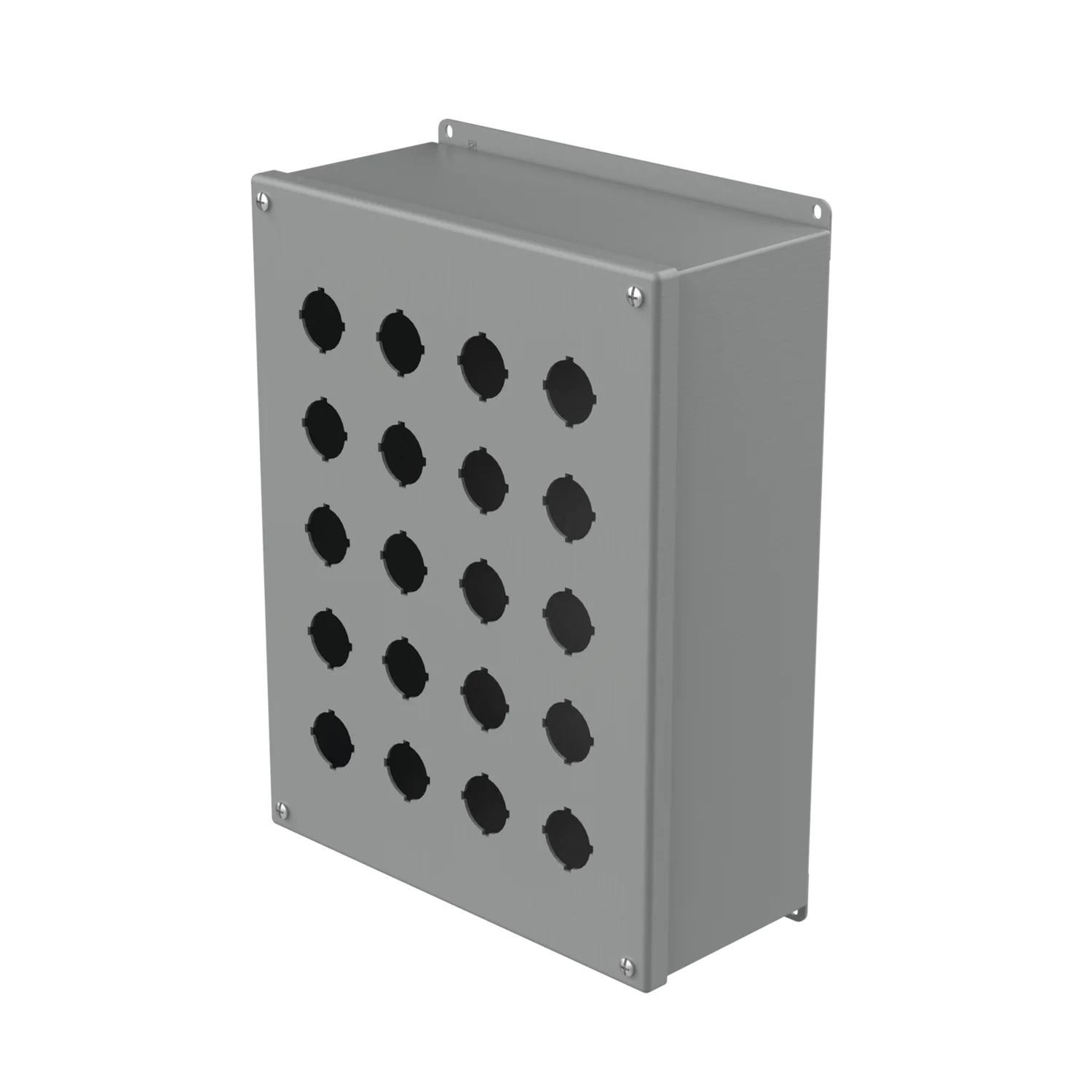

Hoffman E20PBX Extra-Deep Pushbutton Enclosure 20PB x 30.5mm

Product Description

The HOFFMAN E20PBX Extra-Deep Pushbutton Enclosure is designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks. Ideal for industrial environments, this enclosure provides robust protection for electrical components. It features a hinged cover for easy access and is suitable for wall mounting.

• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells
• Bonding provision on cover

Product Highlights

Durable steel construction with oil-resistant gasket. External welded-on mounting brackets for easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E20PBX
• Country of Origin: Mexico

Technical Specifications

• Article Number: 58210
• Height: 14in
• Width: 10.75in
• Depth: 4.75in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 1.9 mm
• Hole Size: 1.2in
• Hole Quantity: 20
• Mounting: 14.50 x 9.88in
• Overall Dimensions: 15.00 x 10.97in
• UPC: 783510582104
• EAN: 8713574255227
• Bulletin Number: PB1
• GTIN: 00783510582104
• UNSPSC: 39121326
• Country of Origin: Mexico
• Cover Type: Hinged
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Number of Outlets: 20
• Series: PB1
• Type: Extra Deep
• BABA Compliant: No
• Gauge: 14 AWG
• Size: 20PB x 30.5mm
• Standard: CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510582104
• Product UPC: 78351058210
• Length: 15 Inch
