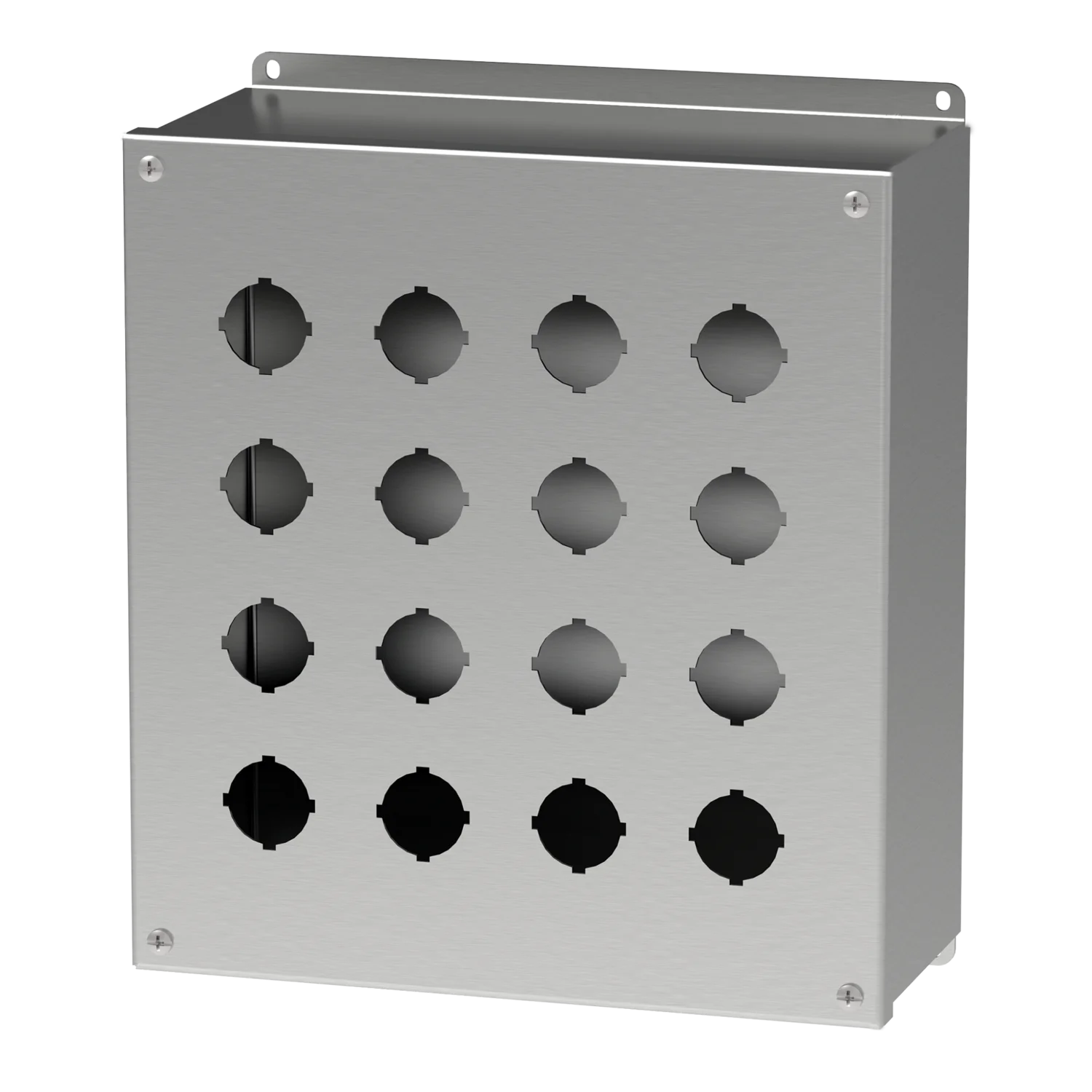

Hoffman E16PBXSS Extra-Deep Pushbutton 16PB x 30.5mm

Product Description

The HOFFMAN E16PBXSS is designed to house 30.5-mm oil-tight pushbuttons, switches, and pilot lights. This enclosure provides protection against dirt, dust, oil, and water. The extra-deep design accommodates additional contact blocks for pushbuttons. It features ground smooth continuously welded seams.

• Extra-deep design accommodates additional contact blocks for pushbuttons.
• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells

Product Highlights

This pushbutton enclosure is ideal for industrial environments requiring robust protection for electrical components.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E16PBXSS
• Country of Origin: Mexico

Technical Specifications

• Article Number: 59600
• Height: 11.75in
• Width: 10.75in
• Depth: 4.75in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 14ga
• Hole Quantity: 16
• Gauge: 14 AWG
• Number of Holes: 16 Hole
• Size: 16PB x 30.5mm
• Applications: Controls and Drives; Corrosive Environments; Hygienic Environments
• Standard: 12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
• Type: 16-Hole
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Color: Unpainted
• Length: 12-3/4 Inch
• Cable Entry: No Cable Entry
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• Hole Size: 30 mm
• IP Rating: IP66
• Manufacturer Part Number: E16PBXSS
• Series: Pentair Stainless Series
• Enclosure Material: 304 Stainless Steel
• NEMA Enclosure Rating: NEMA 4X
• Closure Method: Captive Screws
• Cover Closure Type: Screw On
• Metallic / Non-Metallic: Metallic
• Cover Style: Solid
• Nominal Width: 10-3/4 in
• Nominal Height: 11-3/4 in
• Nominal Depth: 4-3/4 in
• Number of Outlets: 16
• Cover Type: Hinged
• Volume: 157.2 cubic inches
