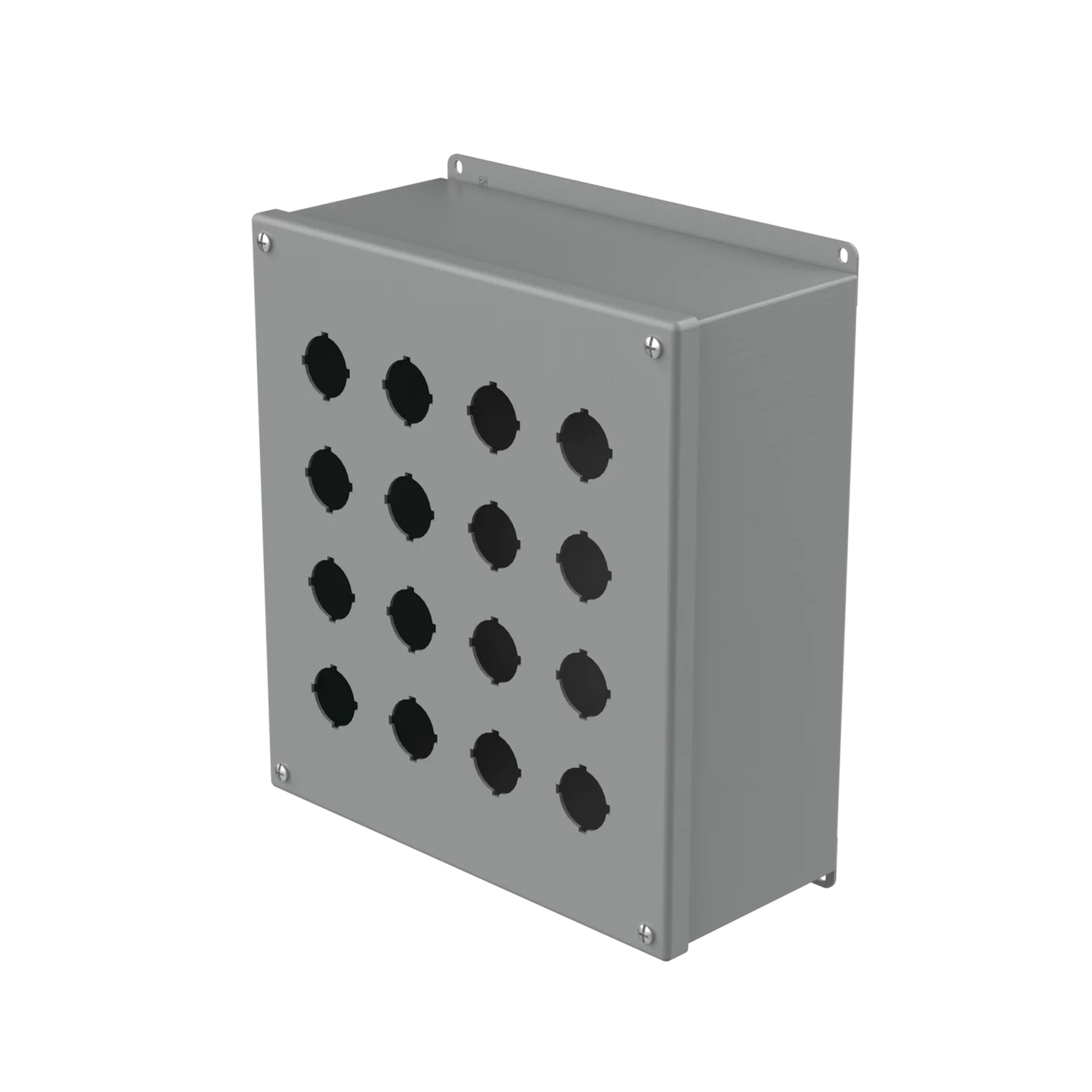

Hoffman E16PBX Pushbutton Enclosure 16 Hole (30.5mm)

Product Description

The HOFFMAN E16PBX is an extra-deep pushbutton enclosure designed to hold 30.5-mm and 22.5-mm pushbuttons and switches. Its depth of 4.75 inches (121 mm) accommodates additional pushbutton contact blocks. It features continuously welded and ground smooth seams and captivated cover screws that thread into sealed wells.

• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells
• Bonding provision on cover

Product Highlights

This enclosure is ideal for indoor use and provides a NEMA Type 12, 13 and IP65 protection rating.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E16PBX
• Country of Origin: United States

Technical Specifications

• Article Number: 58200
• Height: 11.75in
• Width: 10.75in
• Depth: 4.75in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Hole Size: 1.2in
• Hole Quantity: 16
• Mounting: 12.25 x 9.88in
• UPC: 783510582005
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: PB1
• Enclosure Hinge Type: Standard Hinge
• Enclosure Interior Color: Gray
• Enclosure Composition: Painted Steel
• Enclosure Door Type: Pushbutton 30.5 mm
• Component: Push Button Enclosure
• Enclosure Environment Rating: Indoor
• Enclosure Latch Type: Screw
• Push Button Number: 16
• Enclosure Number of Doors: 1 Door
• Enclosure NEMA Rating: NEMA Type 13
• Manufacturer: Hoffman
• Approximate Height: 12 in
• Approximate Width: 11.00 in
• Cable Entry: No Cable Entry
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• IP Rating: IP65
• Manufacturer Part Number: E16PBX
• Number of Holes: 16
• Series: Pentair Series
• Type: Pushbutton Array Enclosure
• Protection Rating: NEMA Type 12; NEMA Type 13; IP65
• Country of Origin: United States
