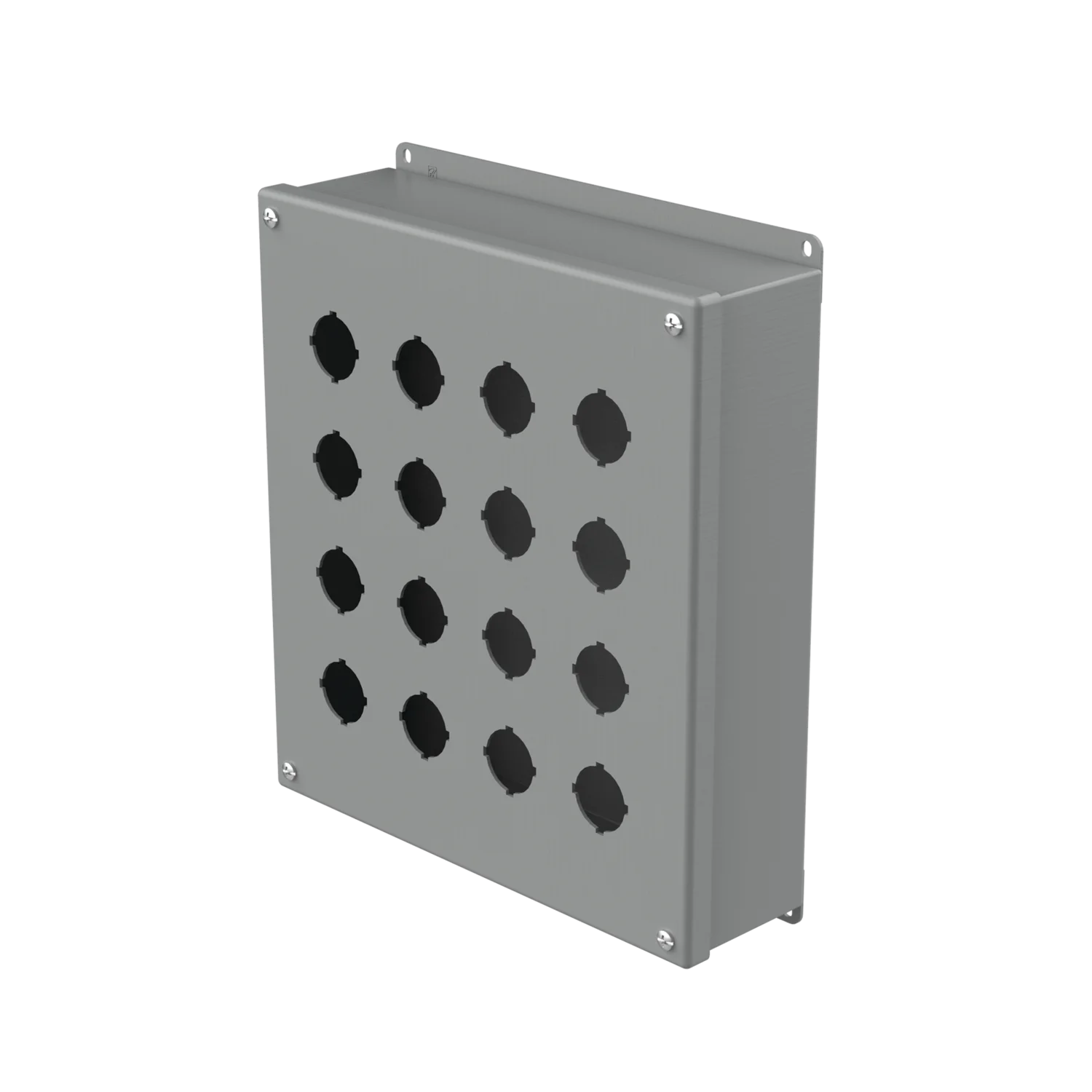

Hoffman E16PB Pushbutton Enclosures, Type 12, 16PB x 30.5mm

Product Description

The HOFFMAN E16PB pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches. Features continuously welded and ground smooth seams, captivated cover screws that thread into sealed wells, and a bonding provision on the cover. A grounding stud is located on the body.

• Seams continuously welded and ground smooth
• Captivated cover screws thread into sealed wells
• Bonding provision on cover

Product Highlights

Designed for indoor use, the Hoffman E16PB enclosures feature external welded-on mounting brackets for easy installation and factory stamped 4-way pushbutton holes.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: E16PB
• Country of Origin: MX - Mexico

Technical Specifications

• Controls and Drives: Indoor
• Color Coding: ANSI 61
• Gauge: 14 AWG
• Material: Steel
• Number of Holes: 16 Hole
• Size: 16PB x 30.5mm
• Standard: CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
• Type: 16 Hole, Dust-Resistant
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Product UPC: 78351058090
• Used With: 30.5 mm Push Button
• Depth: 3 Inch
• Height: 11-3/4 Inch
• Hole Size: 30.5 mm
• Length: 14 Inch
• Thickness: 1.9 mm
• Width: 10.75 in
• Article Number: 58090
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Hole Quantity: 16
• Enclosure Depth: 3"
• Enclosure Hinge Type: Standard Hinge
• Enclosure Interior Color: Yellow
• Enclosure Composition: Painted Steel
• Enclosure Door Type: Pushbutton 30.5 mm
• Enclosure Width: 10.75"
• Enclosure Height: 11.75"
• Component: Push Button Enclosure
• Enclosure Environment Rating: Indoor
• Enclosure Latch Type: Screw
• Push Button Number: 16
• Enclosure Number of Doors: 1 Door
• Enclosure NEMA Rating: NEMA Type 13
• Manufacturer: Hoffman
