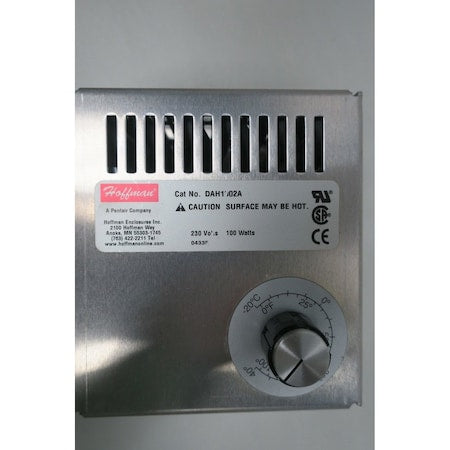

Hoffman DAH1002A Electric Heater 100W

Product Description

The HOFFMAN DAH1002A electric heater protects mechanical, electrical, and electronic equipment from low temperatures, condensation, and corrosion. This thermostatically controlled, fan-driven heater maintains a stable enclosure temperature. The fan draws cool air from the bottom and passes it across the thermostat and heating element before releasing it into the enclosure cavity. Heated air is discharged through the top of the unit.

• Thermostat range adjustable from 0 F to 100 F (-18 C to 38 C)
• Four 10-32 x self-tapping screws are included with each heater
• Ball bearing fan

Product Highlights

Protects equipment from low temperatures, condensation, and corrosion. Maintains a stable enclosure temperature with its thermostatic control and fan-driven design.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: DAH1002A
• Country of Origin: Unknown

Technical Specifications

• Article Number: 70540
• Height: 5.5in
• Width: 4in
• Depth: 4in
• Nominal Voltage: 220V
• Heating Capacity: 100W
• Voltage AC: 200V
• Max Current: 0.49A
• Material: Aluminum
• Finish: Brushed
• Nominal Watts: 100 W
• Brand: nVent HOFFMAN
• Frequency: 50/60 Hz
• Manufacturer Part Number: DAH1002A
• Power Dissipation: 100 W
• Series: DAH Series
• Type: Enclosure Heaters
• Voltage Rating: 200 - 250 VAC
• Amperage Rating: 0.49 A
• Application: Controls and Drives; Power Distribution
• Catalog Number: DAH1002A
• Color: Unpainted
• Current: 0.49 A
• Housing Material: Aluminum
• Length: 6.3000 in
• Standards: CE Certified, LR42186 CSA Certified, RoHS Complaint, UL E61997, 508A Listed
• UNSPSC: 40101811
• Manufacturer: HOFFMAN ENCLOSURES
• Nominal Current: 0.98 A
• Output Power: 100W
• Voltage Rating VAC: 230V
