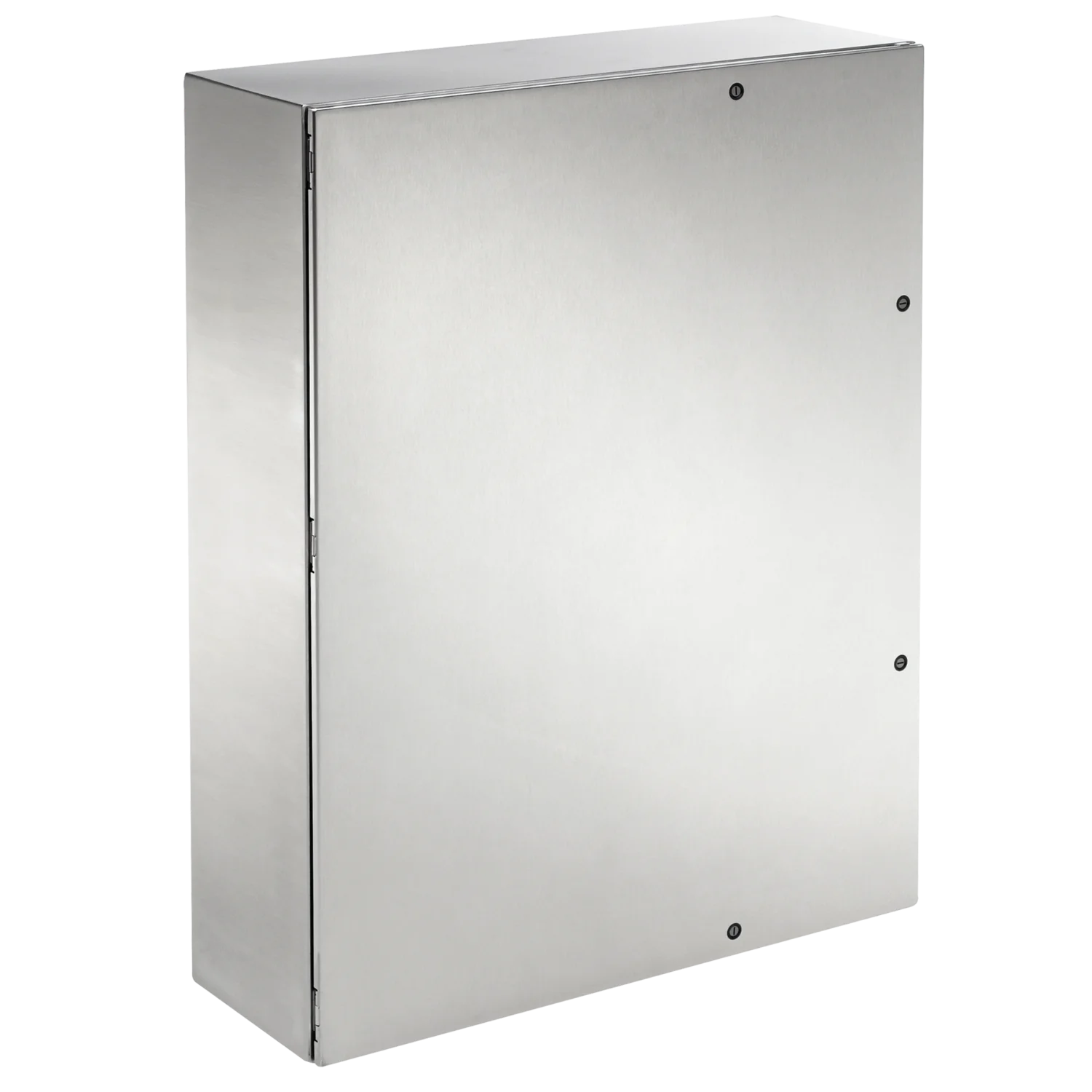

Hoffman CSD483610SSR Concept Wallmount Multi 1/4-Turn Latch 4X, 48x36x10

Product Description

The HOFFMAN CSD483610SSR Concept wallmount enclosure is designed for indoor or outdoor applications needing protection from chemicals and water. These enclosures house larger controls and feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure.

• Seams continuously welded and ground smooth
• Minimum-width body flange provides maximum body opening
• Corner formed doors
• External formed 90-degree body flange
• Stainless steel quarter-turn latches with flush slotted insert provided on three sides of enclosure door

Product Highlights

The Concept enclosure features an integral door ramp that ensures the door gasket sealing surface aligns with the enclosure body for secure closure.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD483610SSR
• Country of Origin: US - United States

Technical Specifications

• Article Number: 14831
• Height: 48 in
• Width: 36 in
• Depth: 10 in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Body Thickness: 14ga
• Door Thickness: 14ga
• Mounting: 46.50 x 34.50in
• Latch Quantity: 4
• Latch Type: Quarter-Turn
• UPC: 783510148317
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Brand: nVent HOFFMAN
• Cover Locking: Quarter-Turn Latch
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• Family Name: CONCEPT Family
• Manufacturer Part Number: CSD483610SSR
• Series: Concept with Additional Quarter-Turn Latches, Type 4X Series
• UPC Code: 78351014831
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121324
• NEMA Rating: 3R, 4, 4X, 12, 13
• Application: Chemical & Water Corrosion Protection
• Enclosure Cover Type: Single Solid Door
• Latch: Quarter-Turn
• Style: Quarter-turn
• Nema Rating: NEMA 3R/4/4X/12/13, IP66
• Service Type: Indoor/Outdoor
• Material Specification: 14 Gauge
• Type: 1-Door
• Cover Type: Stainless Steel Hidden Hinged, Hinge Pin, Seamless Foam-In-Place Gasketed, (4) 1/4 Turn Latch
• Approval: UL 508A, CUL, CSA C22.2
• Back Panel: CP4836, CP4836G
