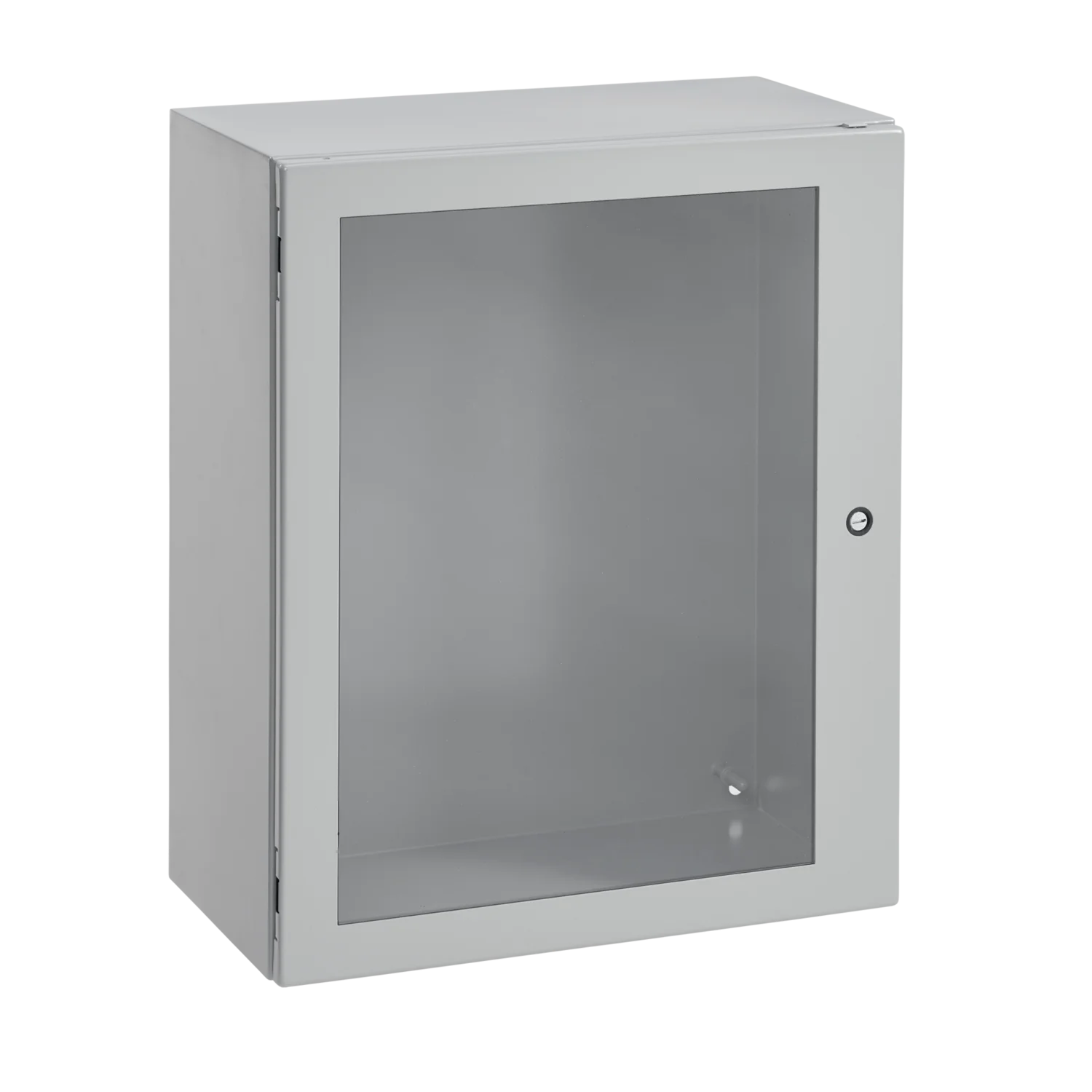

Hoffman CSD302410W Concept Window-Door Enclosure 30.00x24.00x10.00

Product Description

The HOFFMAN CSD302410W Concept Enclosures are ideal for machine control applications, featuring streamlined styling and flush quarter-turn latches. These enclosures have an attractive and durable finish. They measure 30.00x24.00x10.00 inches and are made of steel with continuously welded and ground smooth seams.

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

Ideal for machine control, the HOFFMAN Concept Enclosures offer a durable and aesthetically pleasing solution with easy installation and robust construction.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD302410W
• Country of Origin: US - United States

Technical Specifications

• Article Number: 37789
• Height: 30 in
• Width: 24 in
• Depth: 10 in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Window Size: 26.49 x 18.07in
• Mounting: 28.50 x 22.50in
• Latch Quantity: 2
• UPC: 783510377892
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121324
• Brand: Concept
• Application: Machine Control Applications
• Enclosure Cover Type: Single Door with Window
• Latch: Quarter-Turn
• Color Family: Gray
• GTIN: 00783510377892
• Cover Type: Concealed Hinged
• Lock: Quarter Turn Latch
• Mounting Type: Wall
• NEMA Rating: NEMA 4/12
• Panel Size: 22.2 in W x 28.2 in H
• Series: Concept Type 4 and 12 Series
• Type: Junction Box
• BABA Compliant: Yes
• Approximate Depth: 10 in
• Approximate Height: 30 in
• Approximate Width: 24 in
• Cover Locking: Quarter-Turn Latch
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• Family Name: CONCEPT Family
• IP Rating: IP66
• Manufacturer Part Number: CSD302410W
