NVENT Hoffman CSD242410WSS Concept Window Door 24x24x10

Hoffman CSD242410WSS Concept Window Door 24x24x10

Brand: NVENT
SKU: CSD242410WSS
Availability: In Stock

Ships same day if ordered by 12 pm

$3,666.60
$3,666.60
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

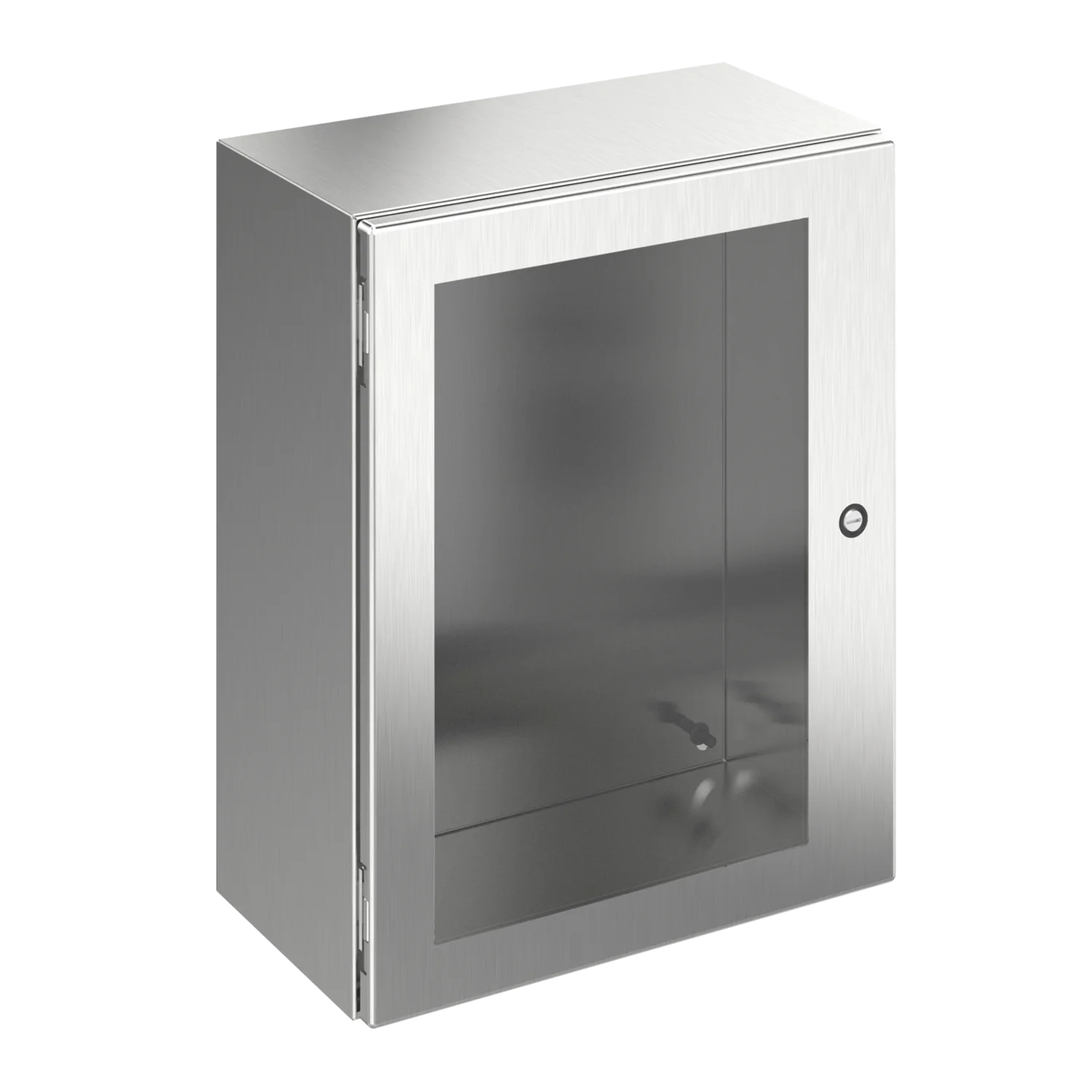

The HOFFMAN CSD242410WSS Concept enclosure is designed for indoor or outdoor applications needing protection from chemicals and water. It features streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Ideal for machine control applications.

  • Window pre-mounted in door of enclosure
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange

Product Highlights

The enclosure has a brushed finish, a seamless foam-in-place gasket, and a self-grounding latch system.

Product Information

Standard Information

  • Brand: HOFFMAN
  • Manufacturer Part Number: CSD242410WSS
  • Country of Origin: US - United States
Technical Specifications
Article Number
12885
Height
24 in
Width
24 in
Depth
10 in
Material
Stainless Steel 304
Finish
Brushed #4
Body Thickness
1.59 mm
Door Thickness
14ga
Window Size
20.74 x 17.68in
Mounting
Internal Holes
Latch Type
Quarter-Turn
UPC
783510128852
Packing Quantity
1
Bulletin Number
CWS
Applications
Controls and Drives; Corrosive Environments
Body Gauge
16
Door Gauge
14
IP Rating
66
Number of Latches
2
Size
24.00x24.00x10.00 in
Standard
12,13,4,4X,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,File No. E61997,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Style
Quarter-turn
Type
Stainless Steel Wall Mounted Industrial Enclosures
Brand
nVent Hoffman
Sub Brand
Concept
12-Digit UPC
783510128852
Color
Unpainted
GTiN
00783510128852
Product UPC
78351012885
Length
29 Inch
UNSPSC Code
31260000
Approximate Depth
10 in
Approximate Height
24 in
Approximate Width
24 in
Cover Locking
Quarter-Turn Latch
Cover Mounting
Hinged
Family Name
CONCEPT Family
Manufacturer Part Number
CSD242410WSS
Series
Concept Type 4X Series
Unit of Measure
EA
UPC Code
78351012885
NEMA Rating
4X
Application
Chemical & Water Corrosion Protection
Mounting Type
Wall
Enclosure Cover Type
Single Door with Window
Latch
Quarter-Turn
ECCN
EAR99
UNSPSC
39121324
Cover Latching
Latch, 2x1/4 Turn Slot
Optional Panel
CP2424
NEMA
4X
Material Thickness
16 Gauge
Material Specification
Type 304
Cover Type
Window
