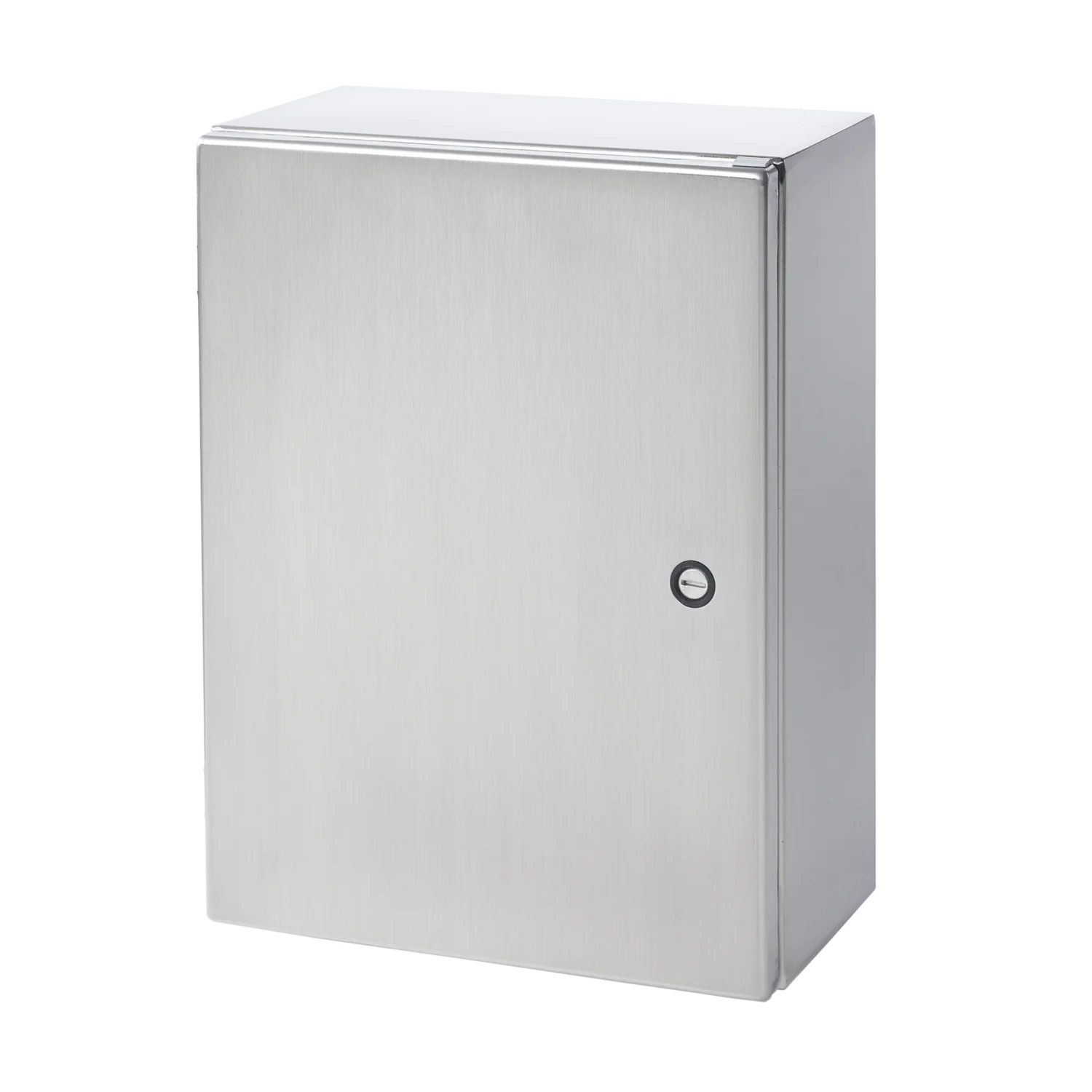

Hoffman CSD242410SS Concept Wallmount 24x24x10

Product Description

The HOFFMAN CSD242410SS Concept Wallmount enclosure is designed for indoor or outdoor applications needing protection from chemicals and water. It features streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. This enclosure is ideal for housing electrical and pneumatic components.

• Minimum-width body flange provides maximum body opening
• External formed 90-degree body flange
• Panel mounting studs fit optional Concept panels and other accessories

Product Highlights

The Hoffman Concept Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD242410SS
• Country of Origin: USA

Technical Specifications

• Article Number: 12865
• Height: 610 mm
• Width: 610 mm
• Depth: 254 mm
• Material: Stainless Steel 304
• Finish: Brushed #4
• Body Thickness: 1.59 mm
• Door Thickness: 14ga
• Latch Quantity: 2
• Latch Type: Quarter-Turn
• Enclosure Width: 24 in
• Enclosure Height: 24 in
• Enclosure Depth: 10 in
• Mount: Hinged
• Body Gauge: 16
• Cover Type: Hinged
• Door Gauge: 14
• Enclosure: 3R
• IP Rating: 66
• Mounting Type: Wall
• Number of Latches: 2
• Size: 24.00x24.00x10.00 in
• Standard: 12,13,4,4X,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,File No. E61997,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
• Style: Quarter-turn
• Type: Single Lock, Single Door
• Brand: nVent Hoffman
• Sub Brand: Concept
• Length: 28.8 Inch
• IP/NEMA Rating: IP66, NEMA 4X, NEMA 3
• Special Program: Hoffman On Demand
