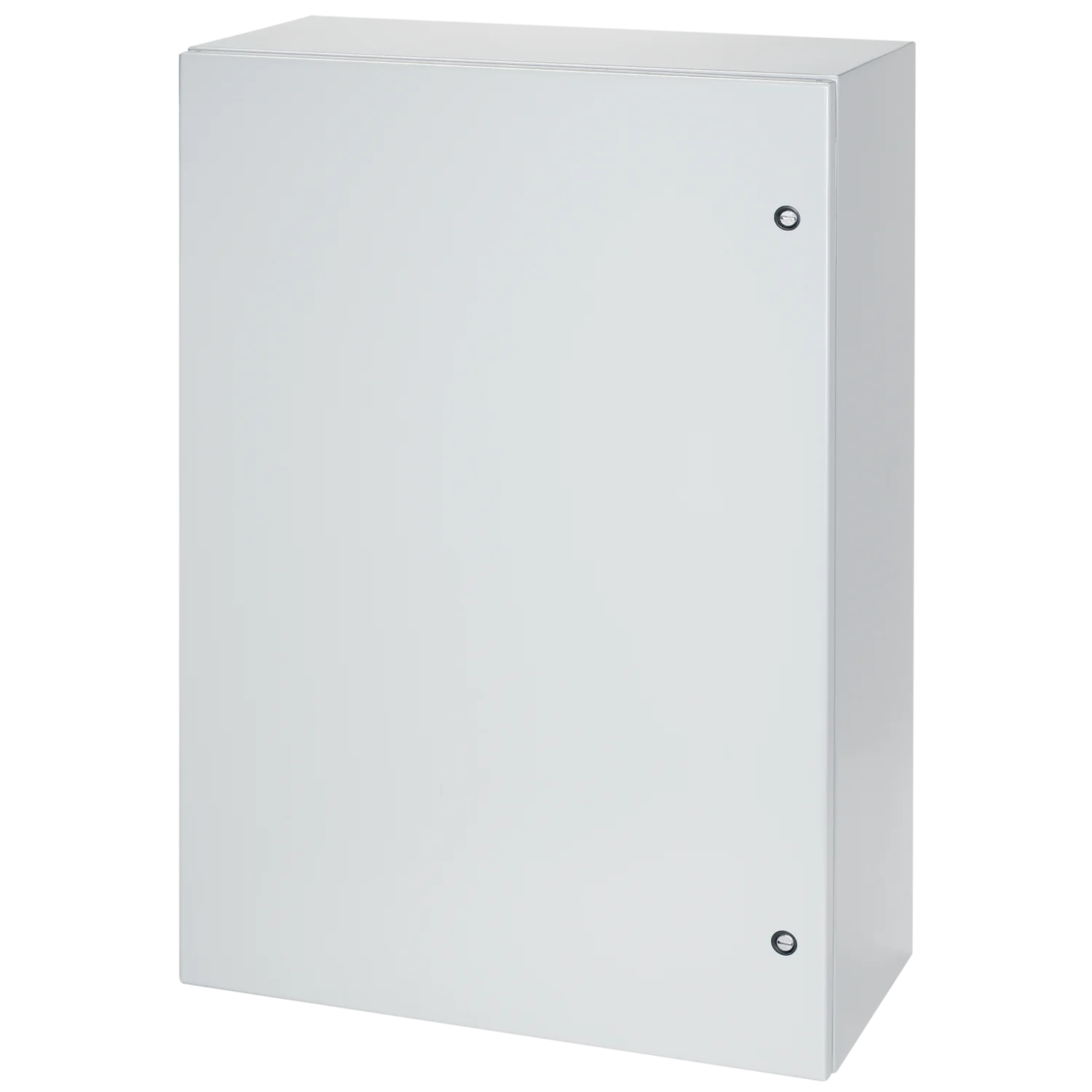

Hoffman CSD20166 Concept Wall-Mount Enclosure 20.00X16.00X6.00

Product Description

The Hoffman CSD20166 Concept™ Wall-Mount Enclosure is ideal for machine control applications. It features streamlined styling, flush quarter-turn latches, and a durable finish. Available in solid or window single-door and two-door landscape, flush-mount and sloped-top versions for application and mounting flexibility.

• Seams continuously welded and ground smooth
• Corner-formed doors
• Simple easy-to-remove and install hinge pins with built-in captivation clip

Product Highlights

The Hoffman CSD20166 enclosure is designed for machine control applications, offering flexibility and a durable finish.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD20166
• Country of Origin: USA

Technical Specifications

• Type: 4/12
• Brand: Hoffman
• Material: Steel
• Description: Wall Mount Enclosure
• Concept Panel: CP2016
• Latches Style: Quarter-Turn
• A x B x C: 20.00 x 16.00 x 6.00 in
• Body Gauge: 18 ga
• Door Gauge: 16 ga
• Conductive Panel: CP2016G
• Number of Latches: 1
• Mounting G x H: 18.50 x 14.50 in
• Manufacturers Part Number: CSD20166
• Height: 20in
• Width: 16in
• Depth: 6in
• Finish: Powder Coated
• Color Code: ANSI 61
• Body Thickness: 16ga
• Latch Quantity: 1
• UPC: 783510773304
• Category: Boxes
• Design: Hinged Door, Lid
• Mfr: Hoffman Enclosures, Inc.
• Packaging: Bulk
• Part Status: Active
• Thickness: 18 Gauge
• Container Type: Box
• Features: Sealing Gasket, Wall Mount
• Ratings: IP66, NEMA 4,12,13, UL-508A
• Overall Height: 20 in
• Closure Method: 1/4-Turn Latch
• Compatible Panel Model Number: CP2016; CP2016G
• Cover Closure Type: Hinged
• Cover Style: Solid
• Displayed Brand: HOFFMAN
• Enclosure Material: Steel
• Environment: Washdown
• Gasket Material: Seamless Foam-In-Place
• IP Rating: IP66
• Includes: Panel Grounding Hardware and Sealing Washers; Panel Mounting Nuts
• Knockouts: Not Included
• Mounting Type: Wall
• NEMA Enclosure Rating: 4; 12; 13
• Nominal Depth: 6 in
• Nominal Height: 20 in
• Nominal Width: 16 in
• Overall Depth: 6 in
• Overall Width: 16 in
• Product Type: Concept Single Door Enclosure
• Standards: cUL Listed Per CSA C22.2 No 94; File No E61997; IEC 60529; NEMA/EEMAC Type 4, 12, 13; UL 508A Listed
• UNSPSC: 39121301
• Color: Gray
