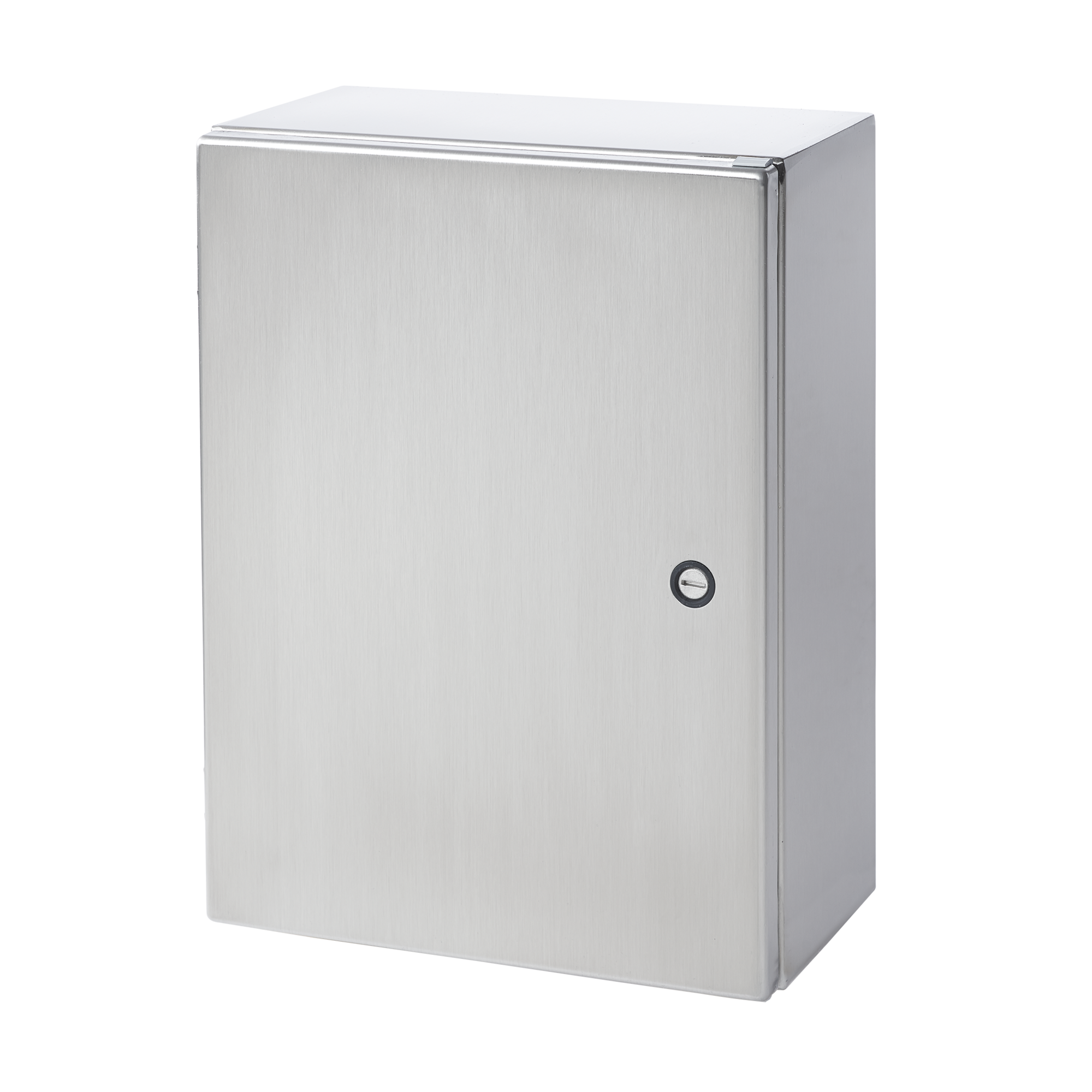

Hoffman CSD201610SS Concept Wallmount 20x16x10

Product Description

The HOFFMAN CSD201610SS Concept Wallmount enclosure is designed for indoor or outdoor applications needing corrosion protection from chemicals and water. It features streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Ideal for machine control applications.

• Minimum-width body flange provides maximum body opening
• External formed 90-degree body flange
• Panel mounting studs fit optional Concept panels and other accessories

Product Highlights

The Concept Wallmount enclosure features quarter-turn latches, a seamless foam-in-place gasket, and a self-grounding latch system.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD201610SS
• Country of Origin: United States

Technical Specifications

• Article Number: 12858
• Height: 20in
• Width: 16in
• Depth: 10in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Body Thickness: 1.59 mm
• Door Thickness: 16ga
• Mounting: 18.50 x 14.50in
• Latch Quantity: 1
• Latch Type: Quarter-Turn
• UPC: 783510128586
• Applications: For Indoor or Outdoor Applications that Require Corrosion Protection from Chemicals and Water
• Body Gauge: 16
• Body Material Thickness: 16 ga
• Cover Type: Hinged
• Door Gauge: 16
• Enclosure: 3R
• IP Rating: IP66
• Number of Latches: 1
• Size: 20.00x16.00x10.00 in
• Standard: 12,13,4,4X,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,File No. E61997,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
• Style: Quarter-turn
• Type: Single Lock, Single Door
• Brand: nVent Hoffman
• Sub Brand: Concept
• 12-Digit UPC: 783510128586
• Product UPC: 78351012858
• Cover Locking: Quarter-Turn Latch
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• Family Name: CONCEPT Family
• Manufacturer Part Number: CSD201610SS
• Series: CWS
• NEMA Enclosure Rating: 12, 3R, 4, 4X
• Enclosure Material: 304 Stainless Steel
• Closure Method: 1/4 Turn Latch
• Knockouts: No
• Metallic / Non-Metallic: Metallic
• Mounting Type: Wall
• Cover Style: Solid
• Interior Panel: 32FK14
• Enclosure Cover Features: 1/4 Turn Latch with Screw Driver Slot
• Includes: Grounding Hardware, Sealing Washer
• Gasket: Polyurethane
• Standards: cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, UL 508A Listed
• Metal Gauge: 14/16 ga
• Features: 4X Watertight, corrosion-resistant
• Environment - MERCH: Washdown and Corrosion Resistant
• Includes Knockouts: Knockouts Not Included
• Gasket Material: Seamless Foam-In-Place
• Compatible Panel Model Number: CP2016, CP2016G
• Nominal Width: 16 in
• Nominal Height: 20 in
• Nominal Depth: 10 in
