Hoffman CSD162010SS Concept Wallmount 16x20x10

Product Description

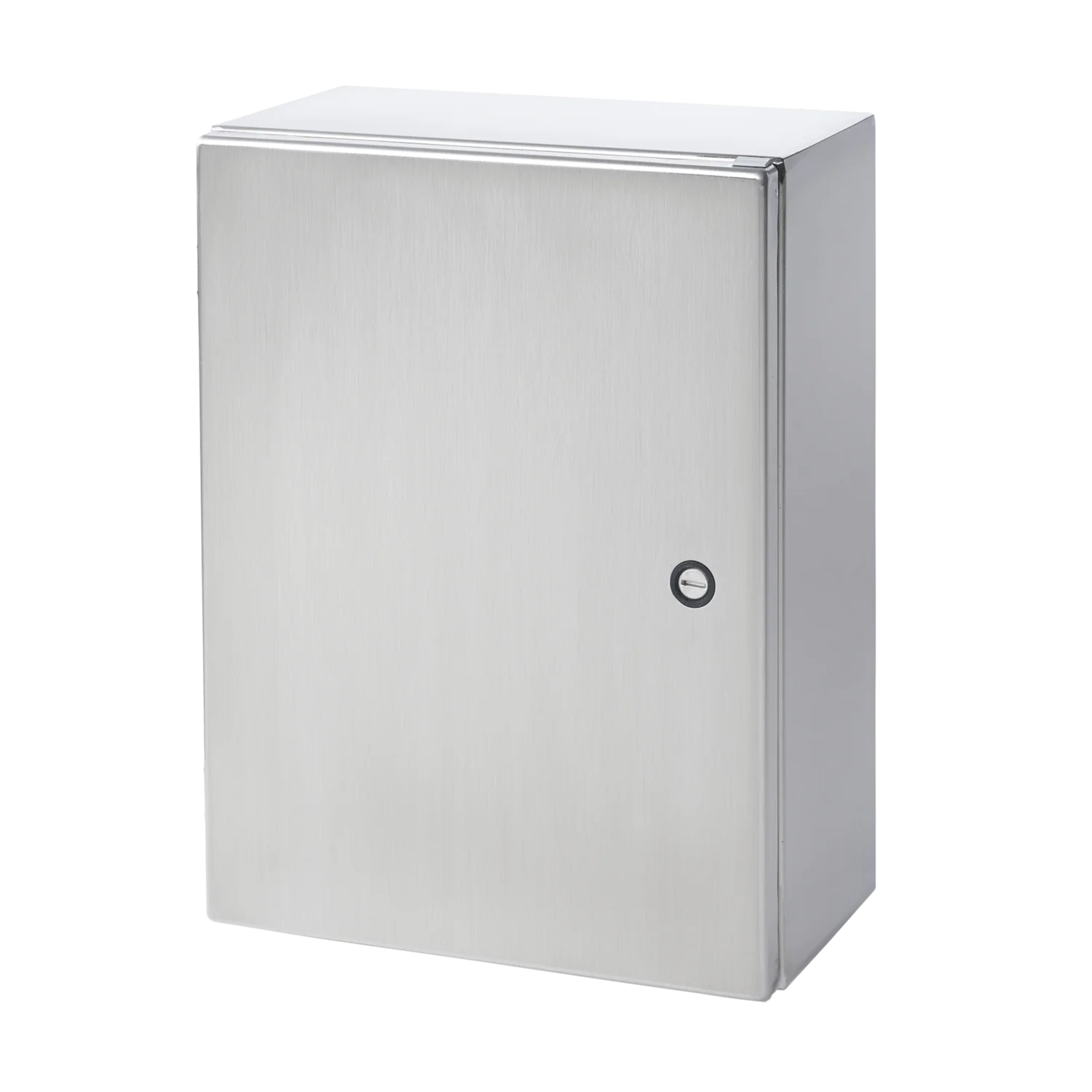

The HOFFMAN CSD162010SS Concept Wallmount enclosure is designed for indoor or outdoor applications requiring corrosion protection from chemicals and water. These enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Ideal for machine control applications.

• Minimum-width body flange provides maximum body opening
• External formed 90-degree body flange
• Panel mounting studs fit optional Concept panels and other accessories

Product Highlights

The enclosure has a brushed finish and is made of stainless steel 304. It includes a hardware kit with panel-mounting nuts and grounding hardware.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD162010SS
• Country of Origin: US - United States

Technical Specifications

• Article Number: 12857
• Height: 16 in.
• Width: 20 in.
• Depth: 10 in.
• Material: Stainless Steel 304
• Finish: Brushed #4
• Body Thickness: 1.59mm
• Door Thickness: 1.59mm
• Mounting: 368 x 470mm
• Latch Quantity: 1
• Latch Type: Quarter-Turn
• UPC: 783510128579
• EAN: 8713574312456
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• NEMA Rating: 3R, 4, 4X, 12
• Application: Chemical & Water Corrosion Protection
• Enclosure Cover Type: Single Solid Door
• Latch: Quarter-Turn
• Style: Quarter-turn
• UNSPSC Code: 31260000
• Approximate Depth: 10 in
• Approximate Height: 16 in
• Approximate Width: 12 in
• Brand: nVent HOFFMAN
• Cover Locking: Quarter-Turn Latch
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• Family Name: CONCEPT Family
• IP Rating: IP66
• Manufacturer Part Number: CSD162010SS
• Series: Concept Type 4X Series
• Type: Junction Box
• Unit of Measure: EA
• UPC Code: 00783510128579
• Weight: 27.39999962 lbs
