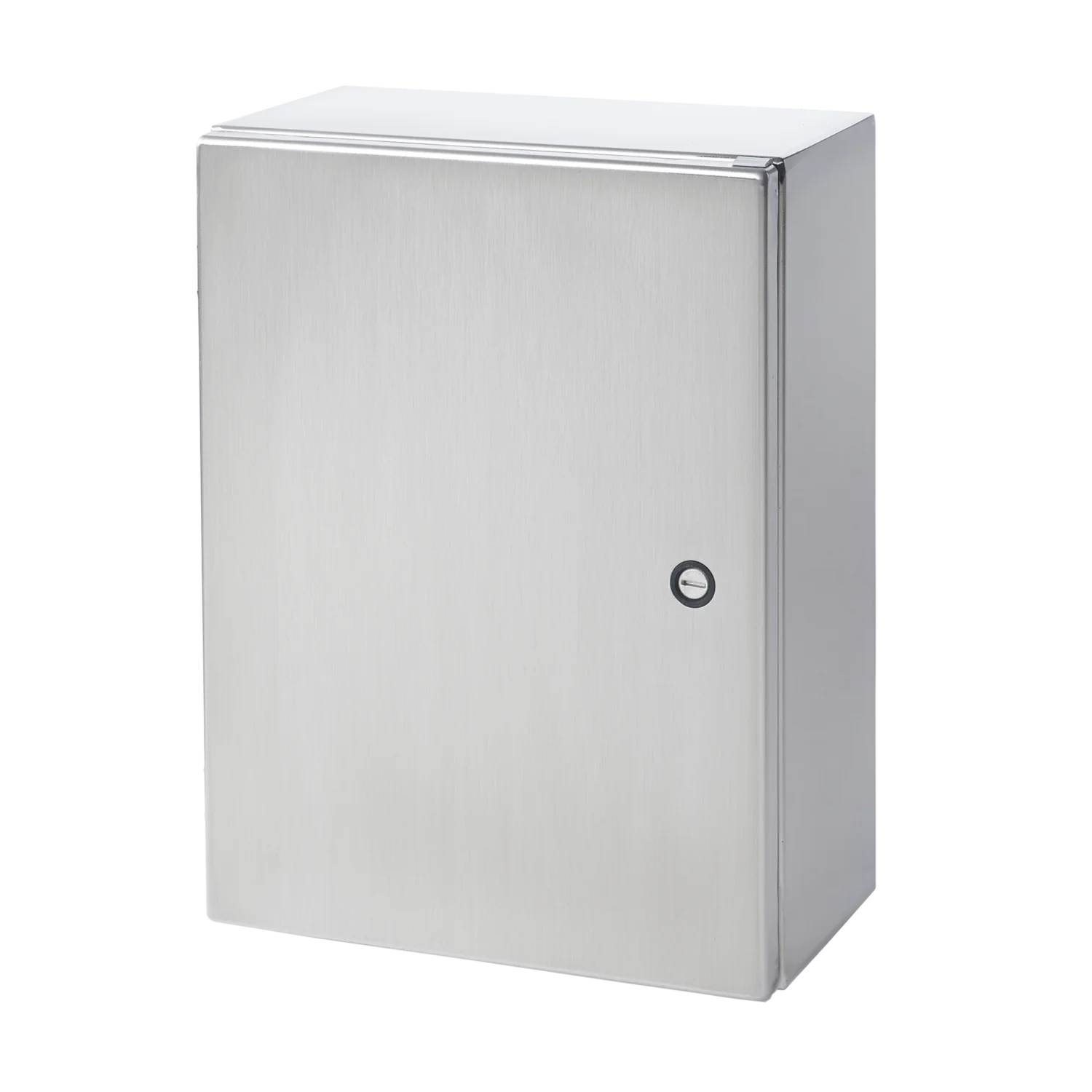

Hoffman CSD161610SS Concept Wallmount 16x16x10

Product Description

The HOFFMAN CSD161610SS Concept Wallmount enclosure is designed for indoor or outdoor applications requiring corrosion protection from chemicals and water. It features streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Ideal for machine control applications.

• Minimum-width body flange provides maximum body opening
• External formed 90-degree body flange
• Panel mounting studs fit optional Concept panels and other accessories

Product Highlights

The enclosure has a seamless foam-in-place gasket and a self-grounding latch system with double seal.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CSD161610SS

Technical Specifications

• Article Number: 12856
• Height: 16in
• Width: 16in
• Depth: 10in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Body Thickness: 16ga
• Door Thickness: 16ga
• Mounting: 14.50 x 14.50in
• Latch Quantity: 1
• Latch Type: Quarter-Turn
• UPC: 783510128562
• Brand Name: nVent Hoffman
• Sub Brand: Concept
• Item Name: Enclosure
• Type: Single Lock, Single Door
• Cover Type: Hinged
• NEMA Rating: NEMA/EEMAC Type 3R, 4, 4X, 12, 13, IP66
• Mounting Type: Wall
• Standards: UL, cUL Listed, UL 508A, UL File Number E61997, CSA File Number 42186, CSA C22.2 No. 94
• Application: For Indoor or Outdoor Applications that Require Corrosion Protection from Chemicals and Water
• Cover Locking: Quarter-Turn Latch
• Enclosure Mounting: Panel Mount
• Family Name: CONCEPT Family
• IP Rating: IP66
• Manufacturer Part Number: CSD161610SS
• Series: Concept Type 4X Series
