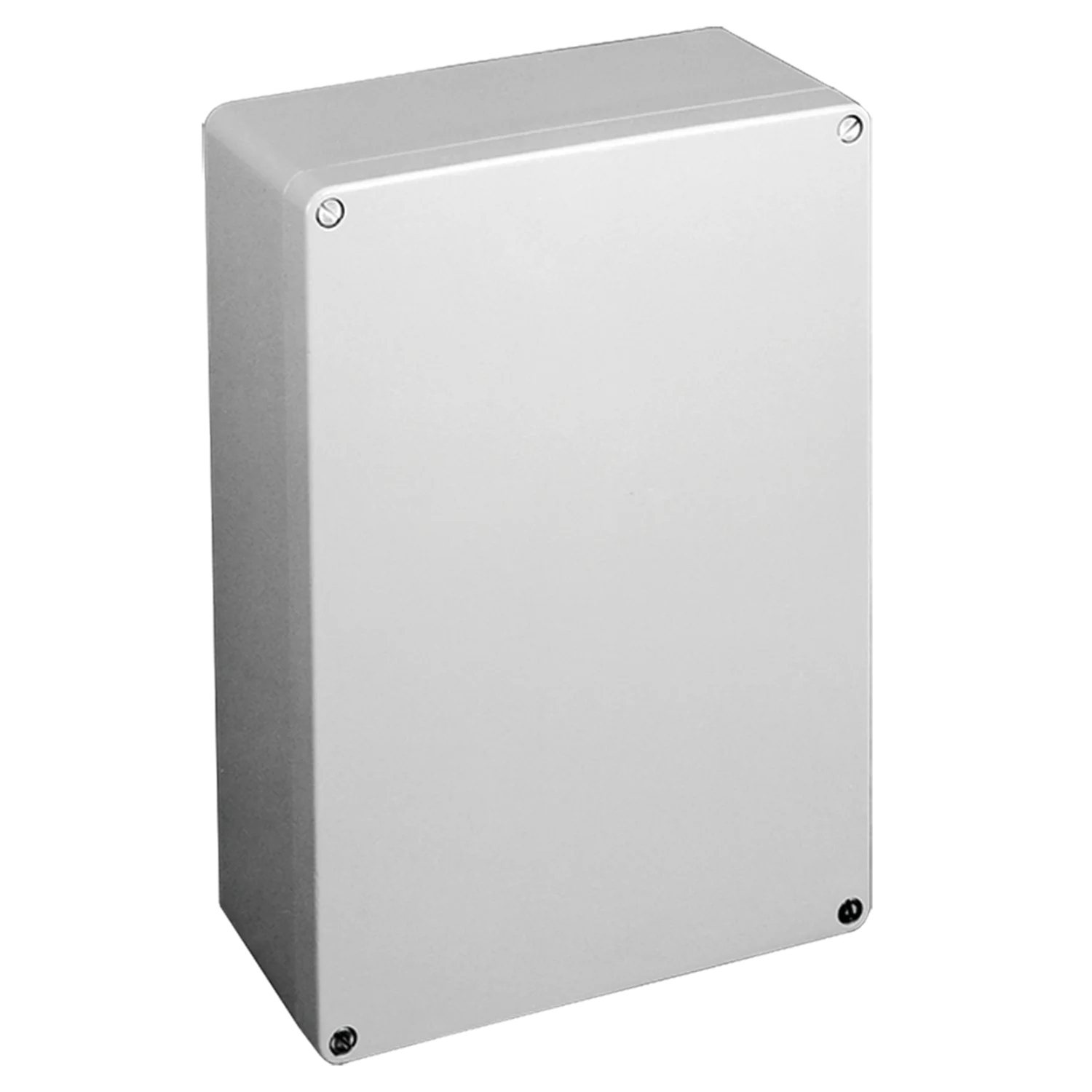

Hoffman CCA36169 Compact Series Enclosure 360x160x90mm

Product Description

The HOFFMAN CCA36169 compact series enclosure is designed for indoor or outdoor applications, protecting components and controls in corrosive environments. Constructed from cast aluminum, it features stainless steel cover screws and grounding screws. The enclosure has a RAL 7042 gray finish inside and out.

• Cast Aluminum material
• No welded seams or sharp corners
• Stainless steel captivated cover screws placed outside sealed area

Product Highlights

Protects components and controls in corrosive environments with stainless steel hardware and seamless gasket.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: CCA36169

Technical Specifications

• Article Number: 66670
• Height: 14.17in
• Width: 6.3in
• Depth: 3.54in
• Material: Aluminum
• Finish: Powder Coated
• Color: Gray
• Color Code: RAL 7042
• Thickness: 0.16in
• Mounting: 4.33 x 13.39in
• Weight: 5.7lb
• UPC: 783510666705
• Packing Quantity: 1
• UNSPSC Code: 31260000
• Approximate Depth: 3.5 in
• Approximate Width: 6.3 in
• Brand: nVent HOFFMAN
• Cover Locking: Screw
• Cover Mounting: Lift-Off
• Enclosure Mounting: Wall Mount
• IP Rating: IP66
• Manufacturer Part Number: CCA36169
• Series: CCA Series
• Type: Box-Lid
• IP/NEMA Rating: IP66, NEMA 4X, NEMA 4
• Knockouts: No
• Mounting Type: Wall
• Standard: CSA File No. 42186: Type 4, 4X, 12, 13,IEC 60529, IP66,NEMA/EEMAC Type 4, 4X, 12, 13,UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
• Sub Brand: COMPACT
• 12-Digit UPC: 783510666705
• GTiN: 00783510666705
• Product UPC: 78351066670
• Length: 14.1 Inch
• Height (mm): 360 mm
• Width (mm): 160 mm
• Depth (mm): 90 mm
• Thickness (mm): 2 mm
