Hoffman C8C20 Consolet Enclosure Type 12, 8.00x20.00x7.09

Product Description

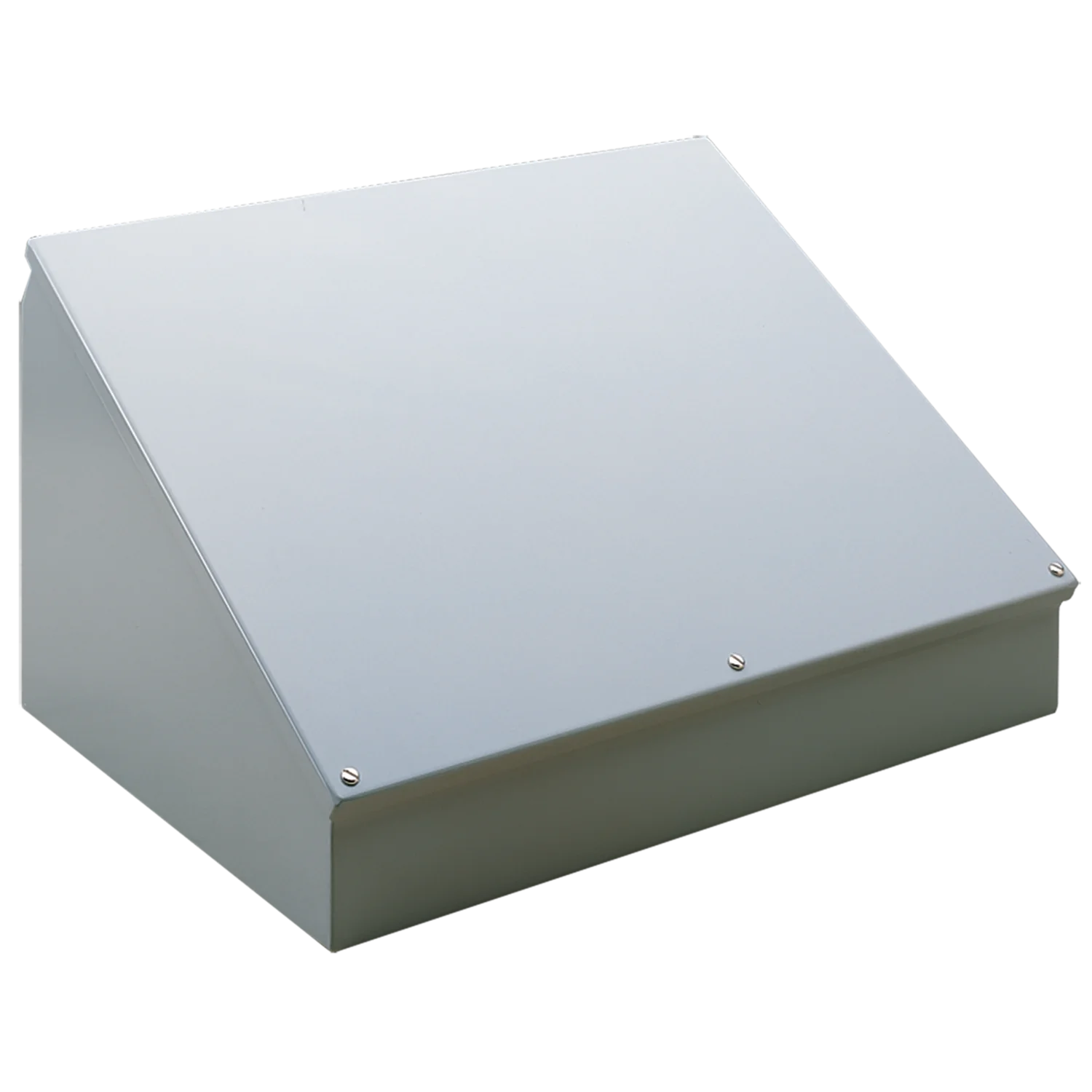

The HOFFMAN C8C20 consolet enclosure is ideal for mounting small control or instrumentation devices where access requires a 30- or 60-degree surface. This Type 12 enclosure can be mounted on either of two sides for placement on desktops, pedestals, or other flat surfaces to achieve maximum flexibility. It provides protection from dust, dirt, oil, and water.

• Can be positioned on either of two sides to provide a 30- or 60-degree surface access
• Seams continuously welded and ground smooth
• No holes or knockouts

Product Highlights

The HOFFMAN C8C20 consolet enclosure features captivated cover screws, a bonding provision on the cover, and an oil-resistant gasket. Pre-installed weld nuts allow for fast panel attachment.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: C8C20
• Country of Origin: Mexico

Technical Specifications

• Article Number: 59510
• Height: 8in
• Width: 20in
• Depth: 7.09in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• UPC: 783510595104
• EAN: 8713574254091
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: C5
• ECCN: EAR99
• Country of Origin: MX - Mexico
• UNSPSC: 39121323
• NEMA Rating: 12, 13
• Application: Industrial, Small Control Devices/Instrumentation Devices
• IP/NEMA Rating: IP65, NEMA 12
• Type: Control Consolet
• Control Panel Angle: 30 deg or 60 deg
• Control Panel Mounting: Hinged, Screw
• Mounting: Pedestal or Flat Surface
