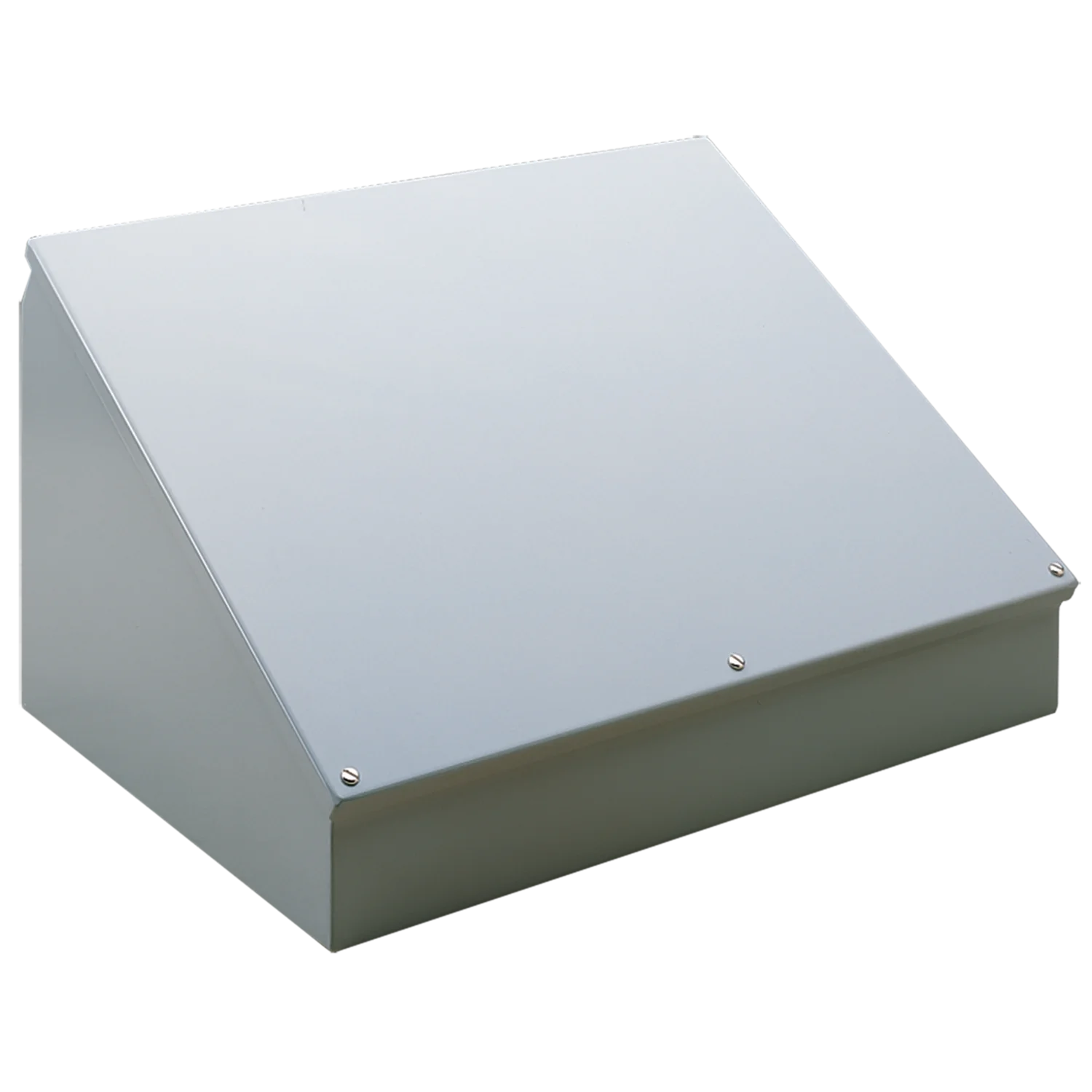

Hoffman C12C20 Consolet Enclosure Type 12, 12.00x20.00x9.09

Product Description

The HOFFMAN C12C20 consolet enclosure is ideal for mounting small control or instrumentation devices where the desirable access requires a 30- or 60-degree surface. These enclosures can be mounted on either of two sides for placement on desktops, pedestals or other flat surfaces to achieve maximum flexibility. Constructed of mild steel with continuously welded and ground smooth seams.

• Can be positioned on either of two sides to provide a 30- or 60-degree surface access
• Seams continuously welded and ground smooth
• No holes or knockouts

Product Highlights

The HOFFMAN C12C20 consolet enclosure is designed for desktop, pedestal, or surface mounting of control and instrumentation devices.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: C12C20
• Country of Origin: United States

Technical Specifications

• Article Number: 59880
• Height: 12 Inch
• Width: 20 Inch
• Depth: 9.09 Inch
• Material: Steel
• Finish: Polyester Powder Painted
• Color: ANSI 61 Gray
• Color Code: ANSI 61
• Thickness: 14ga
• UPC: 783510598808
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: C5
• UNSPSC: 39121323
• Approval: UL 508A, CUL, CSA C22.2
• Nema Rating: NEMA 12/13, IP65
• Mounting: Desktop, Pedestal, Surface
• Material Specification: 14 Gauge
• Type: Control
• Control Panel Angle: 30/60 Degree
• Control Panel Width: 20.28 Inch
• Control Panel Height: 12.28 Inch
• Control Panel Mounting: Continuous Hinged with Screw, Gasketed
• Model: C12C20
• Country of Origin: United States
