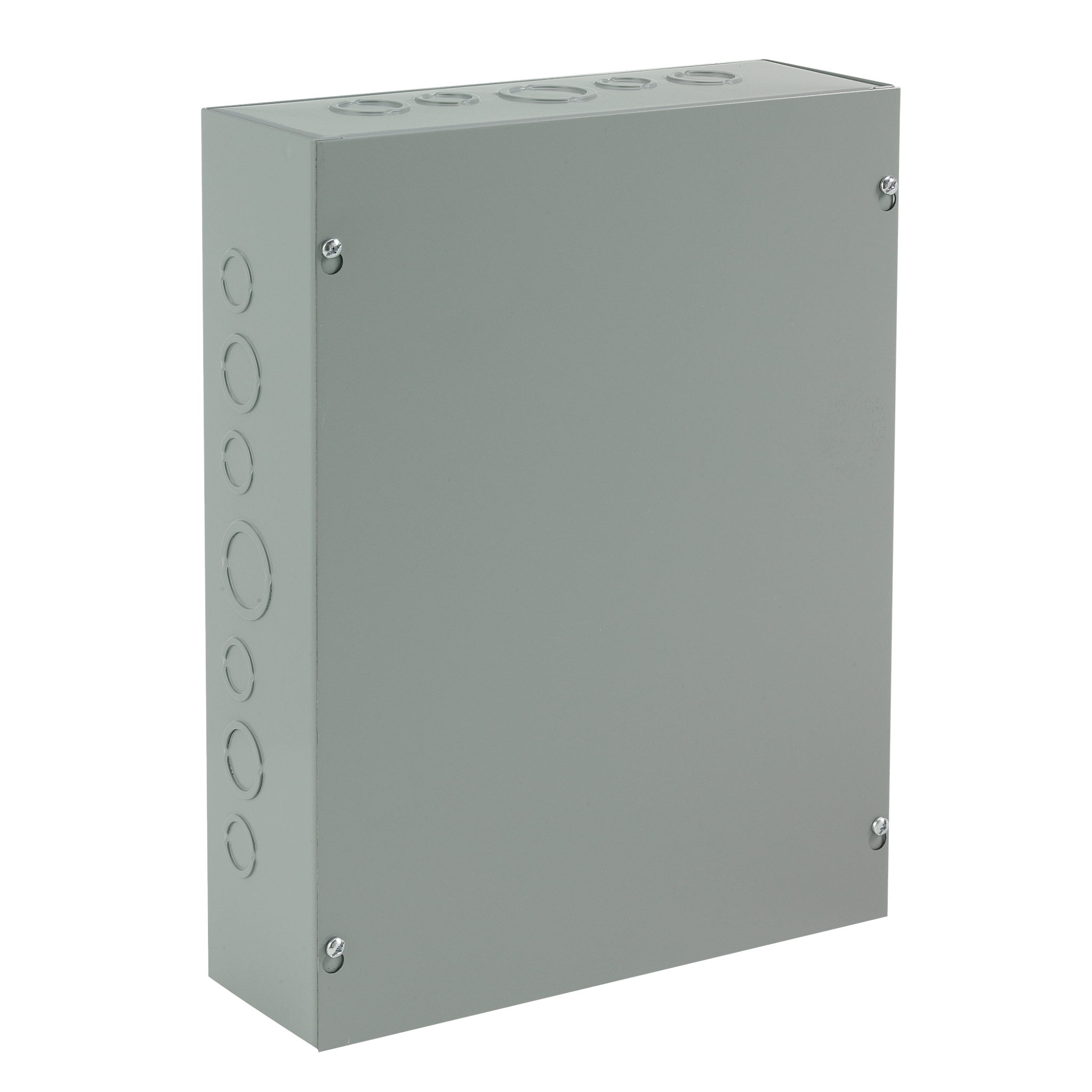

Hoffman ASE10X8X4 screw-cover 10x8x4

Product Description

The Hoffman ASE10X8X4 screw-cover enclosure is used in commercial and general industrial applications that require a junction or pull box. It is available in painted or galvanized finishes, with or without knockouts, and in a wide range of sizes. For flush installations, order flush covers and door frames separately.

• 16, 14 or 12 ga steel or plated steel
• Flat, removable covers fastened with plated steel screws
• For flush installations, order flush covers and door frames separately

Product Highlights

The Hoffman ASE series screw cover boxes serve as surface-mounted junction boxes or switch boxes. Mounting holes are located on the back of the box.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: ASE10X8X4
• Country of Origin: MX

Technical Specifications

• Application: Commercial
• Brand Name: Hoffman
• Color: Gray
• Country of Origin: MX
• Cover_Type: Screw
• Enclosure: NEMA 1, IP30
• Knockouts: True
• Material: Steel
• NEMA_Rating: NEMA 1/IP30
• Series: A90P1
• Size: 10.00x8.00x4.00 in
• Special Features: 16, 14 or 12 ga steel or plated steel Flat, removable covers fastened with plated steel screws For flush installations, order flush covers and door frames separately Mounting holes on back of box Optional flush covers Optional flush-mounted door frame available Provision for grounding Unique keyhole screw slots in the cover Various sizes of easy to remove concentric knockouts on all four sides of standard boxes with knockouts
• Standard: UL 50, 50E Listed; Type 1; File No. E27525; cUL Listed per CSA C22.2 No 40; Type 1; File No. E27525; NEMA/EEMAC Type 1; IEC 60529, IP30
• Style: Painted
• Sub_Brand: Hoffman
• Type: Screw-Cover, Type 1
• Article Number: 43050
• Height (H): 10in
• Width (W): 8in
• Depth (D): 4in
• Finish: Painted
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Cover Screw Quantity: 4
• Knockout Pattern Along A Sides: F-G-H-I
• Knockout Pattern Along B Sides: F-G-H-I
• UPC: 783510430504
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Enclosure Width: 8 in
• Enclosure Height: 10 in
• Enclosure Depth: 4 in
• Enclosure Rating: NEMA 1
• Mount: Screw
• Cable Entry: Knockout
• IP Rating: 30
• Mounting Type: Wall
• Gangable: Single Door, Four Lock
• Brand: nVent Hoffman
• Length: 10.1 Inch
• Model: ASE10X8X4
