Hoffman AHE8X6X4 Pull Box, Hinged Cover, Steel, 8 in

Product Description

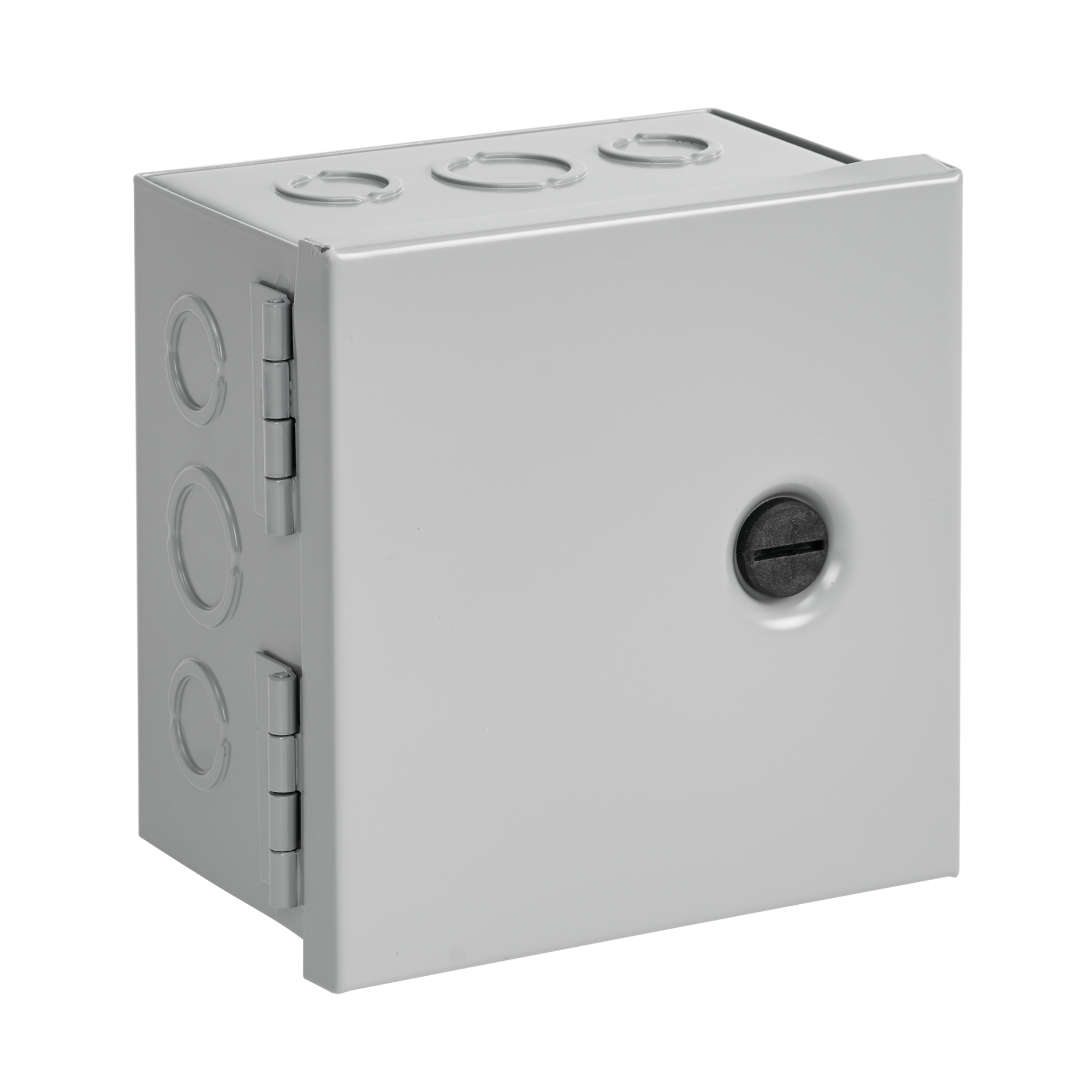

The Hoffman AHE8X6X4 pull box features a hinged cover and is constructed of steel. With dimensions of 8x6x4 inches, this Type 1 enclosure has a recessed, slotted flush latch for security and knockouts on all four sides. It is suitable for a wide variety of applications.

• Butt hinges on door
• Various sizes of easily removable concentric knockouts on all four sides
• Mounting holes on back of box

Product Highlights

The Hoffman AHE8X6X4 pull box is a steel enclosure with a hinged cover, knockouts, and mounting holes.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: AHE8X6X4
• Country of Origin: United States

Technical Specifications

• Article Number: 51060
• Height: 8in
• Width: 6in
• Depth: 4in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 16ga
• Knockout Pattern Along A Sides: F-G-H-I
• Knockout Pattern Along B Sides: B-C-D
• UPC: 783510510602
• Bulletin Number: A90HC
• Brand: nVent HOFFMAN
• Configuration: With Knock-Outs
• Cover Locking: Quarter-Turn Latch
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• IP Rating: IP30
• Manufacturer Part Number: AHE8X6X4
• NEMA Rating: 1 Indoor
• Numeric ID: 2510415
• Series: AHE Series
• Type: Junction Box
• UPC Code: 78351051060
• Cover: Butt Hinged
• Knockout: (6) 3/4 to 1", (8) 1/2 to 3/4" Knockout Cable Entry
• Mount: Wall Mount
• Coating: Polyester Powder Coated, Gray
• Application: Controls and Drives; Power Distribution
• ARRA Compliant: C
• Assemble to Order: No
• Buy American Compliant: C
• Catalog Number: AHE8X6X4
• EU RoHS Indicator: NEW
• Harmonization Tariff Schedule Code: 8538100000
• Interchangeable: No
• Modification Services: Yes
• Package Quantity: 1
• UNSPSC: 39121303
• UPC 11: 78351051060
• UPC 12: 783510510602
• Manufacturer: HOFFMAN ENCLOSURES
