Hoffman AEKDF Electrical Interlock Defeater 120VAC

Product Description

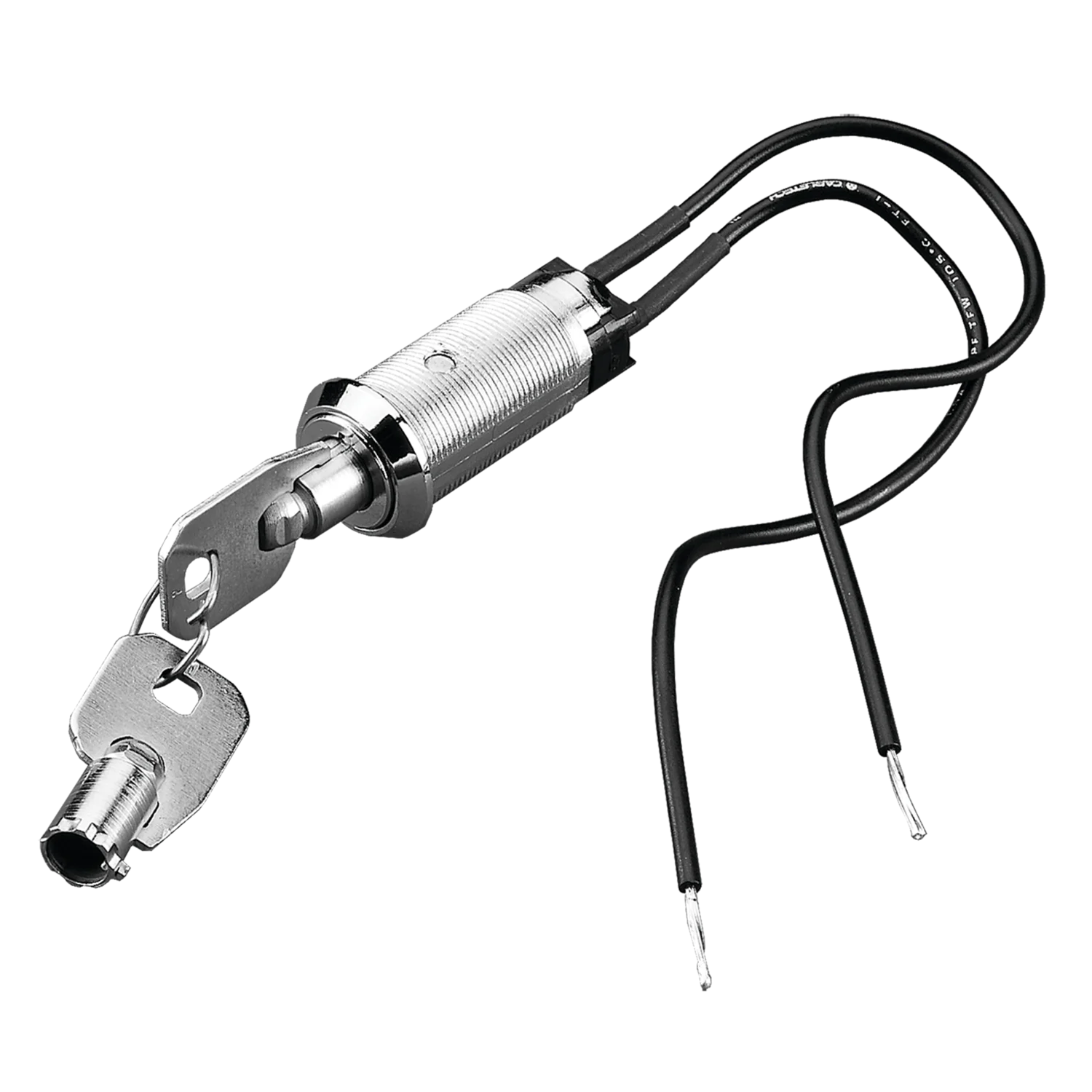

The HOFFMAN AEKDF Electrical Interlock Defeater enables authorized personnel to enter an enclosure while the enclosure contents are energized. This defeater is a key-operated momentary contact switch with contacts normally closed. Turning the key disengages the circuit to the electrical interlock. Can be used with all 110/120 volt HOFFMAN Electrical Interlocks.

• Can be used with all 110/120 volt HOFFMAN Electrical Interlocks
• A relay must be used in conjunction with switch for 220/240 volt and 440/480 volt applications
• Mounting hardware and instruction are included

Product Highlights

The HOFFMAN AEKDF interlock defeater provides a safety lockout on electrical enclosures while the equipment is energized.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: AEKDF
• Country of Origin: US

Technical Specifications

• Article Number: 26040
• Material: Mild Steel
• Finish: Chrome Plated
• A @ 120 V/60 Hz Normal Inrush: 10 MaxA
• A @ 110 V/50 Hz Normal Inrush: 10 MaxA
• UPC: 783510260408
• EAN: 8713574243866
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A80
• Amperage Rating: 10
• Application: Industrial
• Brand Name: Hoffman
• Country of Origin: US
• Series: A80
• Special Features: A relay must be used in conjunction with switch for 220/240 VAC and 440/480 VAC applications Defeater is a key operated momentary contact switch with contacts normally closed Enables authorized personnel to enter an enclosure while the enclosure contents are energized Turning the key disengages the circuit to the electrical interlock
• Sub_Brand: Hoffman
• Type: Electrical Interlock Defeater
• Voltage Rating: 120
• Frequency: 60 Hz
• Inrush Current @ 50 Hz: 10 A
• Inrush Current @ 60 Hz: 10 A
• Normal Current @ 50 Hz: 10 A
• Normal Current @ 60 Hz: 10 A
• Voltage: 120V AC
• Amperage: 10 Amp
• Applications: Provides Positive Internal Safety Lockout on Electrical Enclosures While the Equipment is Energized
• Used With: 110/120 V Hoffman Electrical Interlocks, One-Door Type 4 and 4X, Two-Door Type, One-Door Type 12 Enclosures, Large Size Junction Boxes
• Height: 3/4 Inch
• Length: 6 Inch
• Width: 5.00 in
• Manufacturer: NVENT HOFFMAN
• Manufacturer Part No: AEKDF
• Newark Part No.: 06B4568
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
• UNSPSC Code: 31260000
• Unit of Measure: EA
• UPC Code: 78351026040
