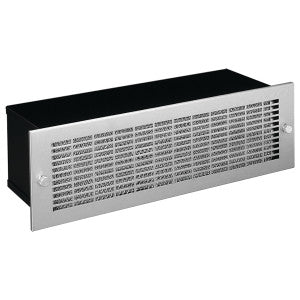

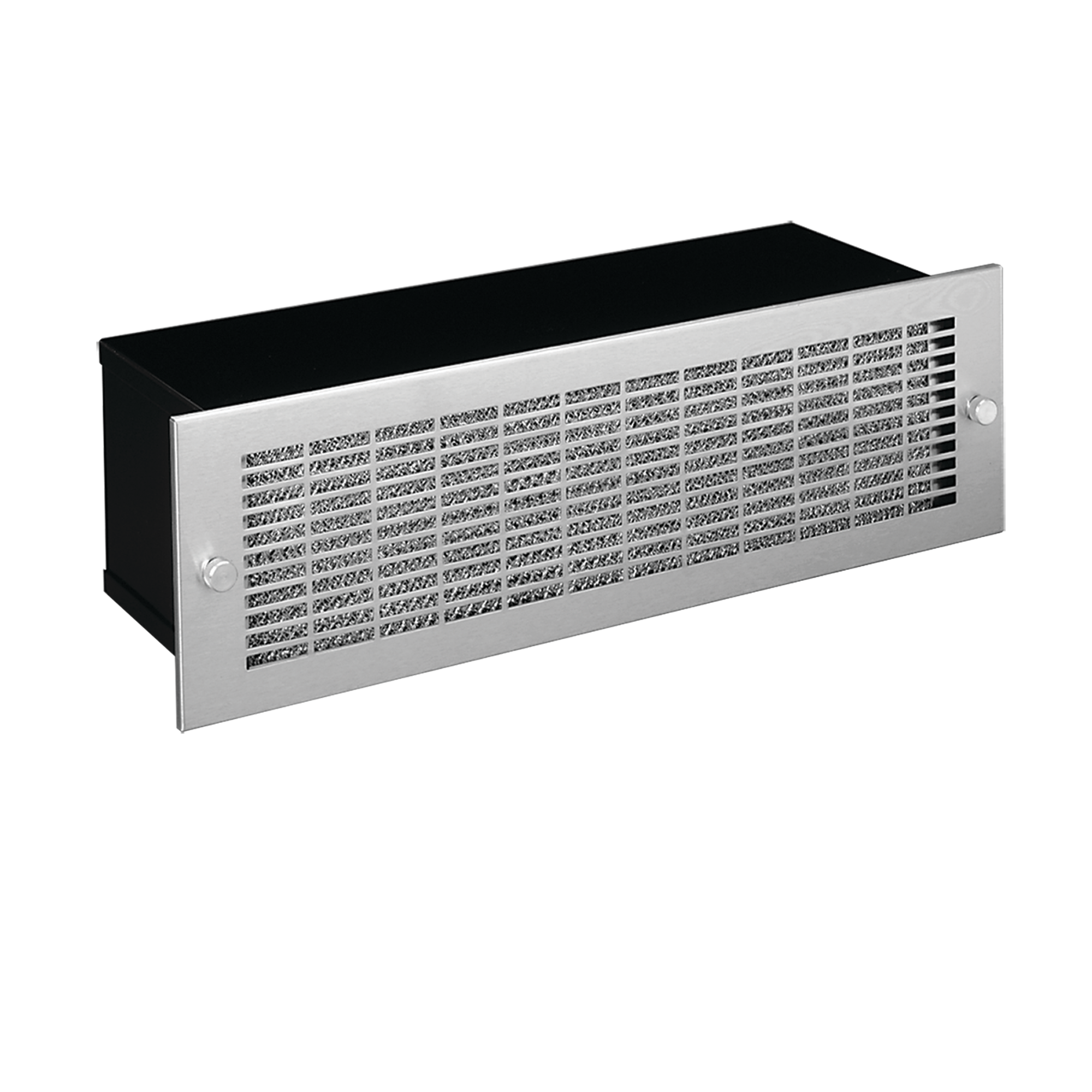

Hoffman ADB275 Rack-Mountable Fan Package 275CFM 115V

Product Description

The HOFFMAN ADB275 blower fan package provides maximum cooling in minimal space, utilizing 115V AC, 60/50 hertz, single-phase input power. Engineered for enclosure or 19-inch rack applications, this fan package is designed for 20,000 hours of continuous operation when properly powered.

• Intake grille is easily removed with two captive thumbnuts
• Washable aluminum filter
• Single phase motor powers the statically balanced blower

Product Highlights

This rack-mountable fan package is ideal for controls, drives, and power distribution applications. It features a brushed finish and is constructed from stainless steel 304 and mild steel.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: ADB275
• Country of Origin: US - United States

Technical Specifications

• Article Number: 22270
• Airflow: 275ft 3/min
• Nominal Voltage: 115V
• Height: 5.75in
• Width: 19in
• Depth: 7.25in
• Operating Temperature: 298 F max
• Max Current: 1.2A
• Voltage AC: 100V
• Material: Stainless Steel 304; Mild Steel
• Finish: Brushed
• Thickness: 20ga
• UPC: 783510222703
• Packing Quantity: 1
• Airflow Rate: 275
• Amperage: 1.2 Amp
• Applications: Controls and Drives; Power Distribution
• Max Temperature: 298 degrees F
• Motor Type: AC Motor
• Standard: (blower Motor Only),CSA,EIA RS-310-D,File No. E61997,UL Component Recognized
• Type: Open-Loop Cooling
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510222703
• Product UPC: 78351022270
• Length: 21-1/4 Inch
• ECCN: EAR99
• UNSPSC: 40101604
