Hoffman A866DL Enclosure Junction Box 8x6x6

Product Description

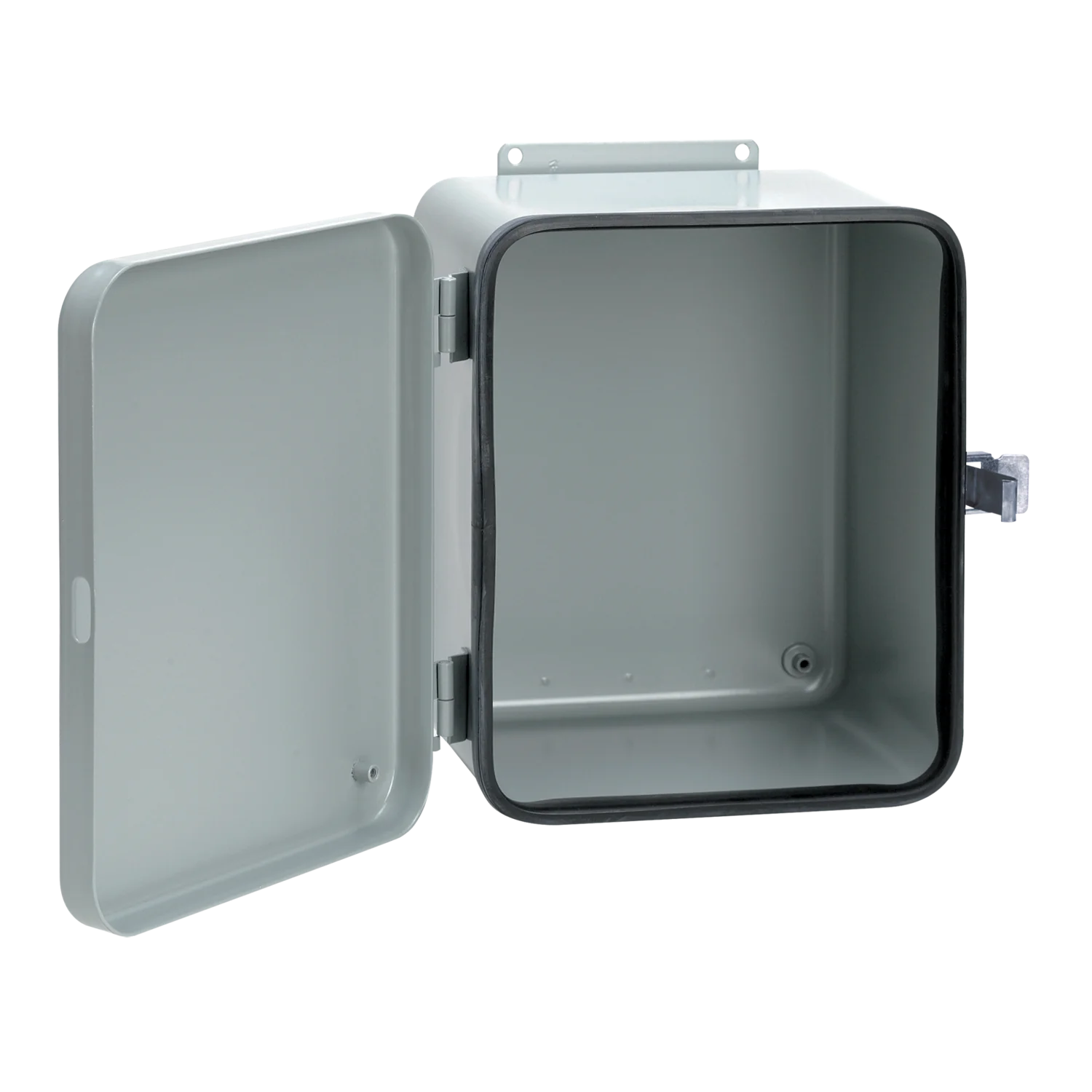

The HOFFMAN A866DL enclosure features a quick-release latch, mounting brackets, rounded corners and an attractive finish. This enclosure can be used in applications where panel or cover mounting of controls is desired and is ideal for protecting equipment from indoor contaminants.

• Drawn enclosure with no welded seams or sharp corners
• Removable door with unique lift-off hinges
• External wall-mounting brackets for easy installation

Product Highlights

The HOFFMAN A866DL is a steel enclosure junction box with a contoured removable hinge cover and quick-release latch. It is designed for indoor use and provides a NEMA Type 12 rating.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A866DL
• Country of Origin: MX

Technical Specifications

• Article Number: 60030
• Height (H): 8in
• Width (W): 6in
• Depth (D): 6in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness (T): 16ga
• Mounting (G x H): 8.50 x 4.12in
• Overall Dimensions (L x W): 9.00 x 7.12in
• UPC: 783510600303
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Enclosure Hinge Type: Standard Hinge
• Enclosure Interior Color: Gray
• Enclosure Composition: Painted Steel
• Enclosure Environment Rating: Indoor
• Enclosure Door Type: Solid
• Enclosure Mount Type: Wall Mount
• Component: Steel Enclosure
• Enclosure Number of Doors: 1 Door
• Enclosure NEMA Rating: NEMA Type 12
• Manufacturer: Hoffman
• Application: Featuring a quick-release latch, mounting brackets, rounded corners and an attractive finish, this enclosure can be used in applications where panel or cover mounting of controls is desired. Ideal for protecting equipment from indoor contaminants.
• Brand Name: Hoffman
• Country of Origin: MX
• Cover_Type: Removable Hinged
• NEMA_Rating: NEMA 12/IP65
• Series: A51
• Size: 8.00X6.00X6.00 in
• Special Features: Bonding provision on door Cover is removable and interchangeable Drawn 16 ga steel, no welded seams or sharp corners External welded on mounting brackets for easy installation No welded seams or sharp corners Oil-resistant gasket Removable door with unique lift-off hinges Unique lift-off hinges Weldnuts provided for mounting optional panels and terminal block kits
• Standard: UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, IEC 60529, IP65
• Sub_Brand: Hoffman
• Type: Contoured
• NEMA: 12, 13
• Material Thickness: 16 Gauge
• Cover Mounting: Lift Off Hinge
• Cover Latching: Quick-Release
• Cover Type: Solid, Contoured
• Height: 8 in. (203.2mm)
• Width: 6 in. (152.4mm)
• Depth: 6 in. (152.4mm)
• Mounting: Brackets
• Optional Panel: A8P6, A8P6G
