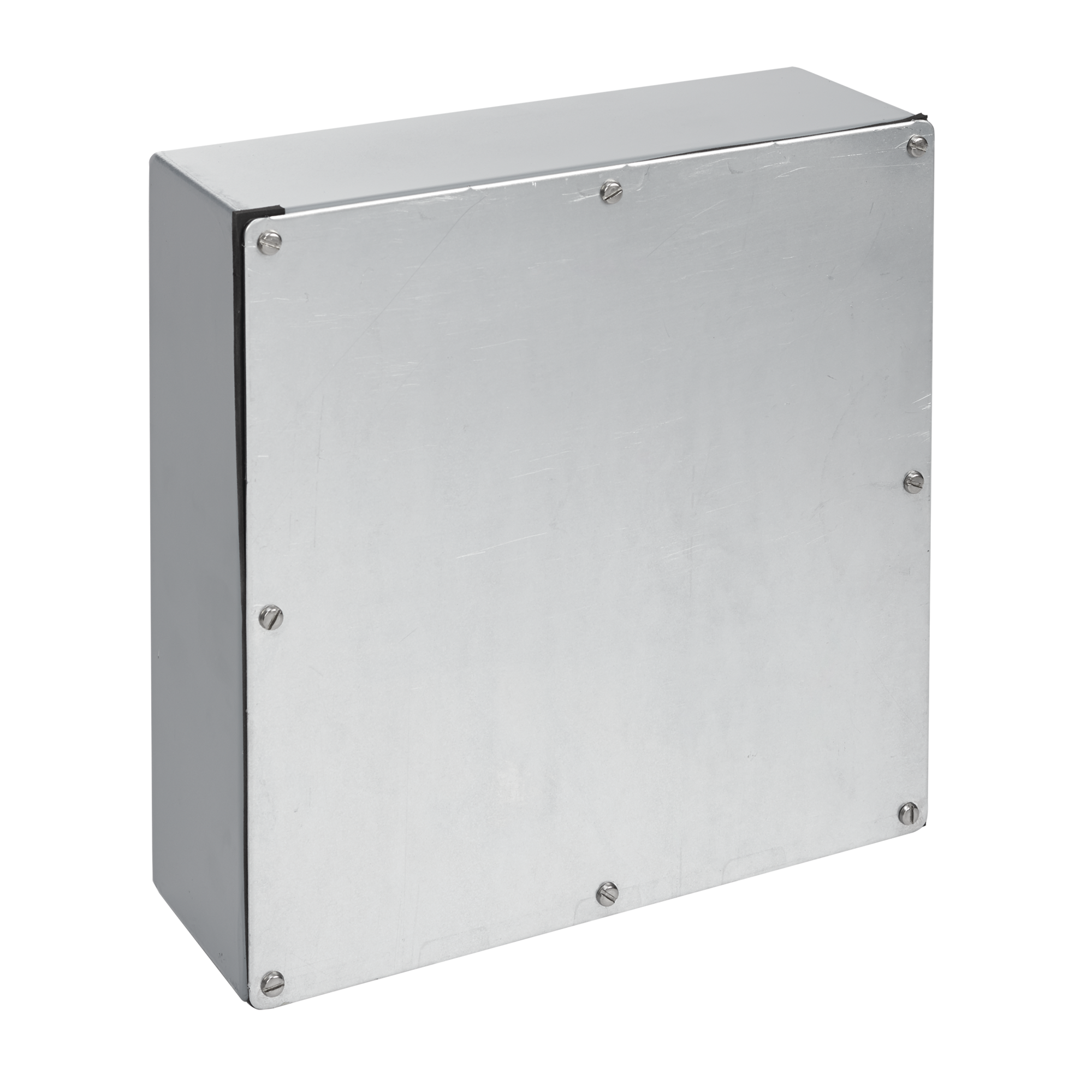

Hoffman A864GSC Screw-Cover Gasketed Type 3, 8.00x6.00x4.00, Galvanized, Steel

Product Description

The HOFFMAN A864GSC is a screw-cover gasketed type 3 enclosure used as a wiring, junction, pull or terminal box in applications subject to windblown dust and/or rain. It measures 8.00x6.00x4.00 inches and is made of galvanized steel.

• Captivated stainless steel cover screws thread into sealed wells
• Oil-resistant gasket and adhesive
• Seams continuously welded and ground smooth

Product Highlights

Ideal for industrial environments, this enclosure provides a secure and protected space for electrical components.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A864GSC
• Country of Origin: Mexico

Technical Specifications

• Article Number: 56100
• Height: 8in
• Width: 6in
• Depth: 4in
• Material: Mild Steel
• Finish: Galvanized
• Body Thickness: 1.9 mm
• Door Thickness: 12ga
• Cover Screw Quantity: 4
• UPC: 783510561000
• Bulletin Number: A90GS
• ECCN: EAR99
• Country of Origin: MX - Mexico
• UNSPSC: 39121303
• NEMA Rating: 3
• Application: Industrial, Wiring, Junction, Pull or Terminal Box
• Type: Screw Cover Enclosure
• Latch: Screw On
• Applications: Power Distribution
• Body Gauge: 14
• Cover Gauge: 12
• Number of Screws: 4
• Size: 8.00x6.00x4.00 in
• Standard: 12,CSA,CUL Listed Per CSA C22.2 No 94,File 42184: Type 4 And 12,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3 And 12 (except For Mounting Provisions),Type 3,UL 508A Listed
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510561000
• Product UPC: 78351056100
• Length: 7.9 Inch
• DISK UNSPSC: 39121303
• IP/NEMA Rating: IP66, NEMA 3R, NEMA 3
• Mounting: Wall
• Category: Boxes
• Packaging: Bulk
• Mfr: Hoffman Enclosures, Inc.
• Part Status: Active
