Hoffman A845JFGR Screw Cover Quick-Release Latch Type 4X, 7.50x4.00x4.90, Fiberglass

Product Description

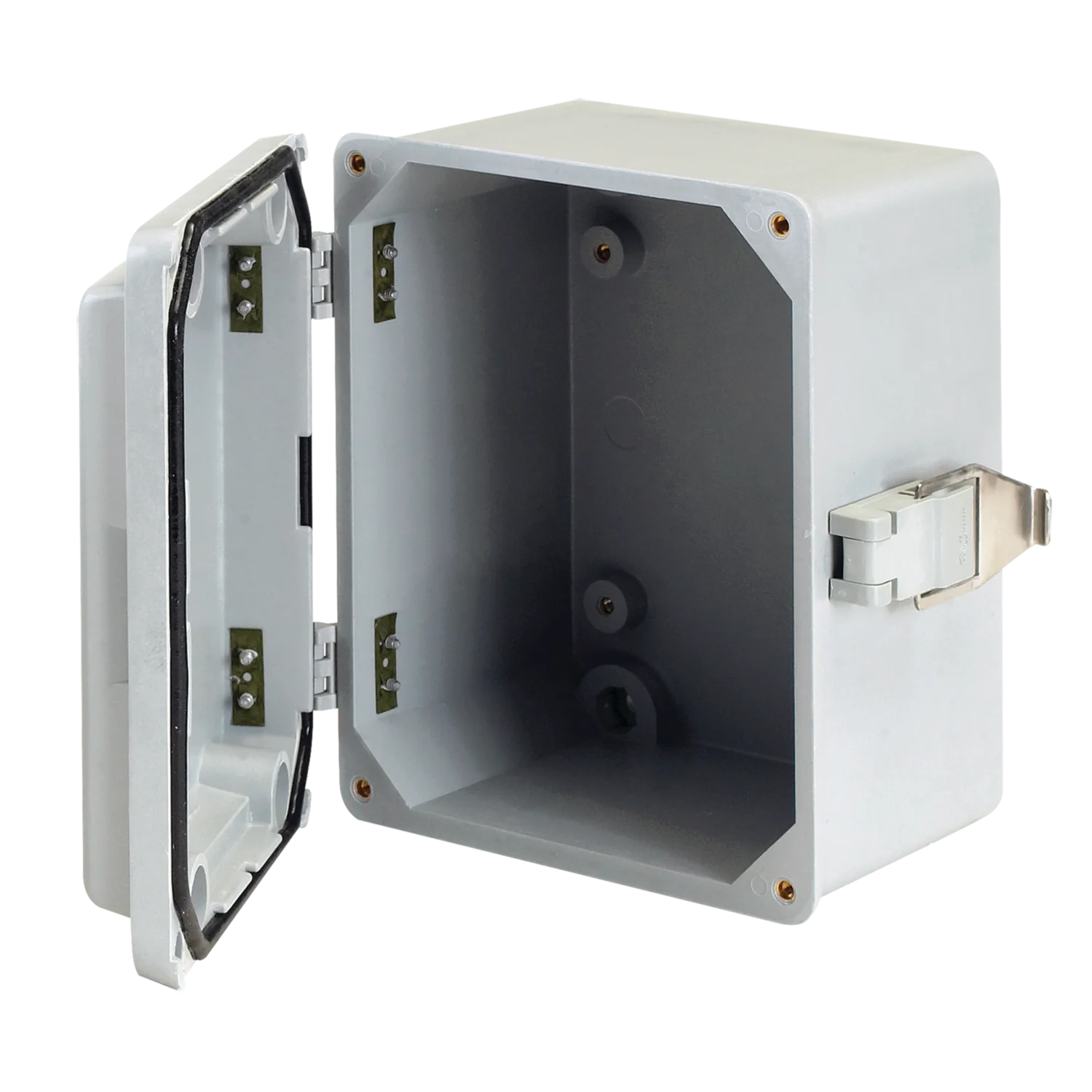

The HOFFMAN A845JFGR is a small enclosure designed to withstand harsh environments and suitable for a broad range of applications. Made from compression-molded fiberglass, it offers excellent temperature and chemical resistance. The enclosure features a simple, traditional non-metallic design with a seamless foam-in-place gasket to ensure a water-tight and dust-tight seal.

• Compression-molded fiberglass material provides excellent temperature and chemical resistance.
• Seamless foam-in-place gasket assures water-tight and dust-tight seal.
• Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws.

Product Highlights

This fiberglass enclosure features a quick-release latch, screw cover, and is ideal for corrosive environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A845JFGR

Technical Specifications

• Article Number: 41140
• Material: Fiberglass/Polyester
• Finish: Smooth Matte
• Color: Light Gray
• Color Code: RAL 7035
• Thickness (T): 0.15in
• Cover Style: Solid
• Latch Type: Screws
• UPC: 783510411404
• Brand: nVent HOFFMAN
• Cover Locking: Screw
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• IP Rating: IP66
• Manufacturer Part Number: A845JFGR
• Special Features: Quick Release Latch
• Type: 1-Solid Door
• Category: Boxes
• Mfr: Hoffman Enclosures, Inc.
• Packaging: Bulk
• Part Status: Obsolete
• Features: PCB Supports, Sealing Gasket
• Container Type: Junction Box
• Ratings: IP66, NEMA 3,3R,4,4X,12,13, UL-508A
• Base Product Number: A845
• Design: Hinged Door, Lid
• Applications: Controls and Drives, Corrosive Environments
• Capacity: 148 cu in
• Cover Type: Hinged, Seamless Foam-In-Place Gasketed, Screw
• Mounting Type: Wall
• Standard: CSA File No. 42186: Type 3R, 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
• Sub Brand: Hoffman
• GTiN: 00783510411404
• Product UPC: 78351041140
• Approval: UL 508A, CUL, CSA C22.2
• Nema Rating: NEMA 3/3R/4/4X/12/13, IP66
• Back Panel: A6P4, A6P4AL
