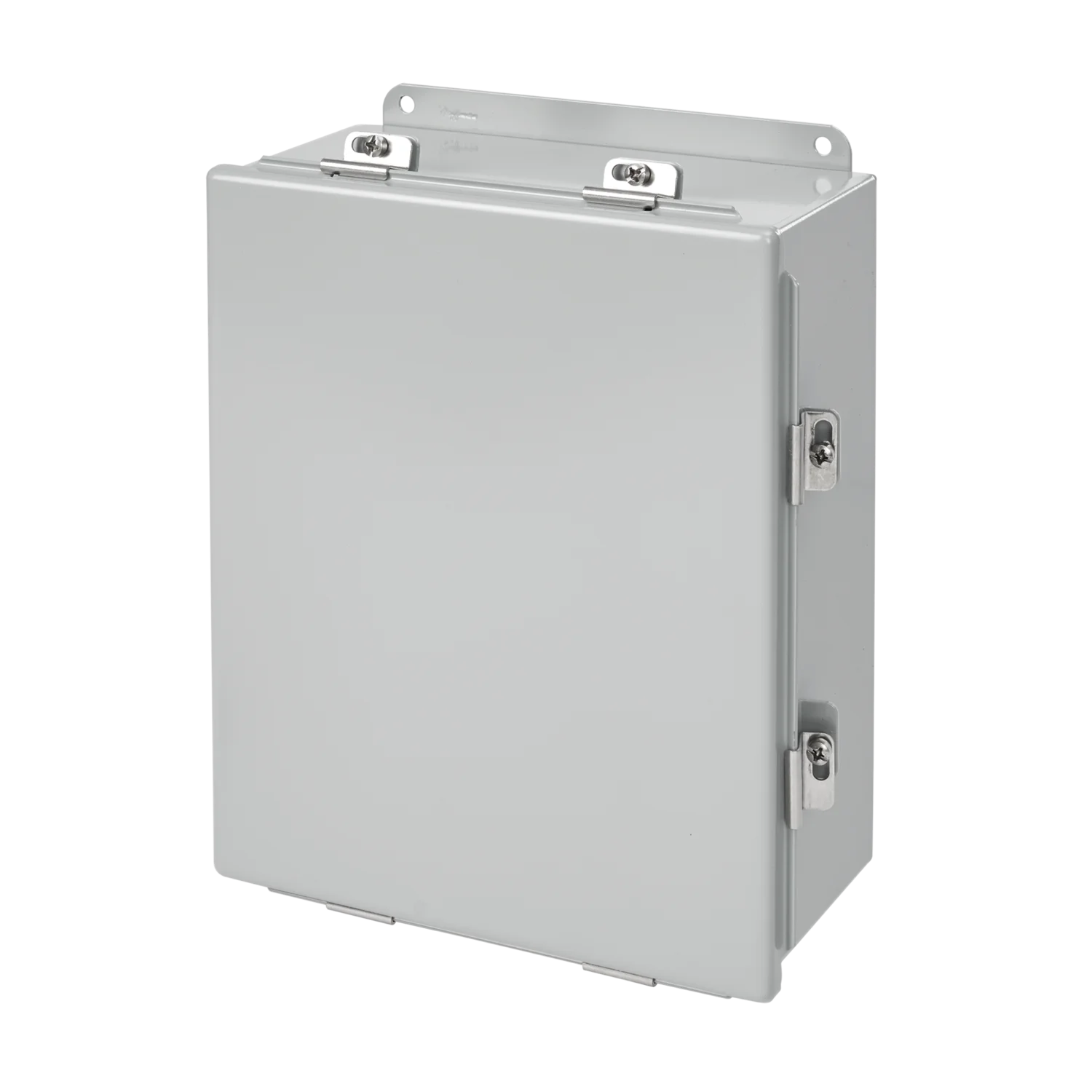

Hoffman A8086CHNF Continuous Hinge Enclosure 8x8x6

Product Description

The HOFFMAN A8086CHNF continuous hinge enclosure with stainless steel clamps provides environmental protection for indoor or outdoor applications. Seams are continuously welded and ground smooth. Features stainless steel screw-down clamps on three sides of the door, a continuous hinge, and a stainless steel hinge pin.

• Seams continuously welded and ground smooth
• Stainless steel screw-down clamps on three sides of door
• Continuous hinge

Product Highlights

This enclosure is ideal for housing and protecting electrical connections with easy access. It measures 8x8x6 inches and is made of steel with a gray powder-coated finish.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A8086CHNF
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 29242
• Height: 8in
• Width: 8in
• Depth: 6in
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Mounting: 8.75 x 6.00in
• Overall Dimensions: 9.50 x 8.94in
• UPC: 783510292423
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A51NF
• ECCN: EAR99
• NEMA Rating: 4
• Application: Indoor, Industrial, Outdoor
• Type: Continuous Hinge Enclosure
• Latch: Screw-Down Clamps
• Approval: UL 50/50E, CUL, CSA C22.2
• Material Specification: 14 Gauge
• Cover Type: Hinged with Clamp
• IP/NEMA Rating: IP66, NEMA 12
