Hoffman A7236SOF19 Swing-Out Rack Mounting Frame 72.06x36.06

Product Description

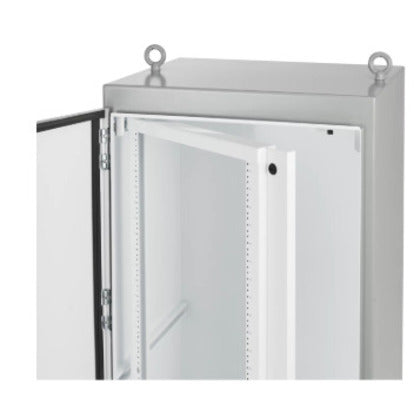

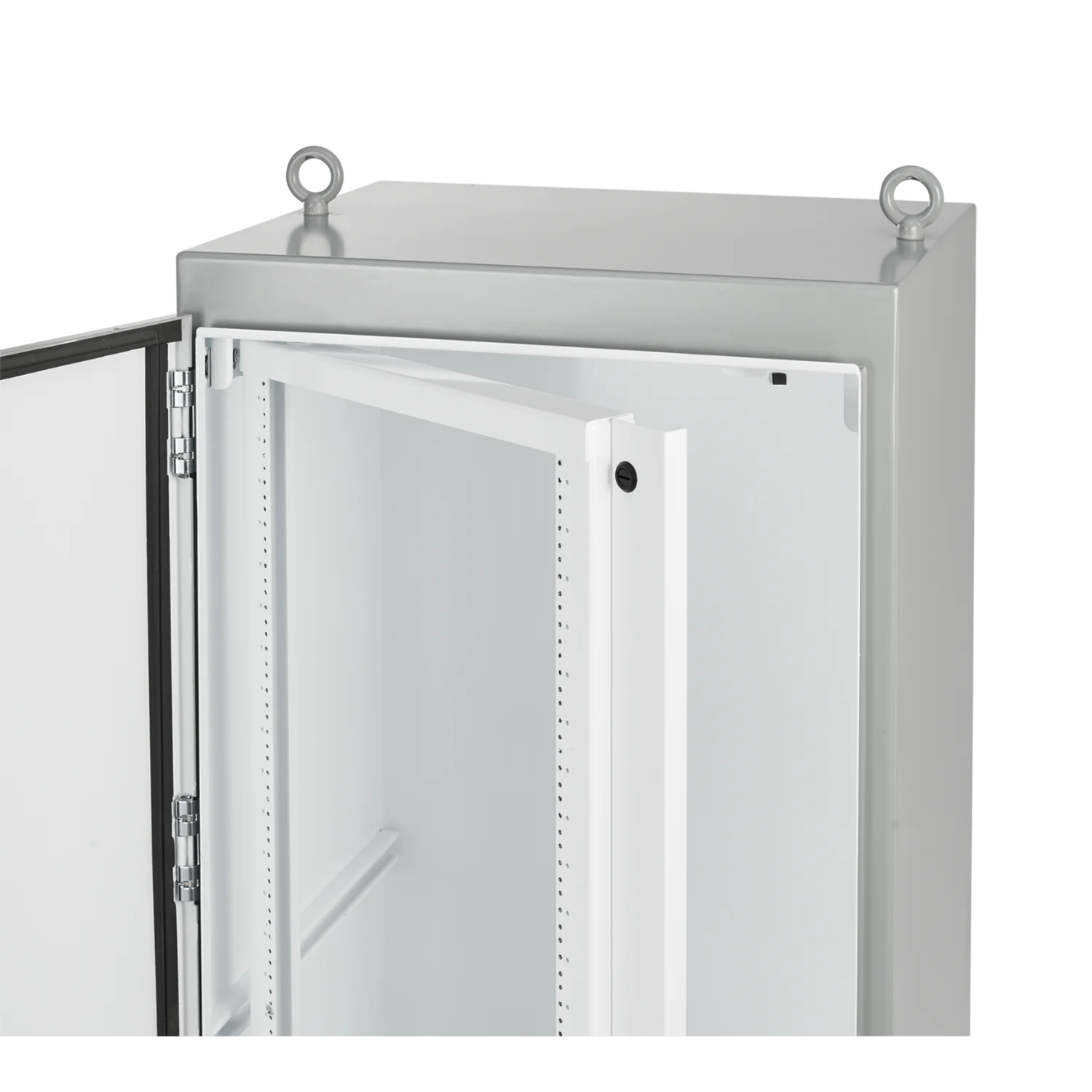

The HOFFMAN A7236SOF19 swing-out rack mounting frame is used for mounting 19-inch (483-mm) rack mounting equipment. The frame pivots within the enclosure to allow access to the back of the mounted equipment. It can be installed in enclosures that are 30.00-in. or 36.00-in. wide. The design features smooth operation and secure positioning anywhere along the horizontal mounting channels. Frame swings from the left side.

• Mounting holes tapped #10-32 thread and spaced per EIA 310-D standard
• Plated mounting hardware is provided
• Full-length 10 gauge swing-out rack mounting frame

Product Highlights

The swing-out rack mounting frame allows easy access to the back of mounted equipment. It is designed for smooth operation and secure positioning.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A7236SOF19
• Country of Origin: US - United States

Technical Specifications

• Article Number: 74410
• Height: 72.06in
• Width: 36.06in
• Material: Mild Steel
• Finish: Powder Coated
• Color: White
• Thickness: 10ga
• For Rack Size: 19in
• Max D: 24.25in
• Weight: 74lb
• UPC: 783510744106
• Bulletin Number: A80
• ECCN: EAR99
• UNSPSC: 39121321
• Application: A80 Series Enclosures
• Use With: 19 in. Racks
• Rack Units: 33
• Color Family: White
• Depth: 24.25 in.
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A7236SOF19
• Type: Frame
• Applications: Controls and Drives; Corrosive Environments; Power Distribution
• Size: fits 72.06x36.06 in
• Sub Brand: Hoffman
• 12-Digit UPC: 783510744106
• GTiN: 00783510744106
• Product UPC: 78351074410
• Length: 62 Inch
• Thickness (mm): 3.4
