NVENT Hoffman A645JFGQRR Hinge Cover Quick-Release Latch Type 4X, 5.50x4.00x5.00, Fiberglass
NVENT Hoffman A645JFGQRR Hinge Cover Quick-Release Latch Type 4X, 5.50x4.00x5.00, Fiberglass

Hoffman A645JFGQRR Hinge Cover Quick-Release Latch Type 4X, 5.50x4.00x5.00, Fiberglass

Brand: NVENT
SKU: A645JFGQRR
Availability: In Stock

Ships same day if ordered by 12 pm
$289.05
$289.05
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

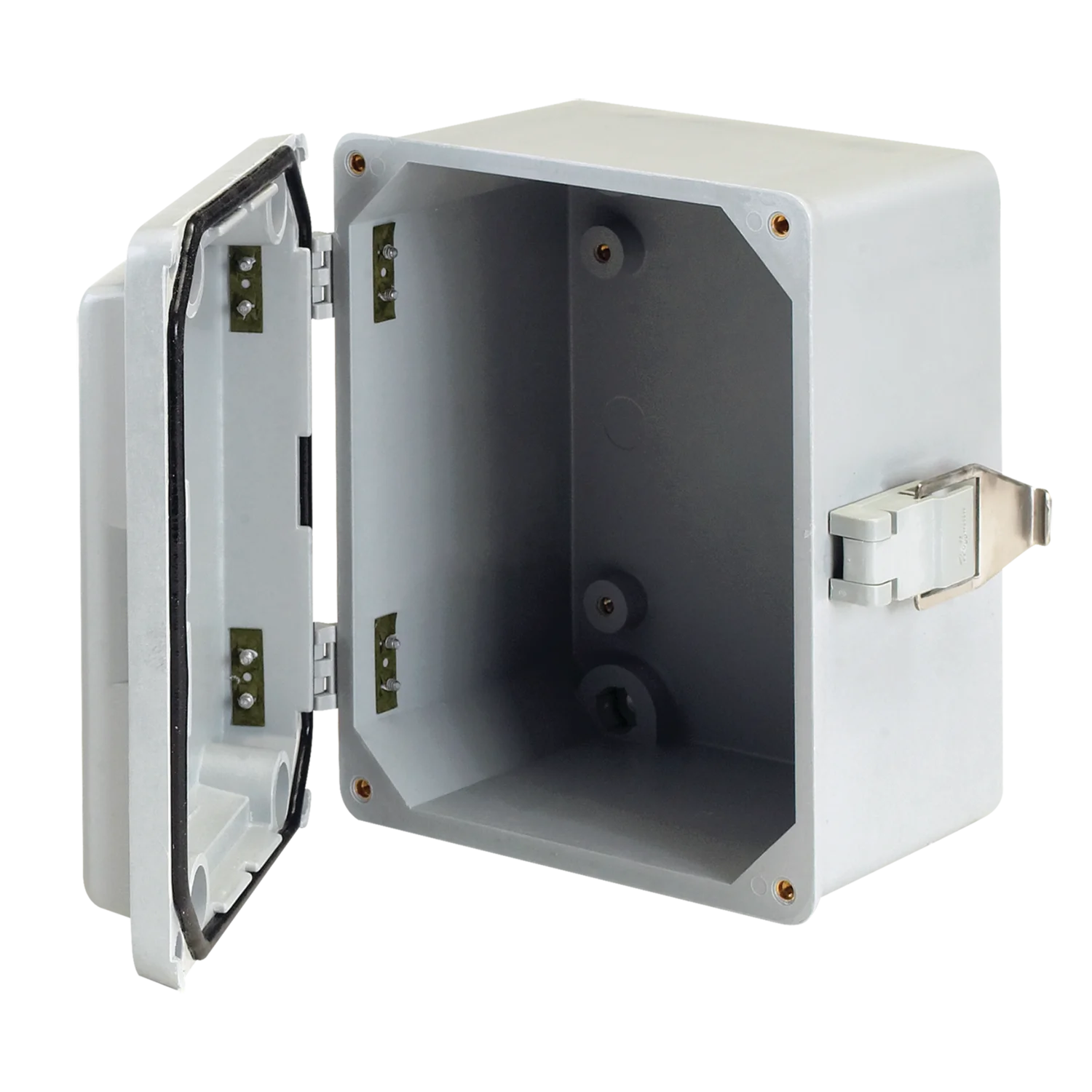

The HOFFMAN A645JFGQRR hinge cover is able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications. The fiberglass material is easily punched, drilled, filed or sawed. Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws.

  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Threaded internal bosses provided for mounting optional panels and terminal block kits

Product Highlights

The HOFFMAN A645JFGQRR hinge cover features corrosion-resistant polyester hinges and latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws. A Type 316L stainless steel padlock hasp is furnished with each enclosure.

Product Information

Standard Information

  • Brand: HOFFMAN
  • Manufacturer Part Number: A645JFGQRR
  • Country of Origin: United States
Technical Specifications
Article Number
41210
Height (H)
6in
Width (W)
4in
Depth (D)
5in
Material
Fiberglass
Finish
Unpainted
Color Code
RAL 7035
Thickness (T)
0.15in
Cover Style
Solid
Latch Type
Quick Release
Latch Quantity
1
UPC
783510412104
Length
5-1/2 in
Lock
Quick Release Latch With Padlock Hasp
Mounting Type
Wall
NEMA Rating
NEMA 4X/IP66
Capacity
110 cu-in
Catalog ID
HOFA645JFGQRR
Cover Type
Hinged With Screw
Depth
5.02 in
Series
A50
Application
For harsh environments
Standard & Approvals
UL 508A, File No. E61997, cUL Listed per CSA C22.2 File No. 94, File No. E61997, RoHS Compliant
Brand
Hoffman
Country of Origin
United States
Approximate Depth
5 in
Approximate Height
6 in
Approximate Width
4 in
Manufacturer Part Number
A645JFGQRR
Type
Junction Box
UPC Code
00783510412104
ECCN
EAR99
UNSPSC
39121324
Cover Mounting
Screw/Hinge
With Knockouts
No
IP Rating
66
Number of Latches
1
Size
5.50x4.00x5.02 in
Standard
CSA File No. 42186: Type 3R, 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
Sub Brand
Hoffman
12-Digit UPC
783510412104
Product UPC
78351041210
Category
Boxes
Packaging
Bulk
Mfr
Hoffman Enclosures, Inc.
Part Status
Obsolete
